14
English

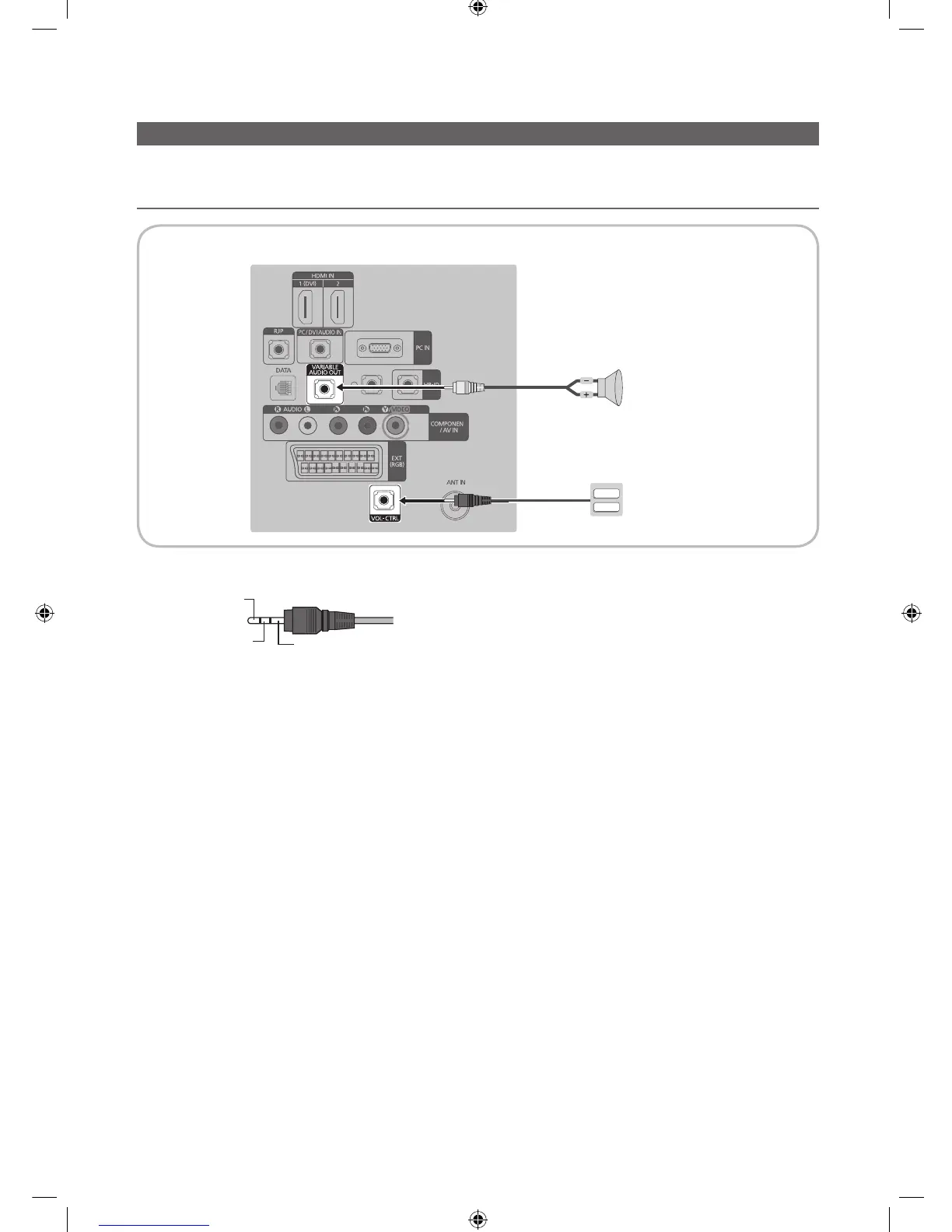

Connecting the Bathroom Speakers
You can connect the Bathroom Speakers in the following method.
¦ Connecting through the Variable Output (available without an external amplifier)
1. Connect the VARIABLE AUDIO OUT port of the TV to the Bathroom Wall Speakers of the hotel.
Speaker +
Speaker -
N/C
2. Connect the VOL-CTRL jack of the TV to the Volume Control Box Switch port on the Bathroom Wall of the hotel.
✎
The maximum speaker output is 4W, 8Ω.
y Installing the Volume Control
– If you configure the Volume Control Box as shown in the figure, you can control the volume of the bathroom speakers.
– The jack that is connected from the Volume Control Box to the TV is a 3.5mm normal Phone jack.
– Volume Control Box switch consists of Tact switch.
✎
Setting the Sub AMP Mode
– 0: Turns the Sub AMP function off (PWM off).
– 1: Determines the Sub volume according to the main volume control. That is, the sub volume is determined according
to the Power On Volume, the Min Volume, and the Max Volume values of the Hotel Mode.
– 2: Determines the volume according to the bathroom control panel setting.
VOL+
VOL
-
TV Rear Panel
Volume Control Box
Speaker
2
1
[Hotel-XC]Install Guide-ENG.indd 14 2012-03-30 �� 1:27:47
