18
English
Connecting the MediaHub HD
Output of any external source connected to MediaHub HD on hotel desk.

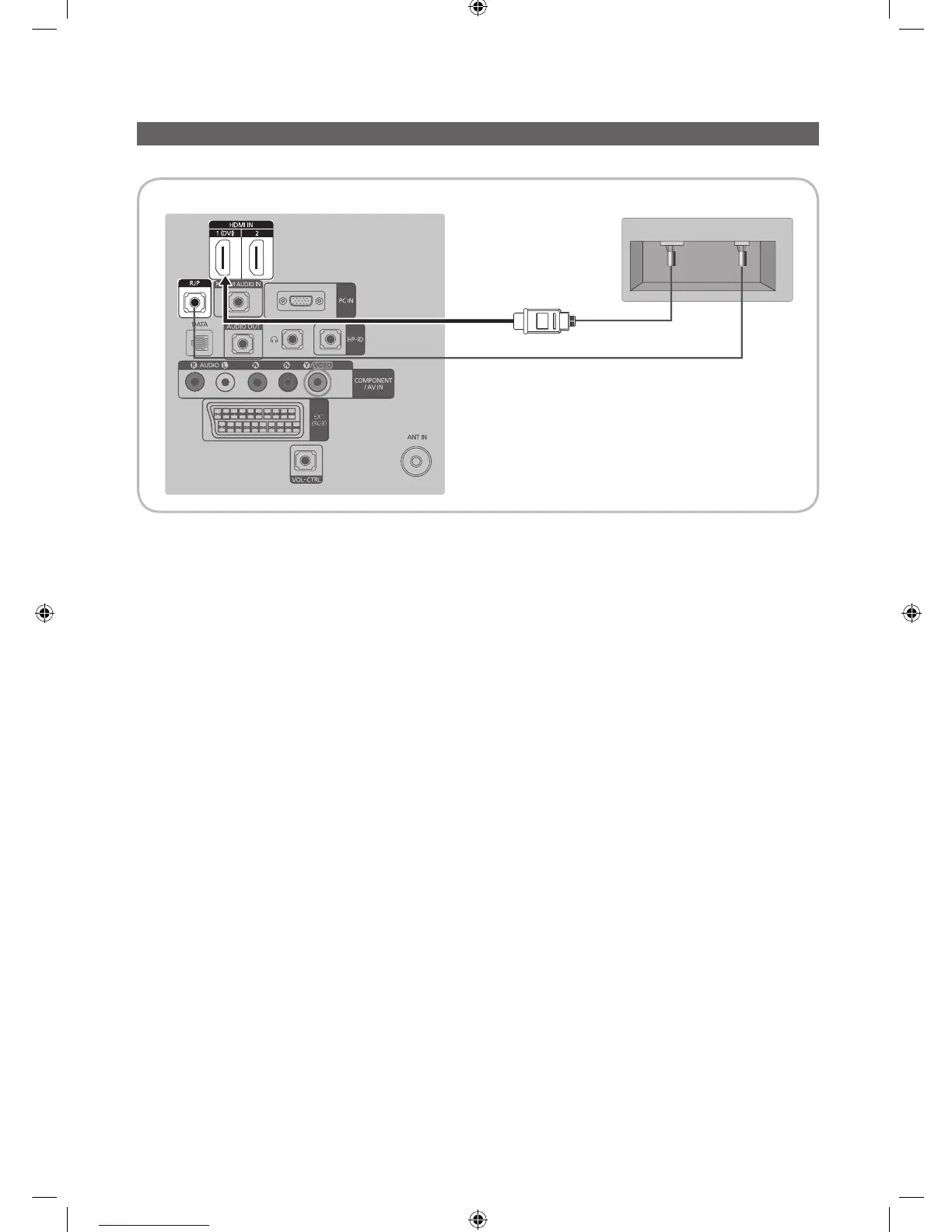

1. Connect the RJP port of the TV and the RS/232 port of the MediaHub HD.
2. Connect the HDMI IN (1(DVI) or 2) port of the TV and the HDMI port of the MediaHub HD. ( 22" model : HDMI IN port )
y MediaHub HD
– The MediaHub HD is a hardware module that has different Audio Video inputs (A/V, Audio, PC, HDMI and USB) and
corresponding outputs. The corresponding output sources are connected from MediaHub to TV. The MediaHub
communicates with the TV via RS232. Hot Plug & Play is a function that allows hotel guests to connect an external
source to the MediaHub. The MediaHub communicates with the TV by sending messages regarding Active/Inactive
sources. The TV will switch to the Active external source.
– You have to connect the HDMI of the MediaHub to the HDMI IN 1(DVI) port of the TV.
– When the TV is on, connect the TV and the RJP within 10 seconds.
y Special features
– PIP
– Auto Detection
HDMI
USB RS/232
TV Rear Panel MediaHub HD Rear
2
HDMI cable
1
RS-232 Data Cable
[Hotel-XC]Install Guide-ENG.indd 18 2012-03-30 �� 1:27:50
