Samsung Electronics 6-3

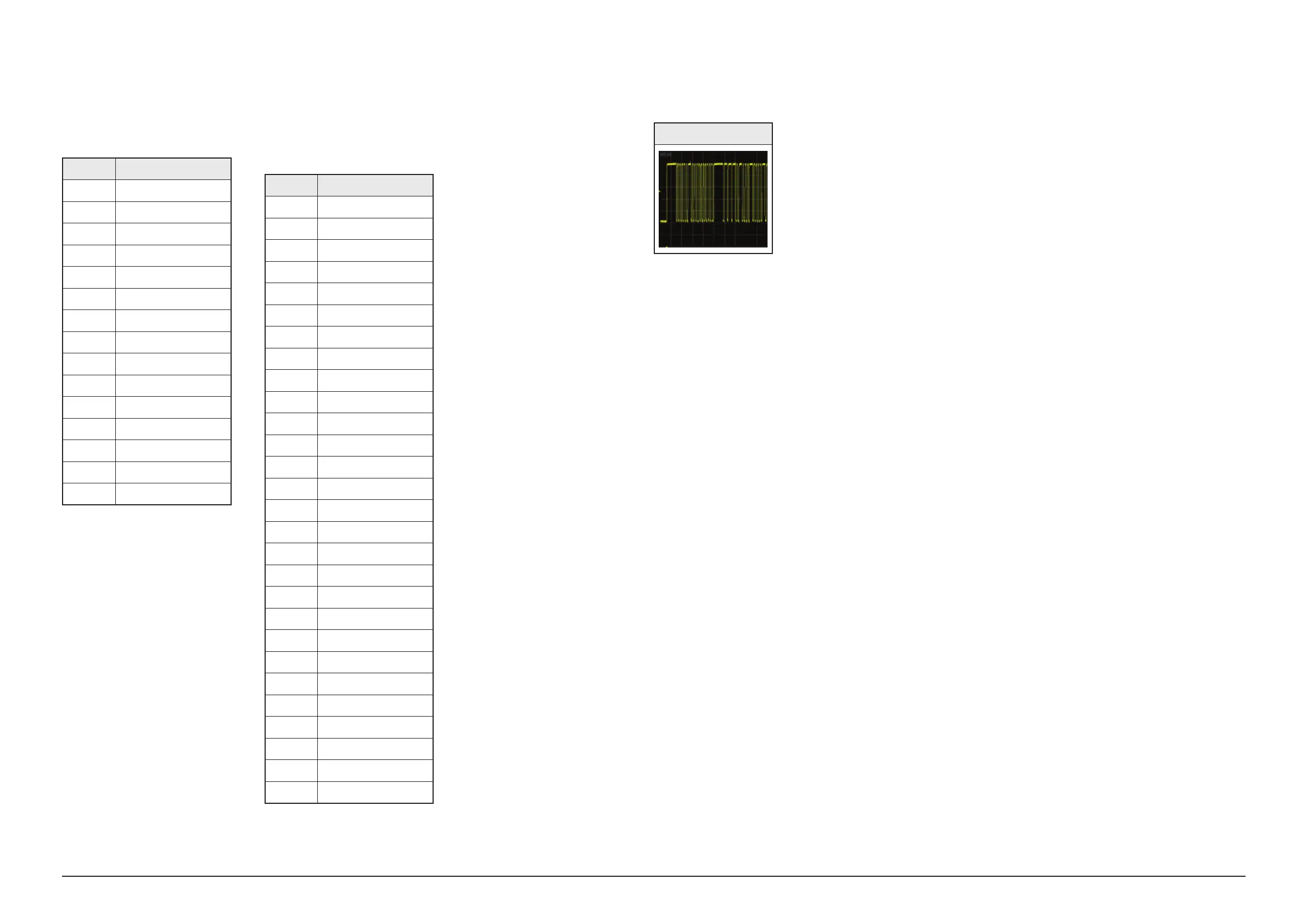

PCB Diagram
6-2-1 Pin Connection 6-2-2 Test Point Wave Form
TP1
2 FCON1
Touch Key / VFD / USB Interface
Connector
Pin No. Signal
1 USP5V
2 DATA-
3 DATA+
4 GND
5 TOUINT
6 TOUCLK
7 TOUDATA
8 GND
9 PWR TOUCH
10 VOL DOWN
11 REMO
12 VOL LED
13 D5V
14 VOL UP
15 RED ONOFF
16 MIC DATA
17 ST5V
18 GND
19 VFD-28V
20 VFD-
21 VFD+
22 GND
23 VFDCE
24 VFDDATA
25 VFDCLK
26 ASC SEN
27 GND
28 ASC
1 FCN1
Touch Key Interface Connector
Pin No. Signal
1 VOL DOWN
2 VOL UP
3 VOL LED
4 GND
5 5V
6 KEY SDA
7 KEY SCL
8 LED1
9 GND
10 5V
11 5V
12 GND
13 KEY
14 GND
15 PWR ON
