6-12 Samsung Electronics

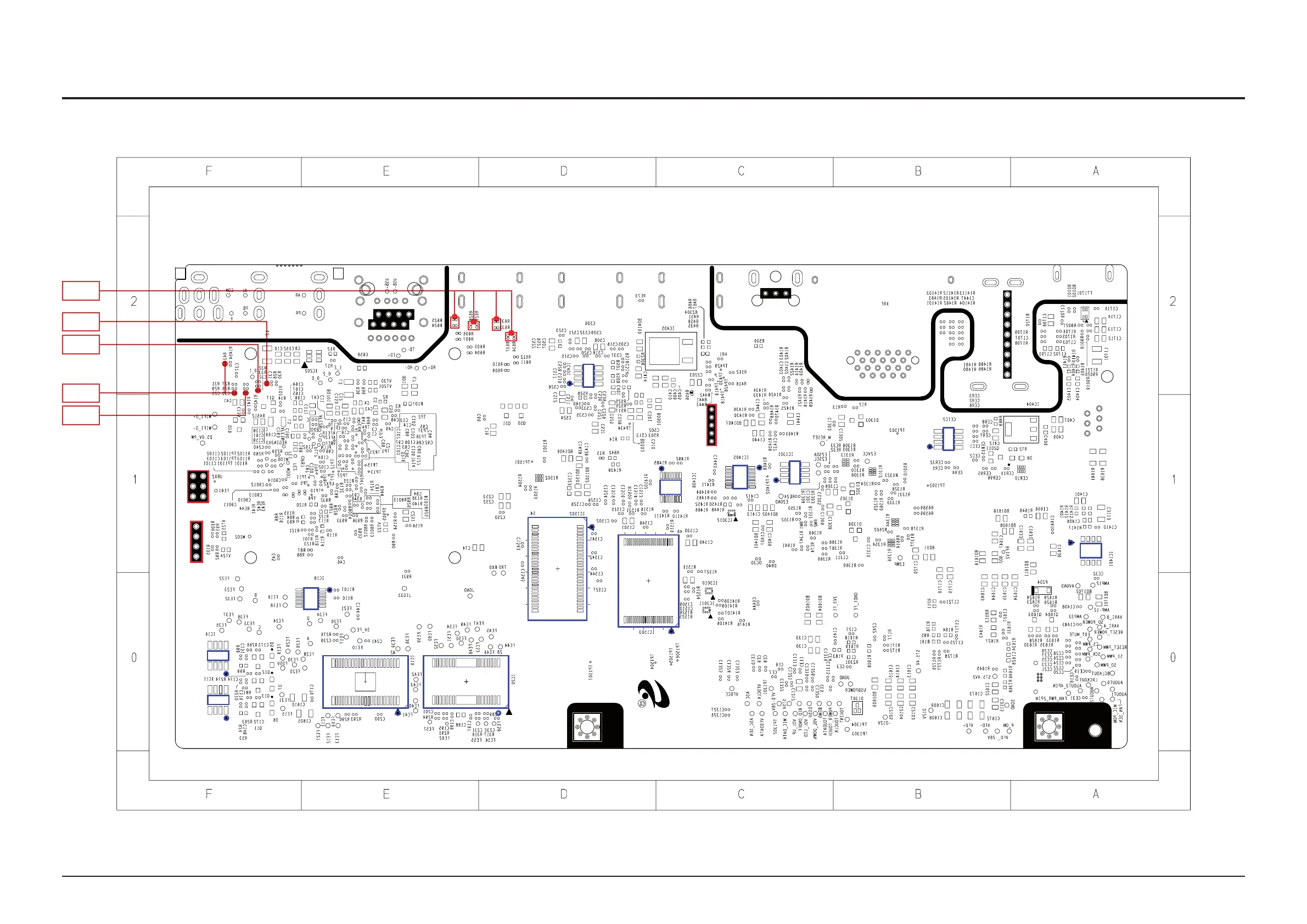

PCB Diagram
6-7 MAIN PCB Bottom
TP2
TP5
TP6
TP7
TP4
CN6
CN13
IC301
IC1502
IC401
CEIC2
IC405
IC1503
IC16 IC20
IC18
IC1408
IC16
IC11
IC1401
CF401
