Samsung HT-C5200/EDC User Manual

3-6 Samsung Electronics
Disassembly & Reassembly

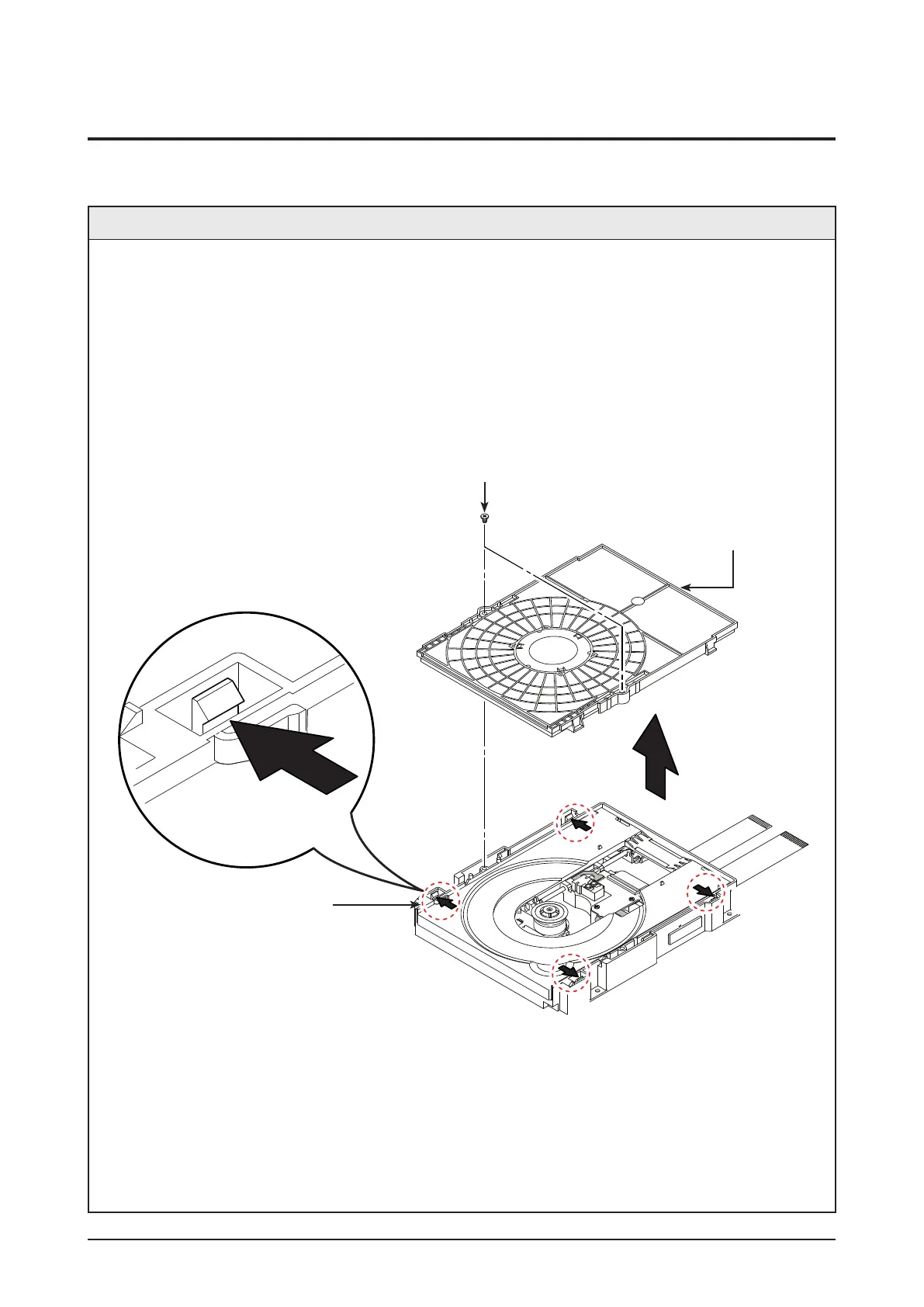

3-2 DECK Disassembly & Reassembly
3-2-1 Ass’y Cover Removal
Description
1. Remove 2 Screws
1.
2. Push 4 Hooks 2 in the Direction of Arrow “A”.
3. Lift up the Ass’y Cover 3 in direction of arrow “B”.
1 2 SCREWS
(M 2 X 7 W)
3 ASS'Y COVER
2 4 HOOKS
“A”
“A”
“A”
“A”
