Samsung HT-C5200/EDC User Manual

Samsung Electronics 3-7
Disassembly & Reassembly

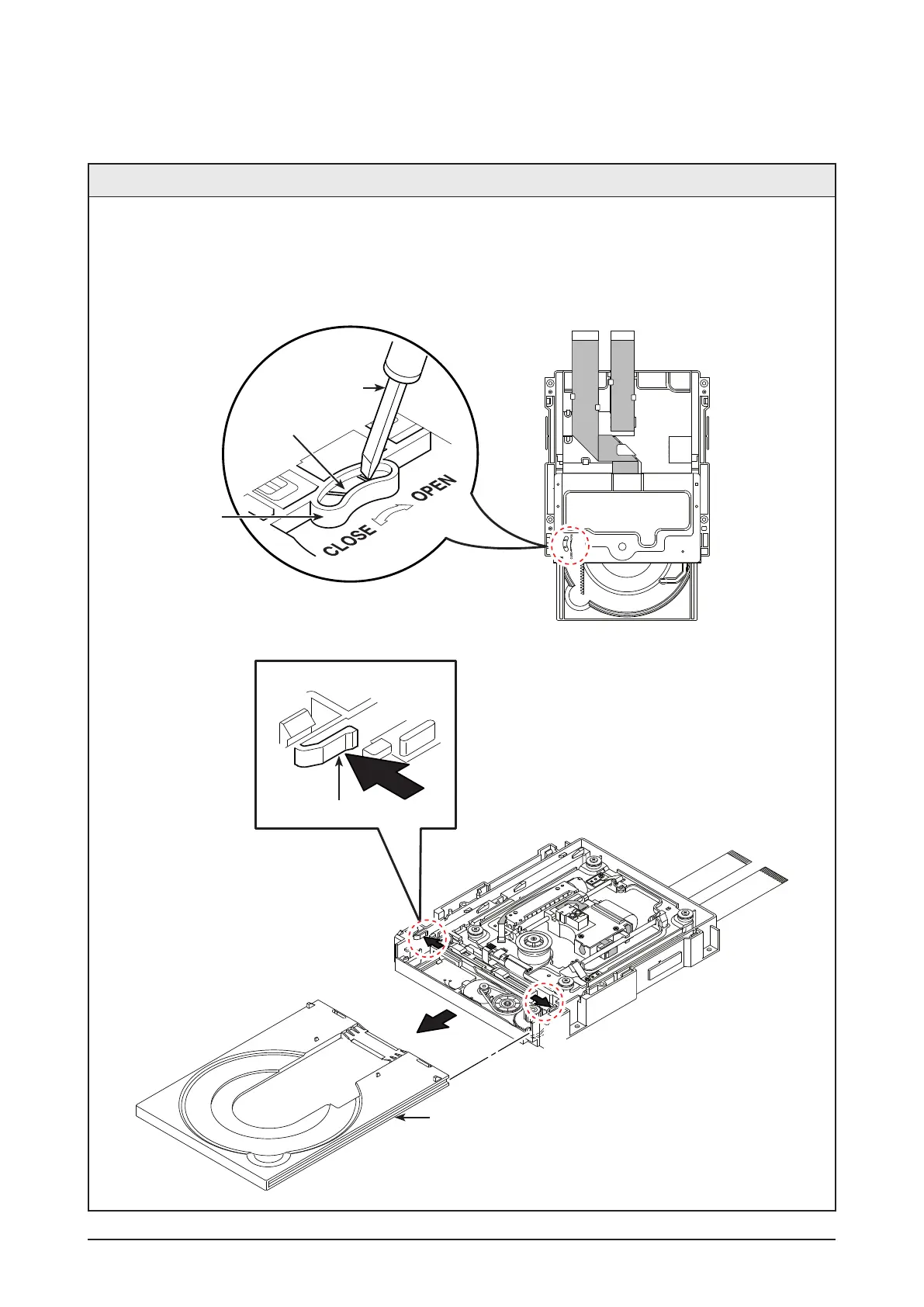

3-2-2 Tray Disc Removal
Description
1. Insert a Screw Driver into Hole
1 and rotate Gear Tray 2 in the direction arrow “Open”.
2. When the Tray Disc 3 comes out a little, pull in the direction of arrow “A” using your hand.
3. Pull the Tray Disc 3 to disassemble, while simultaneously pushing 2 Stoppers 4 (left, right) in the
direction arrow “B”, “C”.
SCREW DRIVER
2 GEAR TRAY
(BOTTOM VIEW)
4 STOPPER
“B”
“A”
“C”
3 TRAY DISC
(TOP VIEW)
1 HOLE
