Samsung HT-C5200/EDC - Page 26

3-8 Samsung Electronics
Disassembly & Reassembly

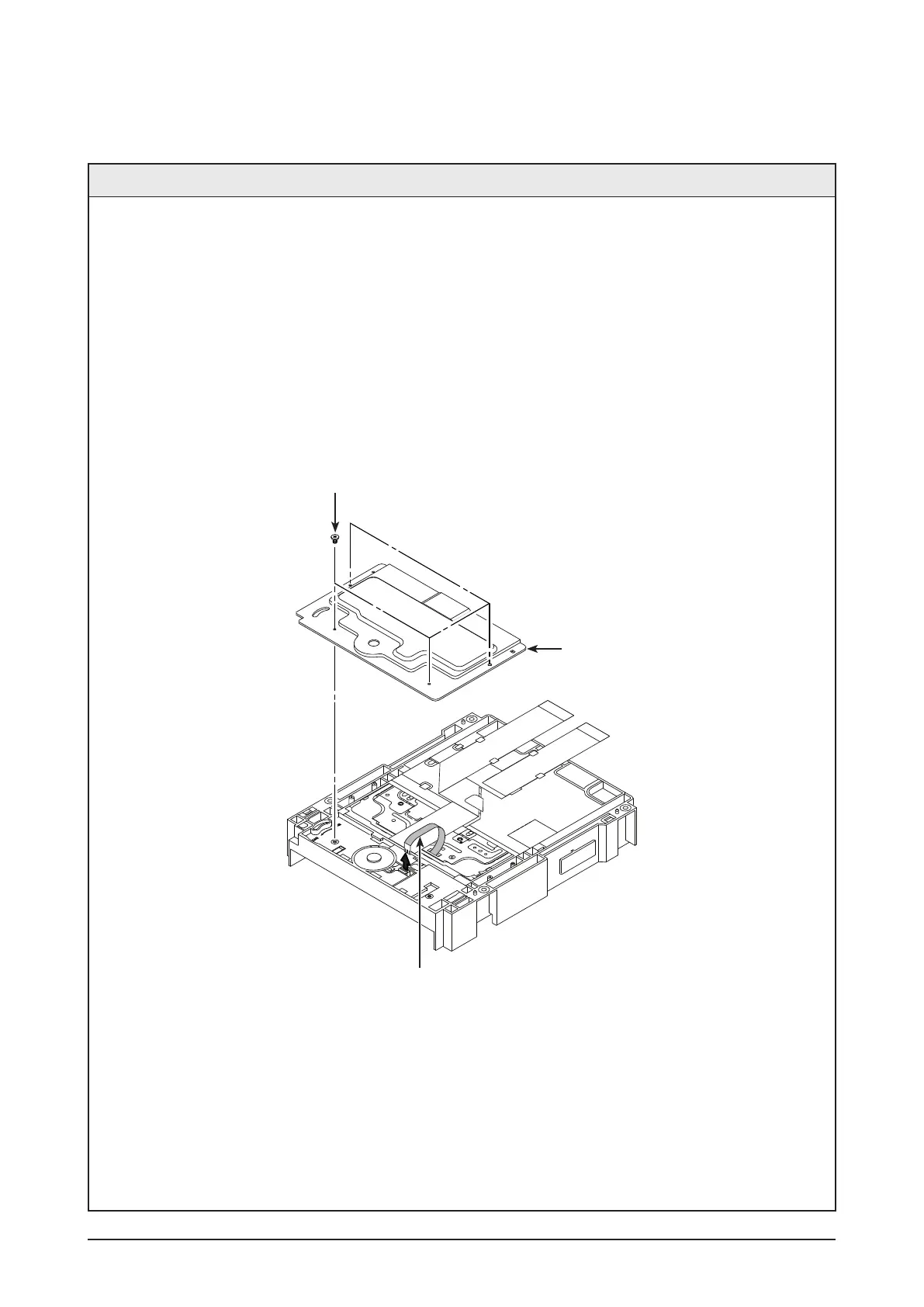

3-2-3 Cover Bottom Removal (Optional)
Description
1. Remove 4 Screws
1.
2. Lift up the Cover Bottom 2.
3. Remove FFC Cable 3.
2 COVER BOTTOM
1 4 SCREWS
(M 1.7 X 5 W)
3 FFC CABLE
