Samsung Electronics 3-9
Disassembly & Reassembly

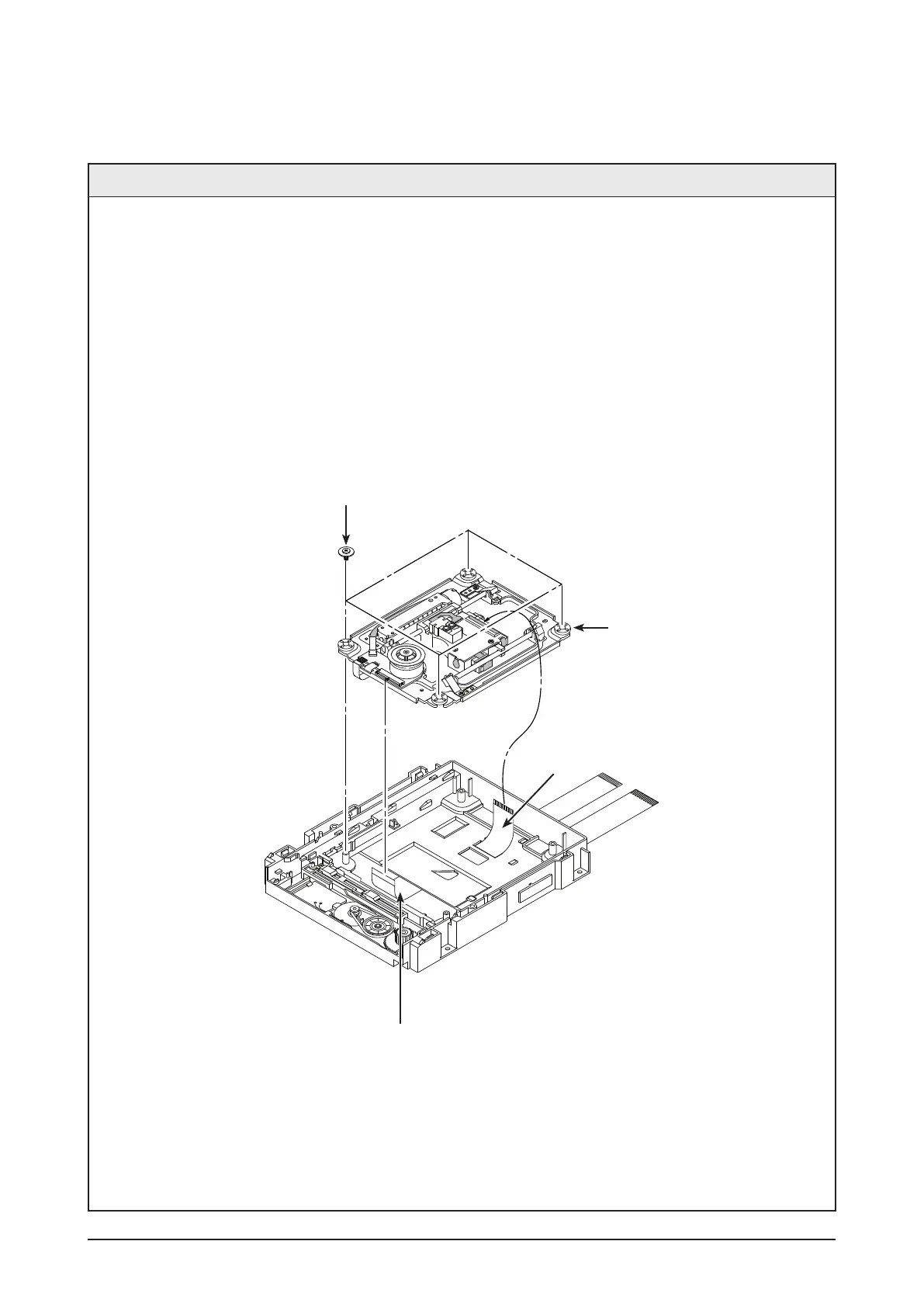

3-2-4 Assy Traverse Deck Removal
Description
1. Remove FFC PU Cable
1.
2. Removal 4 Screws 2.
3. Lift up the Assy Traverse Deck 3.
4. Remove FFC Deck Cable 4.
2 4 SCREWS
(M 2.6 X 6 B)
3 ASS’Y TRAVERSE DECK
4 FFC DECK
1 FFC PU
