Disassembly & Reassembly

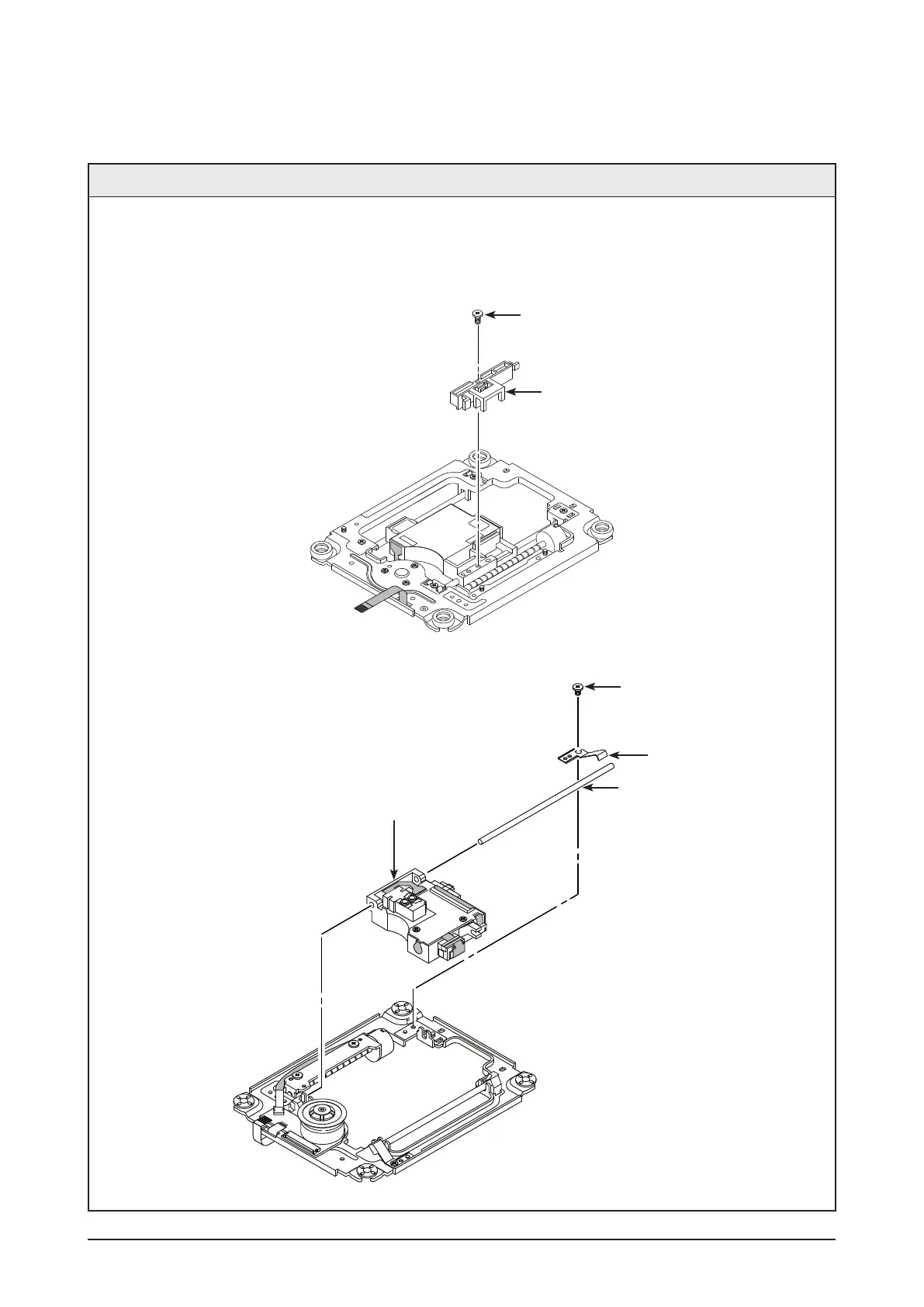

3-2-5 Ass’y Pick Up Removal
Description
1. Remove 1 Screw
1 and Lift up the Assy Hinge PU 2.
2. Remove 1 Screw 3 and Lift up Brkt Shaft Fix R 4.
3. Lift Up Shaft P/U 5 and Remove the Ass’y Pick Up 6.
5 SHAFT P/U
6 ASS'Y PICK UP
1 1 SCREW
(M 1.7 X 5 W)
2 ASS'Y HINGE PU
(BOTTOM VIEW)
(TOP VIEW)
3 1 SCREW
(M 1.7 X 5 W)
4 BRKT SHAFT FIX R
