Samsung Electronics 3-11
Disassembly & Reassembly

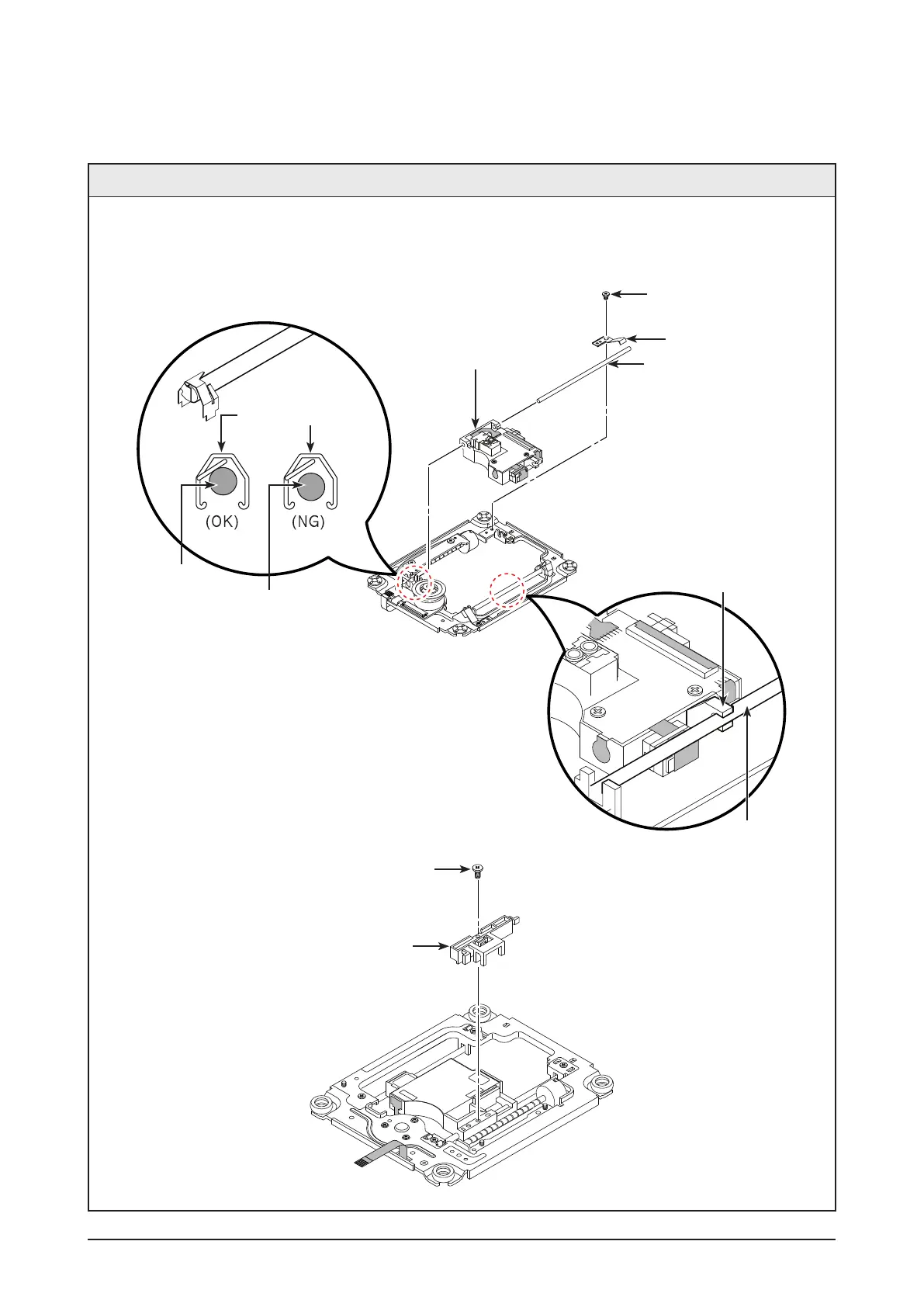

3-2-6 Ass’y Pick Up Assemble
Description
1. Insert the Shaft P/U
1 into the Ass’y pick up 2.
2. Insert the Brkt Shaft Fix R 3 Assemble 1 Screw 4.
3. Insert the Ass’y Hinge PU 5 Assemble 1 Screw 6.
ASS'Y PICK UP
BRACKET SHAFT PU
6 1 SCREW
(M 1.7 X 5 W)
5 ASS'Y HINGE PU
SHAFT P/U
SHAFT P/U
4 1 SCREW
(M 1.7 X 5 W)
1 SHAFT P/U
2 ASS'Y PICK UP
3 BRKT SHAFT FIX R
SHAFT P/U
