Samsung HW-S60A Full Manual

ENG - 10

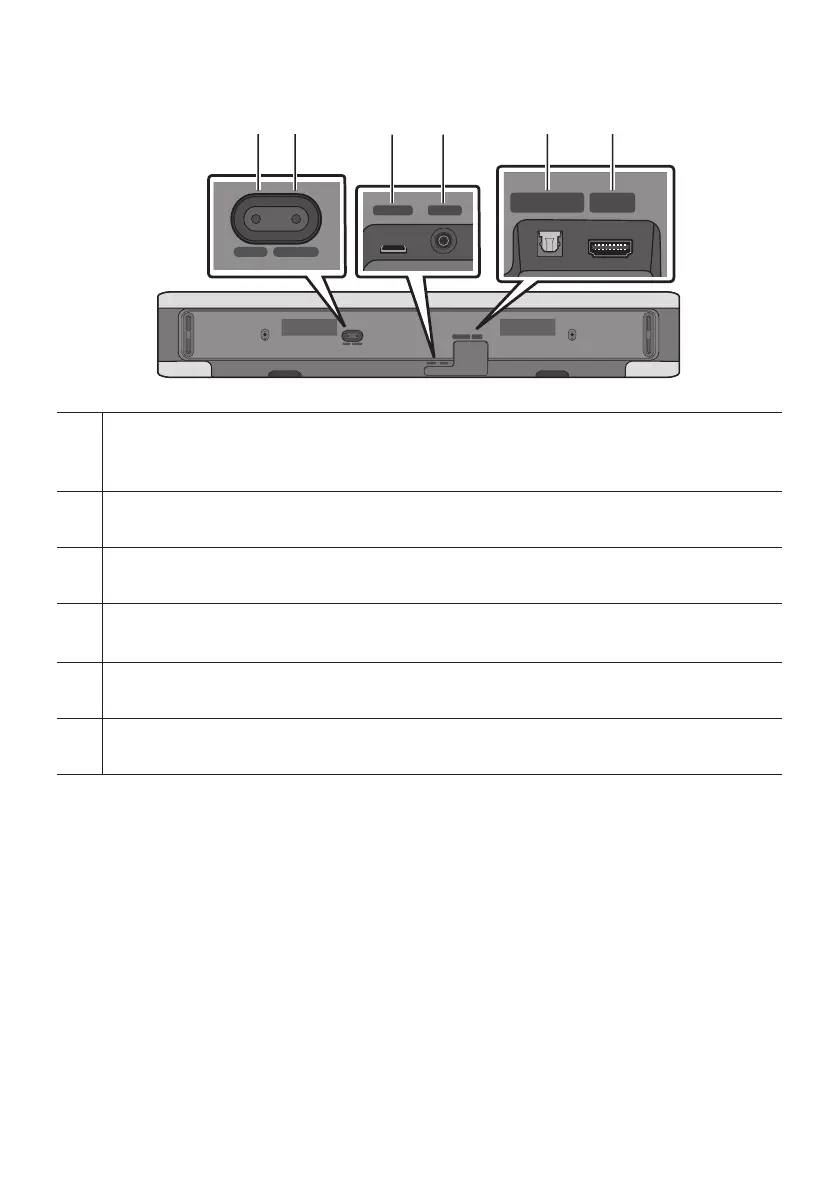

Bottom Panel of the Soundbar
SERVICE DC 19V
HDMI
(ARC)
DIGITAL AUDIO IN
(OPTICAL)
ID SET NETWORK
SERVICE DC 19V
HDMI
(ARC)
DIGITAL AUDIO IN
(OPTICAL)
SERVICE DC 19V
HDMI OUT
(TV-ARC)
DIGITAL AUDIO IN
(OPTICAL)
DIGITAL AUDIO IN
(OPTICAL)
ID SET NETWORK
SERVICE DC 19V
HDMI
(ARC)
DIGITAL AUDIO IN
(OPTICAL)
ID SET NETWORK
SERVICE DC 19V
HDMI
(ARC)
DIGITAL AUDIO IN
(OPTICAL)
SERVICE DC 19V
HDMI OUT
(TV-ARC)
DIGITAL AUDIO IN
(OPTICAL)
DIGITAL AUDIO IN
(OPTICAL)
ID SET NETWORK
SERVICE DC 19V
HDMI
(ARC)
DIGITAL AUDIO IN
(OPTICAL)
ID SET NETWORK
SERVICE DC 19V
HDMI
(ARC)
DIGITAL AUDIO IN
(OPTICAL)
SERVICE DC 19V
HDMI OUT
(TV-ARC)
DIGITAL AUDIO IN
(OPTICAL)
DIGITAL AUDIO IN
(OPTICAL)
ID SET NETWORK
SERVICE DC 19V
HDMI
(ARC)
DIGITAL AUDIO IN
(OPTICAL)
ID SET NETWORK
SERVICE DC 19V
HDMI
(ARC)
DIGITAL AUDIO IN
(OPTICAL)
SERVICE DC 19V
HDMI OUT
(TV-ARC)
DIGITAL AUDIO IN
(OPTICAL)
DIGITAL AUDIO IN
(OPTICAL)
ID SET NETWORK
󱂓 󱂔 󱂕 󱂖 󱂗 󱂘
󱂓
ID SET
Press to connect the Soundbar to Surround speakers and a subwoofer wirelessly.
(The surround speaker, subwoofer are sold separately.)
󱂔
NETWORK
Press to connect to a wireless network (Wi-Fi) via the SmartThings app.
󱂕
SERVICE
Connect a USB storage device to upgrade the product's software.
󱂖
DC 19V (Power Supply In)
Connect the AC/DC power adapter. (See page 16)
󱂗
DIGITAL AUDIO IN (OPTICAL)
Connect to the digital (optical) output of an external device. (See page 23)
󱂘
HDMI (ARC)
Connect to the HDMI (ARC) port on a TV. (See page 17)
• When disconnecting the power cable of the AC/DC power adapter from a wall outlet, pull the plug.
Do not pull the cable.
• Do not connect this unit or other components to an AC outlet until all connections between
components are complete.

Samsung HW-S60A Specifications

General

Cables included	AC
Package depth	215.9 mm
Package width	1018.54 mm
Package height	134.62 mm
Package weight	5397 g
Power consumption (standby)	0.5 W
Power consumption (typical)	23 W
Product color	Black
Wall mountable	-
Audio formats supported	AAC, AIFF, ALAC, FLAC, MP3, OGG, WAV, WMA
Connectivity technology	Wireless
Digital audio optical in	1
Audio decoders	DTS 5.1, Dolby Digital 5.1
RMS rated power	200 W
Audio output channels	5.0 channels
Number of speakers	7
Soundbar speaker RMS power	- W

Weight and Dimensions

Depth	124.46 mm
Width	764.54 mm
Height	68.58 mm
Soundbar weight	2993 g
