07 CONNECTING AN EXTERNAL DEVICE

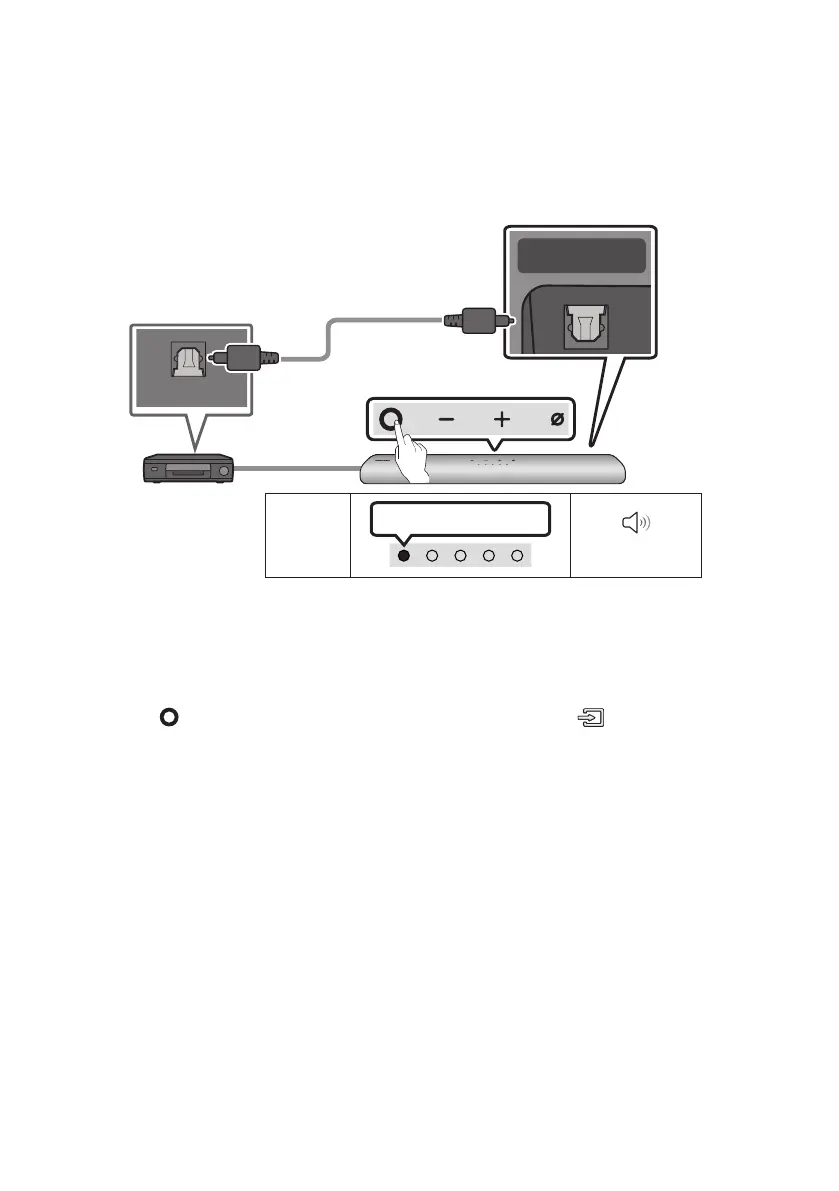

Connecting using an Optical Cable
LED
Indicator
White On -> Off
“Digital Audio In”
- AUDIO -
R L
OPTICAL OUT
SERVICE DC 19V
HDMI OUT
(TV-ARC)
DIGITAL AUDIO IN
(OPTICAL)
Bottom of the Soundbar
Optical Cable
(not supplied)
Top of the Soundbar
BD / DVD player / Set-top
box / Game console
1. With the external device and Soundbar turned off, connect the DIGITAL AUDIO IN (OPTICAL) port
on the Soundbar and the OPTICAL output port on the external device with the optical cable (not
supplied), as shown in the gure.
2. Turn on the Soundbar and external device.
3. Press the (Multi Function) button at the top of the Soundbar or the (Source) button on the
remote control and then select the “Digital Audio In” mode. Then the announcement, “Digital
Audio In” is output.
4. The external device sound is output from the Soundbar.

Samsung HW-S60A Specifications

General

Cables included	AC
Package depth	215.9 mm
Package width	1018.54 mm
Package height	134.62 mm
Package weight	5397 g
Power consumption (standby)	0.5 W
Power consumption (typical)	23 W
Product color	Black
Wall mountable	-
Audio formats supported	AAC, AIFF, ALAC, FLAC, MP3, OGG, WAV, WMA
Connectivity technology	Wireless
Digital audio optical in	1
Audio decoders	DTS 5.1, Dolby Digital 5.1
RMS rated power	200 W
Audio output channels	5.0 channels
Number of speakers	7
Soundbar speaker RMS power	- W

Weight and Dimensions

Depth	124.46 mm
Width	764.54 mm
Height	68.58 mm
Soundbar weight	2993 g
