6-4
6. Wiring Diagram
6-3. Connector Functions
Connector Functions
CN1001 <-> SMPS Supply dimming power from SMPS to Main Board.
* defective symptom : abnormal Picture
CN2001 <-> Speaker Connection Main Board and Speaker.
* defective symptom : No picture
CN5401 <-> Function & IR Connection Main Board and Function & IR Assy.
* defective symptom : No picture, diable Power On/Off
CN5200 <-> T-CON The LVDS signal transferred from Main Board to Panel.
* defective symptom : No picture but normal sound

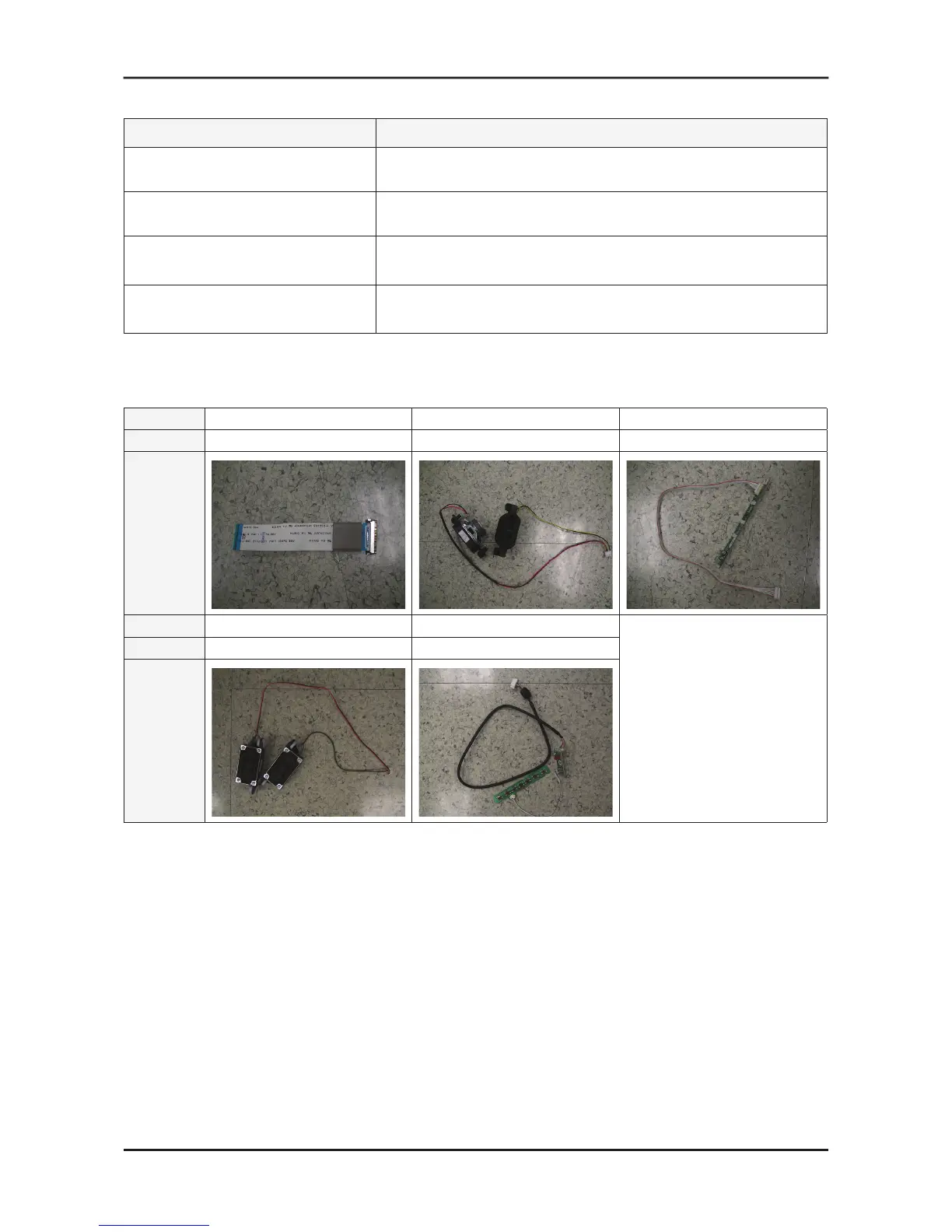

6-4. Cables
Use (1) LVDS CONNECTOR (2) ASSY-SPEAKER (3) IR to FUNCTION
Code BN96-02854N BN96-11276A (350 only) BN96-11522B (350 only)
Use (4) ASSY-SPEAKER (5) IR to FUNCTION
Code BN98-06823J BN96-07270U (450 only)
