13 Circuit Descriptions
13-2

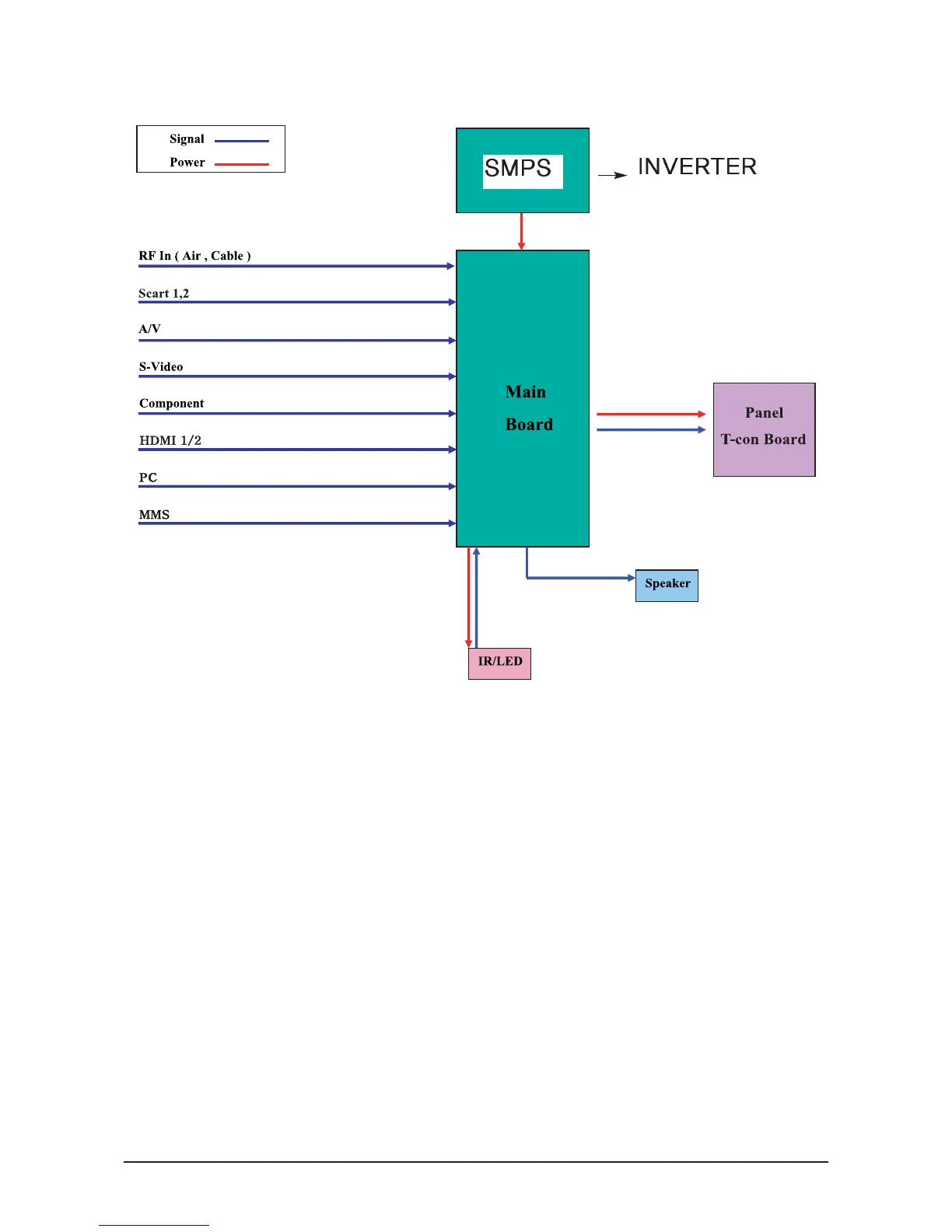

Mosel consists of three main blocks
1. Main board : Video signal processing
2. SMPS : Power supply
3. T-con board : LCD Panel control
