13 Circuit Descriptions
13-1
13 Circuit Descriptions

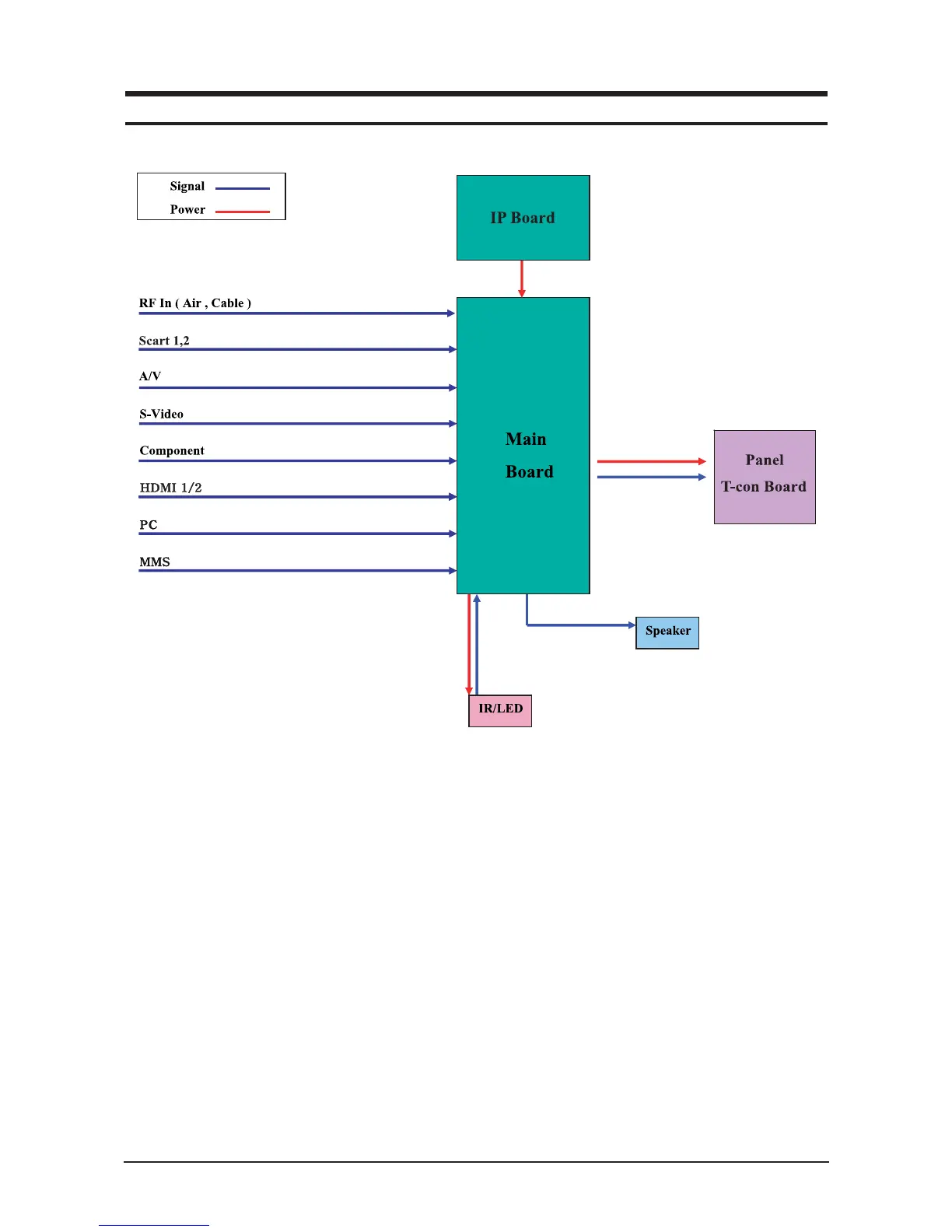

13-1 Block description
Mosel consists of three main blocks
1. Main board : Video signal processing
2. IP board : Power supply & Inverter
3. T-con board : LCD Panel control
