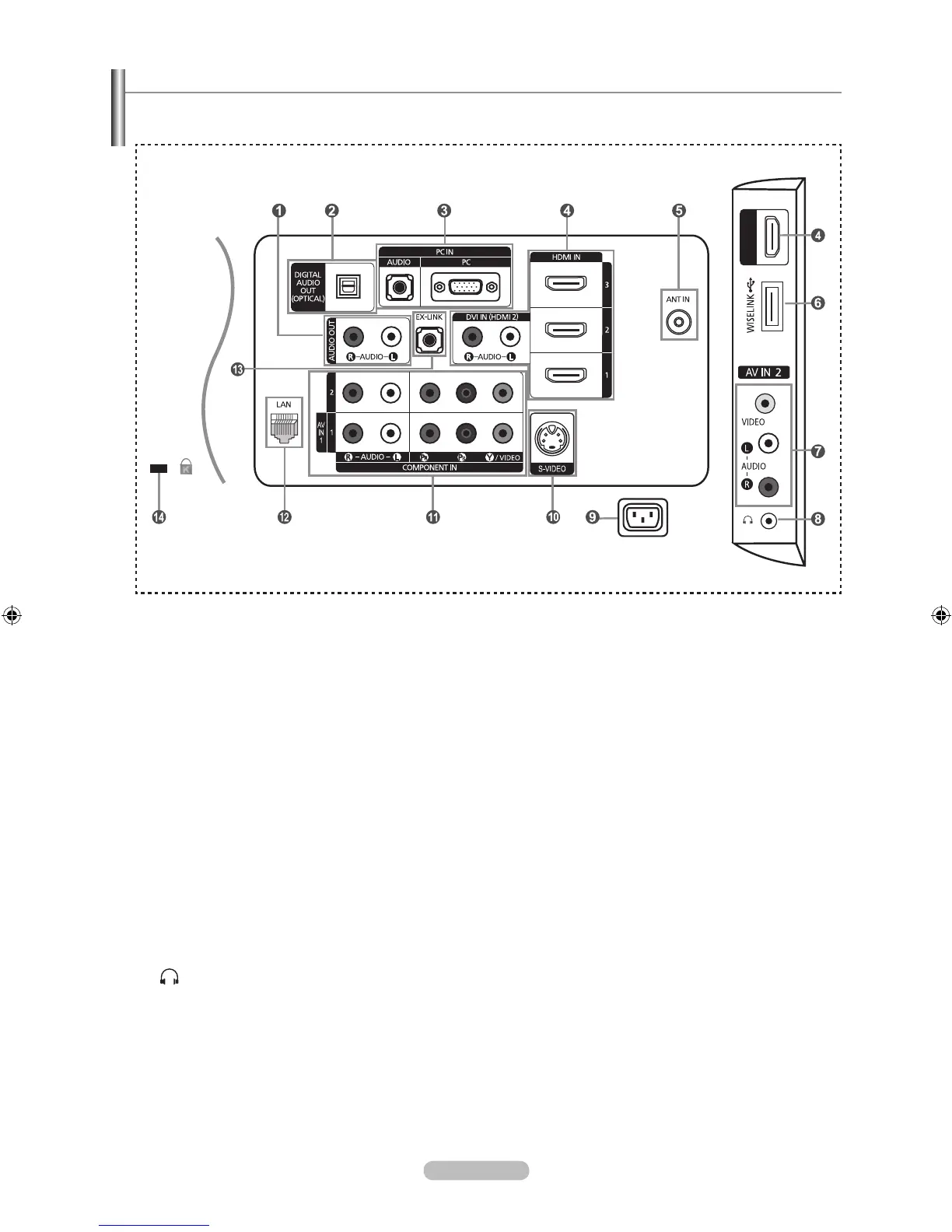

Viewing the Connection Panel
Use the connection panel jacks to connect A/V components that will be connected continuously, such as DVD/Blu-Ray
players or a VCR. For more information on connecting equipment, see pages 9~15.
[TV Side Panel]
[TV Rear Panel]
The product color and shape may vary depending on the model.
➣
1
AUDIO OUT
Connects to the audio input jacks on your Amplier/Home theater.
2
DIGITAL AUDIO OUT (OPTICAL)
Connects to a Digital Audio component.
3
PC IN [PC] / [AUDIO]
Connects to the video and audio output jacks on your PC.
4
HDMI IN 1, 2, 3, 4 / DVI IN(HDMI2)[R-AUDIO-L]
Connects to the HDMI jack of a device with an HDMI output.
- No sound connection is needed for an HDMI to HDMI connection.
Use the HDMI IN 2 jack for DVI connection to an external device. Use a DVI to HDMI cable or DVI-HDMI adapter (DVI
to HDMI) for video connection and the DVI IN (HDMI2) [R-AUDIO-L] jacks for audio.
- When using an HDMI/DVI cable connection, you must use the HDMI IN 2 jack.
5
ANT IN
Connects to an antenna or cable TV system.
6
WISELINK
Connect a USB mass storage device to view movies and photos and listen to music les.
You can connect to Samsung’s network wirelessly using the Wireless Infolink adapter (Sold separately).
7
AV IN 2
Video and audio inputs for external devices, such as a camcorder or VCR.
8
(HEADPHONE)
Connects a set of external headphones for private listening.
