Samsung LN46D503F6F - Dimensions; FRONT VIEW; SIDE VIEW

34
English
Other Information
Dimensions

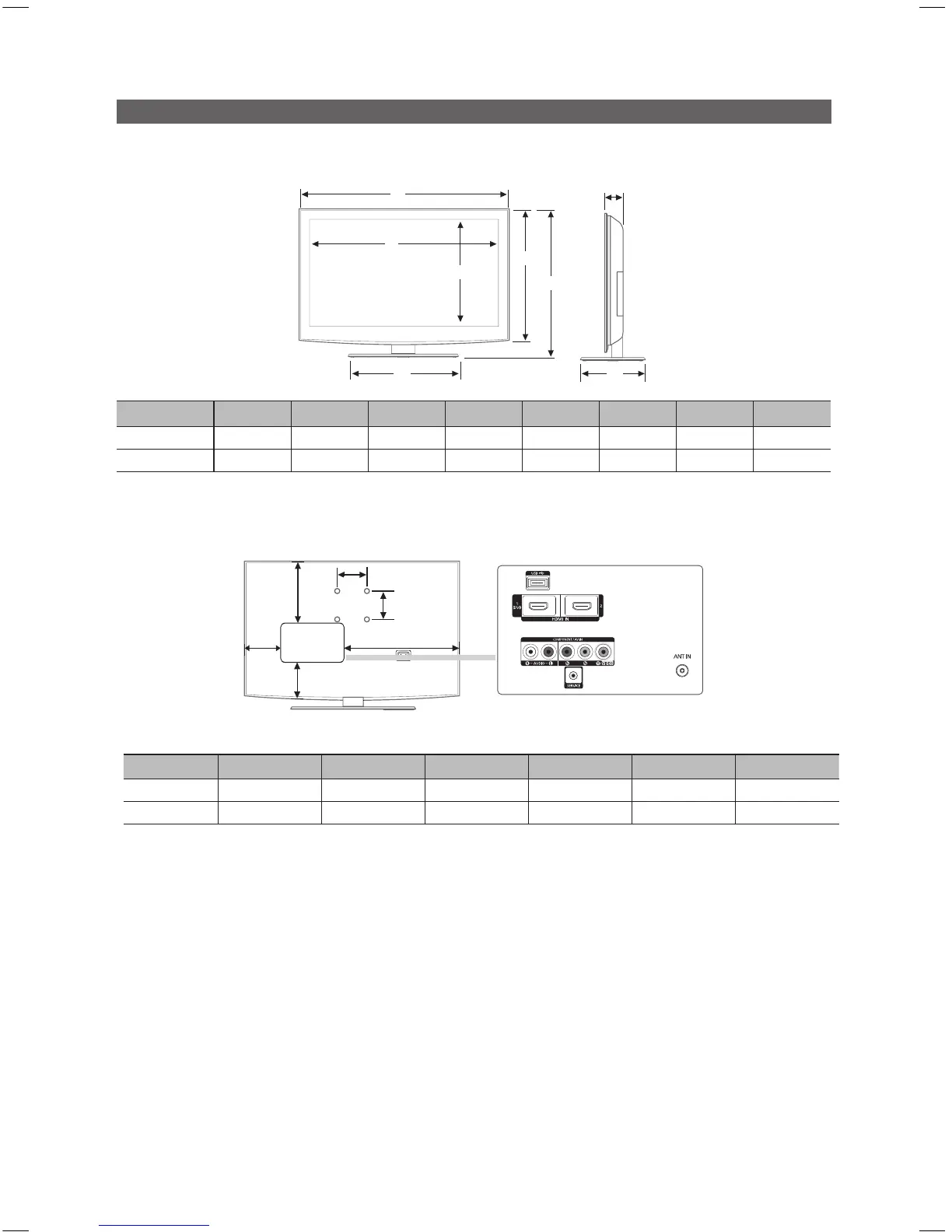

■ FRONT VIEW / SIDE VIEW
Model name
1 2 3 4 5 6 7 8
LN40D503F6F 38.2 34.9 19.7 22.8 23.3 25.7 3.1 9.4
LN46D503F6F 43.4 40.2 22.6 24.4 26.3 28.9 3.1 10.2
■ JACK PANEL DETAIL / REAR VIEW
(Unit: inches )
Model name
1 2 3 4 5 6
LN40D503F6F 12.9 2.4 3.6 27.3 7.9 7.9
LN46D503F6F 15.8 3.4 3.6 31.5 15.7 15.7
NOTE: All drawings are not necessarily to scale. Some dimensions are subject to change without prior notice. Refer to the
dimensions prior to performing installation of your TV. Not responsible for typographical or printed errors.
