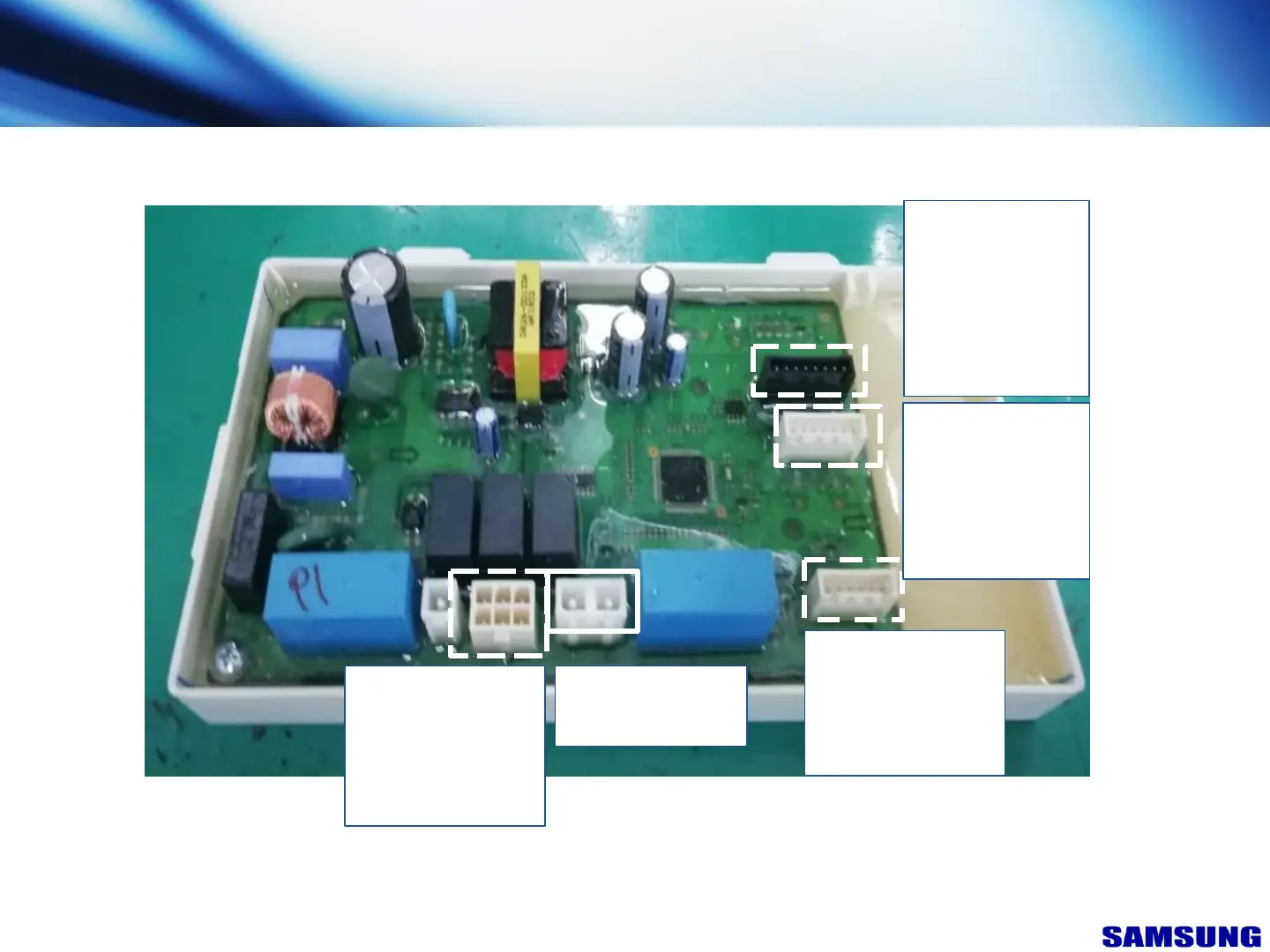

Connector & Relay Terminal Description (Upper Main PBA)
6. Reference Information
CNP401
1. AC MOTOR LV3
2. N.C
3. AC MOTOR LV1
4. PTC
5. N.C
6. AC MOTOR LV2
CN101
1. NE
2. NE-RELAY
CN201
1. 5V
2. SMART RX
3. SMART TX
4. SMART RESET
5. 5V
6. GND
7. GND
8. TOOL0
CN501
1. GND
2. 5V
3. THERMISTOR 1
4. 12V
5. 12V_DOOR
6. THERMISTOR 2
7. 5V
CN801
1. STANDBY RELAY
2. 12V_RELAY
3. GND
4. 5V_MAIN
5. TX
6. RX
