10-2-2. Parts list
Ne. | Code no.
17 159-0045-00
10000-607-186
10000-607-146
10000-607-101
10000-607-103
10000-607-104
10000-607-105
10000-607-106
10000-502-020
10000-607-108
10000-607-109
10000-607-117
10000-607-111

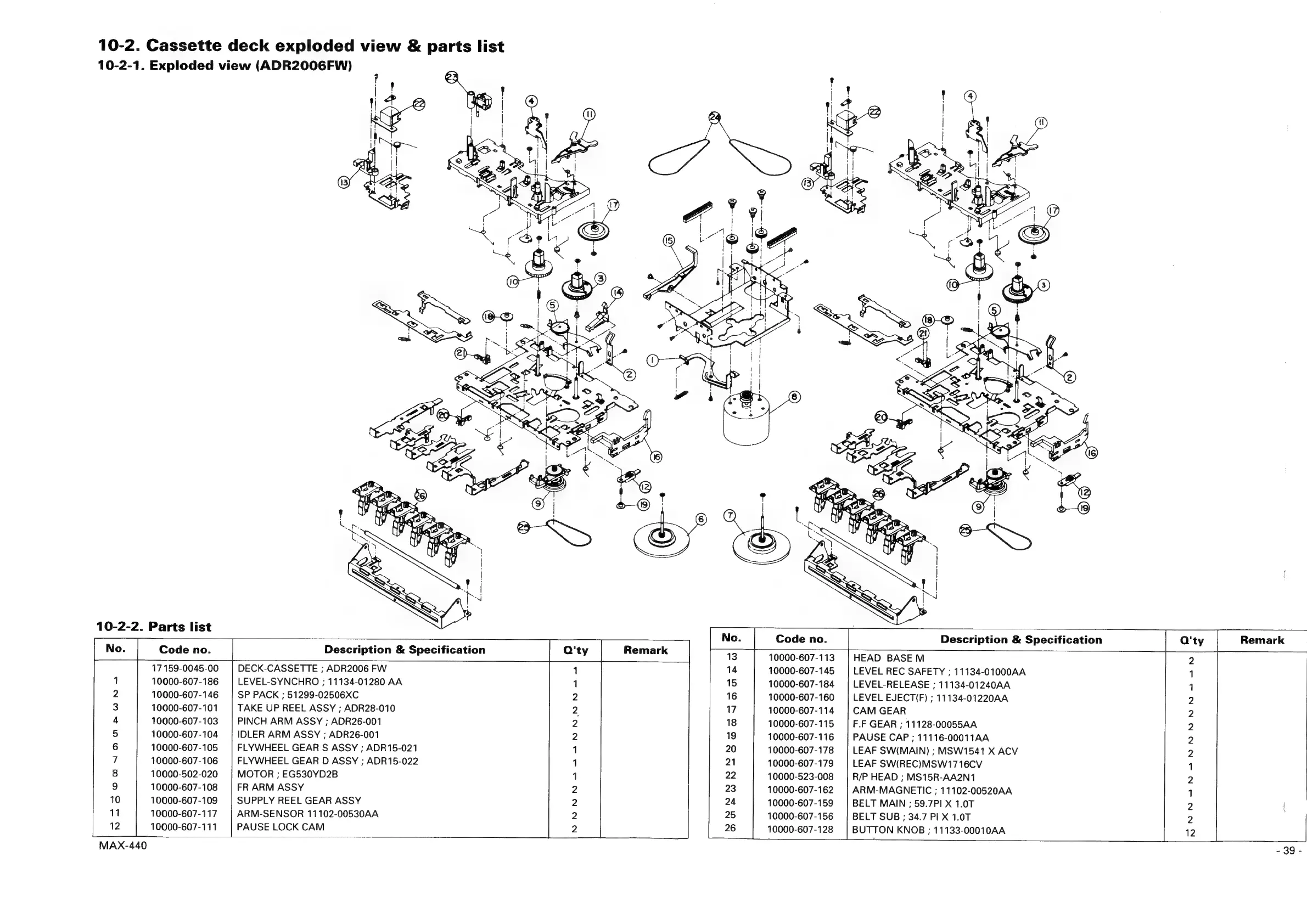

10-2. Cassette deck exploded view & parts list
10-2-1. Exploded view (ADR2006FW)
Description & Specification
DECK-CASSETTE ; ADR2006 FW
LEVEL-SYNCHRO ; 11134-01280 AA
SP PACK ; 51299-02506XC
TAKE UP REEL ASSY ; ADR28-010
PINCH ARM ASSY ; ADR26-001
IDLER ARM ASSY ; ADR26-001
FLYWHEEL GEAR S ASSY ; ADR15-021
FLYWHEEL GEAR D ASSY ; ADR15-022
MOTOR ; EG530YD2B
FR ARM ASSY
SUPPLY REEL GEAR ASSY
ARM-SENSOR 11102-00530AA
PAUSE LOCK CAM
NONNDNYM 9 | ANN ND = =
Code no.
Description & Specification
10000-607-113
10000-607-145
10000-607-184
10000-607-160
10000-607-114
10000-607-115
10000-607-116
10000-607-178
10000-607-179
10000-523-008
10000-607-162
10000-607-159
10000-607-156
10000-607-128
HEAD BASE M
LEVEL REC SAFETY ; 11134-01000AA
LEVEL-RELEASE ; 11134-01240AA
LEVEL EJECT(F) ; 11134-01220AA
CAM GEAR
F.F GEAR ; 11128-00055AA
PAUSE CAP ; 11116-00011AA
LEAF SW(MAIN) ; MSW1541 X ACV
LEAF SW(REC)MSW1716CV
R/P HEAD ; MS15R-AA2N1
ARM-MAGNETIC ; 11102-00520AA
BELT MAIN ; 59.7PI X 1.0T
BELT SUB ; 34.7 PI X 1.0T
BUTTON KNOB ; 11133-00010AA
NNO S| NY] NNNNDND = = fl
= NR
