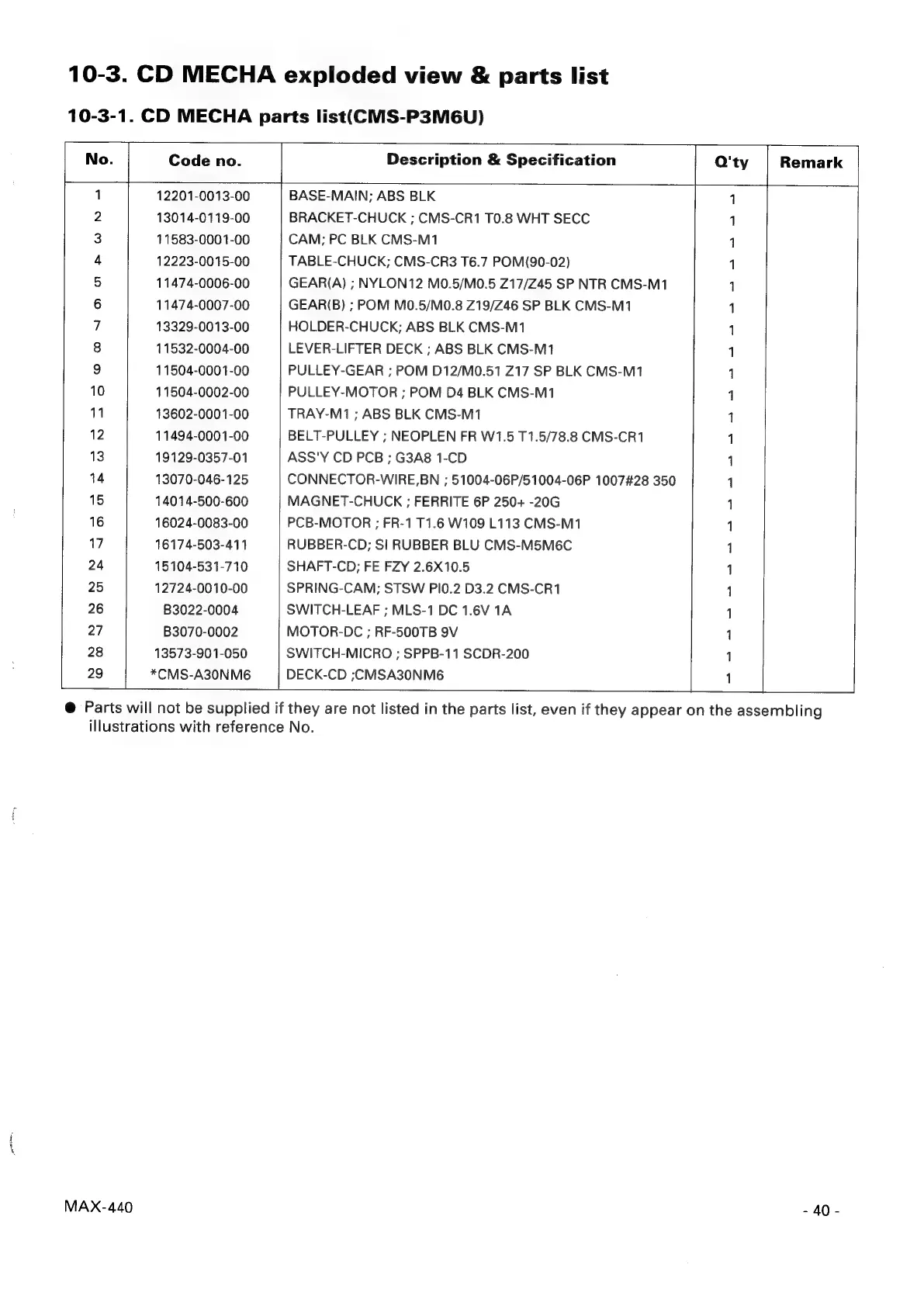

10-3. CD MECHA exploded view & parts list
10-3-1. CD MECHA parts list(CMS-P3M6U)
No. Code no. Description & Specification Q'ty | Rewari
r 1 12201-0013-00 BASE-MAIN; ABS BLK 1
2 13014-0119-00 BRACKET-CHUCK ; CMS-CR1 T0.8 WHT SECC 1
3 11583-0001-00 CAM; PC BLK CMS-M1 1
4 12223-0015-00 TABLE-CHUCK; CMS-CR3 T6.7 POM(90-02) 1
5
11474-0006-00
GEAR(A)
;
NYLON12
MO0.5/M0.5
Z17/Z45
SP
NTR
CMS-M1
1
6
11474-0007-00
GEAR(B)
;
POM
M0.5/M0.8
219/246
SP
BLK
CMS-M1
1
7 13329-0013-00 HOLDER-CHUCK; ABS BLK CMS-M1 1
8 11532-0004-00 LEVER-LIFTER DECK ; ABS BLK CMS-M1 1
9 11504-0001-00 PULLEY-GEAR ; POM D12/M0.51 217 SP BLK CMS-M1 1
10 11504-0002-00 PULLEY-MOTOR ; POM D4 BLK CMS-M1 1
11 13602-0001-00 TRAY-M1 ; ABS BLK CMS-M1 1
12 11494-0001-00 BELT-PULLEY ; NEOPLEN FR W1.5 T1.5/78.8 CMS-CR1 1
13 19129-0357-01 ASS'Y CD PCB ; G3A8 1-CD 1
14 13070-046-125 CONNECTOR-WIRE,BN ; 51004-06P/51004-06P 1007#28 350 1
15
14014-500-600
MAGNET-CHUCK
;
FERRITE
6P
250+
-20G
1
16 16024-0083-00 PCB-MOTOR ; FR-1 T1.6 W109 L113 CMS-M1 1
17
16174-503-411
RUBBER-CD;
S|
RUBBER
BLU
CMS-M5M6C
4
24
15104-531-710
SHAFT-CD;
FE
FZY
2.6X10.5
1
25 12724-0010-00 SPRING-CAM; STSW PI0.2 D3.2 CMS-CR1 1
26 B3022-0004 SWITCH-LEAF ; MLS-1 DC 1.6V 1A 1
27 B3070-0002 MOTOR-DC ; RF-500TB 9V 1
28 13573-901-050 SWITCH-MICRO ; SPPB-11 SCDR-200 1
29 *CMS-A30NM6 DECK-CD ;CMSA30NM6 1
@ Parts will not be supplied if they are not listed in the parts list, even if they appear on the assembling
illustrations with reference No.
