Samsung MAX-DA66 - Description

ENG
—Rear Panel—
CD RIPPING
POWER
REMAIN
CANCEL
STEP
MUTE
VOLUME
MENU
AUDIO
EXIT
SUB
TITLE
SLEEP
P.SOUND
DEMO/DIMMER
INFO
MODE
MODE
TUNER
MEMORY
EFFECT
SD/HD
SLOW
MO/ST
P.BASS
ECHO ZOOM
LOGO
DSP/EQ
REPEAT
TIMER
ON/OFF
TIMER/CLOCK
ENTER
RETURN
TUNING/CH
PAUSE
STOP PLAY
DVD TUNER AUX USB
Video Cable
FM Antenna
Remote Control
User's Manual
HDMI Cable
8
7
Description
Accessories

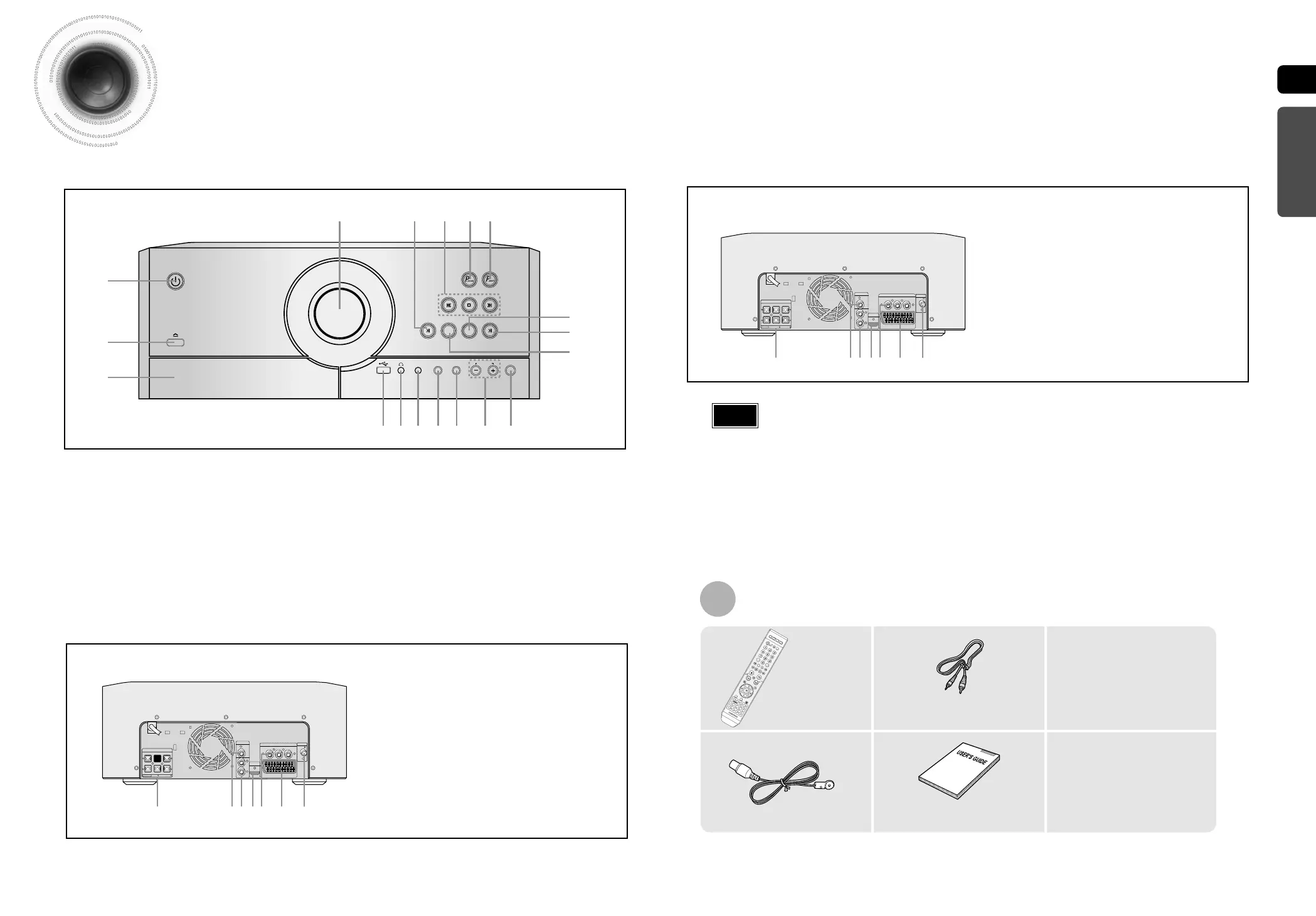

—Front Panel—
PREPARATION
The picture of Rear panel is based on MODEL:MAX-DA66
MAX-DA66: 2.1 Channel Speaker Output
MAX-DA67: 3.1 Channel Speaker Output
Note
TUNERDVD/CD USBAUX
VOLUME
AUX IN 1
MIC1 MIC2 MIC VOL ECHO
STANDBY/ON
1
2
4
8
5
7
6
10
11
12
13
9
3
14
1. STANDBY/ON BUTTON
2. OPEN/CLOSE
BUTTON
3. COMPACT DISC COMPARTMENT
4. USB JACK
5. HEADPHONE JACK
6. AUX IN 1
7. MIC 1
8. MIC 2
9.
MIC VOLUME BUTTON
10. ECHO BUTTON
11. TUNER FUNCTION
12. USB FUNCTION
13. AUX FUNCTION
14. POWER BASS BUTTON
15. POWER SOUND BUTTON
16
. SEARCH FUNCTION BUTTONS, TUNING MODE
OR STOP BUTTON
17. DVD/CD FUNCTION
18. VOLUME CONTROL
15
16
17
18
FRONT -H FRONT -H
FRONT -L FRONT -L
SUBWOOFER
2.1CH SPEAKERS OUT
ANTENNA
IMPEDANCE FRONT:4 SUBWOOFER:3
R L
R L
FM (75 )
L
AUX IN 2
VIDEO OUT
HDMI OUT
R
COMPONENT VIDEO OUT
EXT(AV)
YP
B PR
1234567
MAX-DA66
1. 2.1 Channel Speaker Output Terminals
2. Video Output Connector
Connect the TV's video input jacks (VIDEO IN) to
the VIDEO OUT connector.
3. AUX IN 2 Connector
4. HDMI OUT Connector
5. Component Video Output Connectors
Connect a TV with component vide input jacks to
these jacks.
6. Scart Connector
7.
FM Antenna Connector
FRONT -H CENTER FRONT -H
FRONT -L FRONT -L
SUBWOOFER
3.1CH SPEAKERS OUT
ANTENNA
IMPEDANCE FRONT/CENTER:4 SUBWOOFER:3
R L
R L
FM (75 )
L
AUX IN 2
VIDEO OUT
HDMI OUT
R
1234657
COMPONENT VIDEO OUT
EXT(AV)
YP
B PR
MAX-DA67
1. 3.1 Channel Speaker Output Terminals
2. Video Output Connector
Connect the TV's video input jacks (VIDEO IN) to
the VIDEO OUT connector.
3. AUX IN 2 Connector
4. HDMI OUT Connector
5. Component Video Output Connectors
Connect a TV with component vide input jacks to
these jacks.
6. Scart Connector
7.
FM Antenna Connector
