Samsung MAX-L45 - ADR248 DSW1 Cassette Deck Exploded View & Parts

Samsung Electronics
2-2

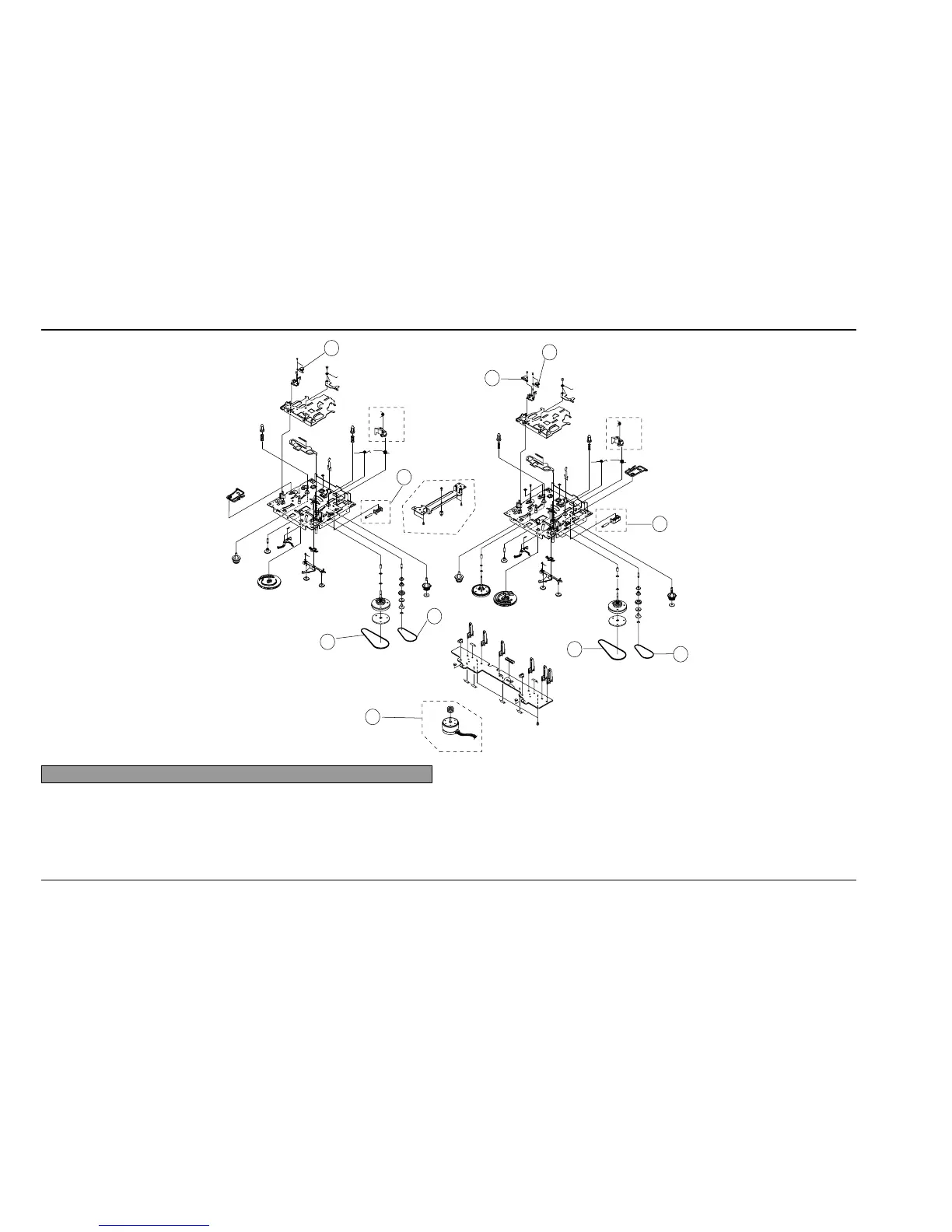

2-2 Cassette Deck :ADR248DSW1(OPTION)
88
2
4
5
3
5
6
1
7
6
1
No. Code No. Description Specification Remarks
AH59-00118A ASS’Y DECK ADR248DSW1
1 AH81-00423A HEAD YB-7442CB09 MT59-00054A
2 AH81-00422A ASS,Y MOTOR ADR2400-CCM09-120L2 MT91-15013Y
3 AH81-00364A BELT MAIN1 ADR2400-MAIN 0.5 6602-001056
4 AH81-00365A BELT MAIN2 ADR2400-MAIN 1.3 6602-001057
5 AH81-00101A BELT SUB ADR2400-FR 34.7 6602-001055
6 AH81-00102A SOLENOID ADR2400-1 MT75-00049A
7 AH81-00424A E-HEAD E-621RM MT59-00055A
