Samsung Electronics 2-1
2.Exploded Views and Parts List

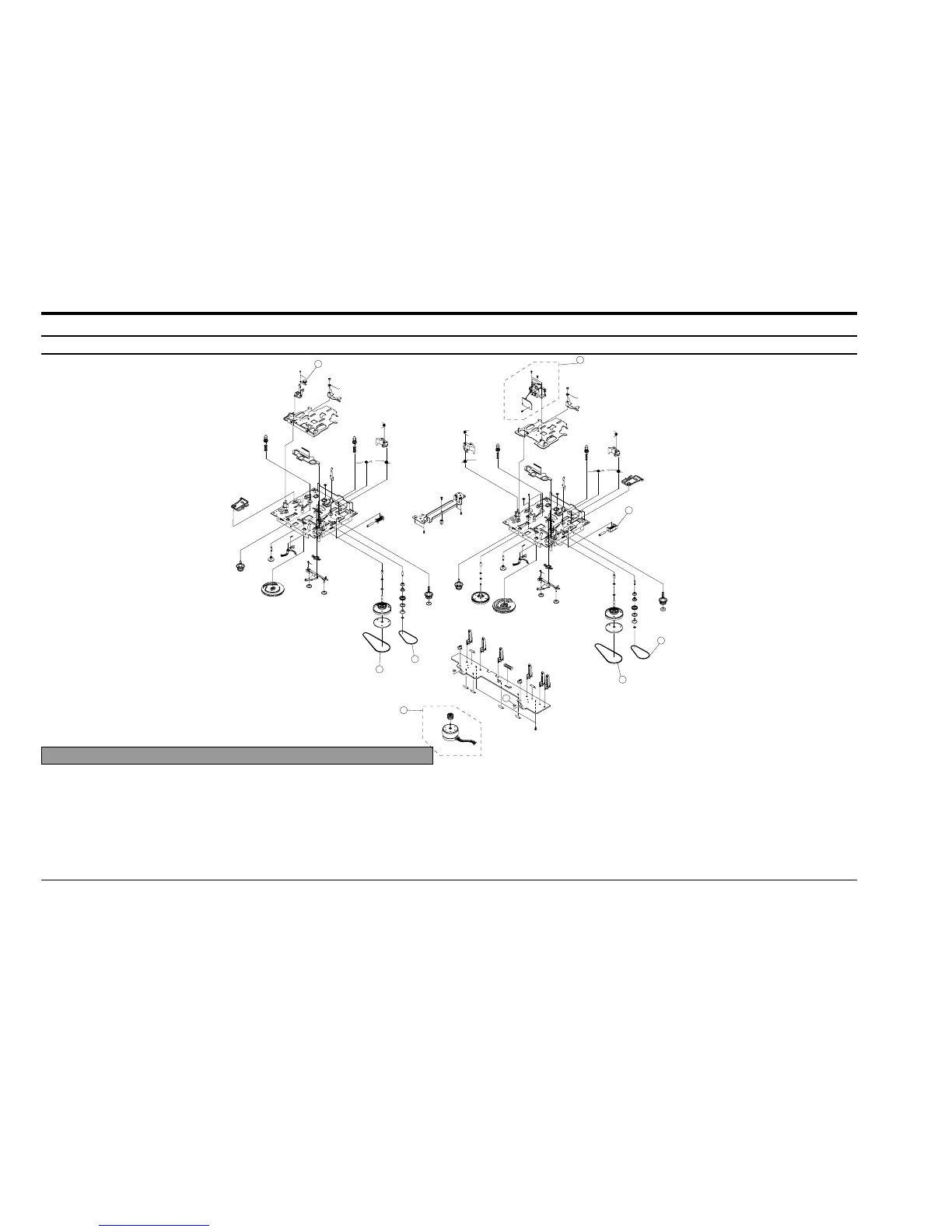

2-1 Cassette Deck :ADR248AMW1(OPTION)
No. Code No. Description Specification Remarks
88
2
1
7
6
4
6
3
5
AH59-00123A ASS’Y DECK ADR248AMW1
1 AH81-00098A ASS.Y RP HEAD TR981PA MT91-11011S
2 AH81-00423A HEAD PB YB-7442CB09 MT59-00054A
3 AH81-00422A ASS,Y MOTOR ADR2400-CCM090L2 MT91-15013Y
4 AH81-00364A BELT MAIN1 ADR2400-MAIN 0.5 6602-001056
5 AH81-00365A BELT MAIN2 ADR2400-MAIN 1.3 6602-001057
6 AH81-00101A BELT SUB ADR2400-FR 6602-001055
7 AH81-00102A SOLENOID ADR2400-1 MT75-00049A
