Samsung MCU-S4NEK3N User Manual

12

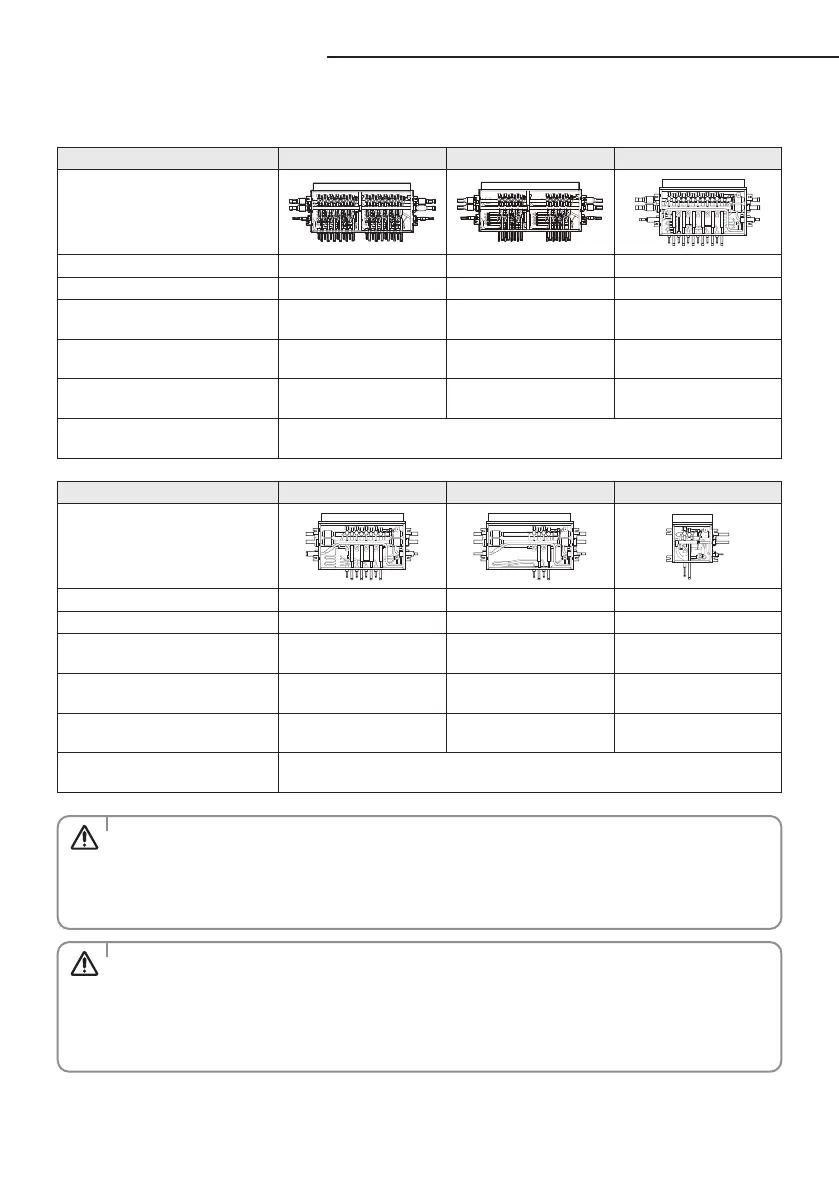

Space requirements
1. MCU specication
Model MCU-S12NEK1N MCU-S8NEK1N MCU-S6NEK2N
Exterior of MCU
Number of connectable indoor units at one port Up to 8 units Up to 8 units Up to 8 units
Maximum number of indoor units (Total) 64 64 32
The maximum capacity of the
connectable indoor units at one port
16 kW
(54MBH)
16 kW
(54MBH)
16 kW
(54MBH)
The maximum capacity of the connectable
indoor units at one port (with Y-JOINT)
32.0 kW
(108 MBH)
32.0 kW
(108 MBH)
32.0 kw
(108 MBH)
The maximum capacity of the
connectable indoor units
85.0 kW
(290MBH)
85.0 kW
(290MBH)
61.6 kW
(216MBH)
Internal EEV
Not included
Cannot connect indoor unit without internal EEV
Model MCU-S4NEK3N MCU-S2NEK2N MCU-S1NEK1N
Exterior of MCU
Number of connectable indoor units at one port Up to 8 units Up to 8 units Up to 8 units
Maximum number of indoor units (Total) 32 16 8
The maximum capacity of the
connectable indoor units at one port
16 kW
(54MBH)
16 kW
(54MBH)
16 kW
(54MBH)
The maximum capacity of the connectable
indoor units at one port (with Y-JOINT)
32.0 kw
(108 MBH)
32.0 kw
(108 MBH)
-
The maximum capacity of the
connectable indoor units
61.6 kW
(216MBH)
32.0 kW
(108MBH)
16 kW
(54MBH)
Internal EEV
Not included
Cannot connect indoor unit without internal EEV
CAUTION
• If the sum of the connected indoor unit capacity connected to the MCU is greater than 67.2kW (228 MBH), performance
may vary depending on operating conditions.
• The incoming pipe diameters supplying refrigerant to the MCU are determined based on the sum of the connected indoor
units. If these pipe diameters are dierent than the MCU pipe diameters, use the provided reducers to connect to the MCU.
If the provided reducers are not the correct size, eld supplied reducers must be used.
MISE EN GARDE
• Si la somme de la capacité des unités intérieures connectées au MCU est supérieure à 67,2kW (228MBH), les
performances peuvent varier en fonction des conditions de fonctionnement.
• Les diamètres des tuyaux entrants alimentant en uide frigorigène le MCU sont déterminés en fonction de la
somme des unités intérieures connectées. Si ces diamètres de tuyaux sont diérents de ceux du MCU, utilisez
les réducteurs fournis pour connecter le MCU. Si les réducteurs fournis ne sont pas de la taille correcte, il faut
utiliser des réducteurs fournis sur place.
