Samsung MD46B - Page 39

39
Preparations
1
1 Preparations

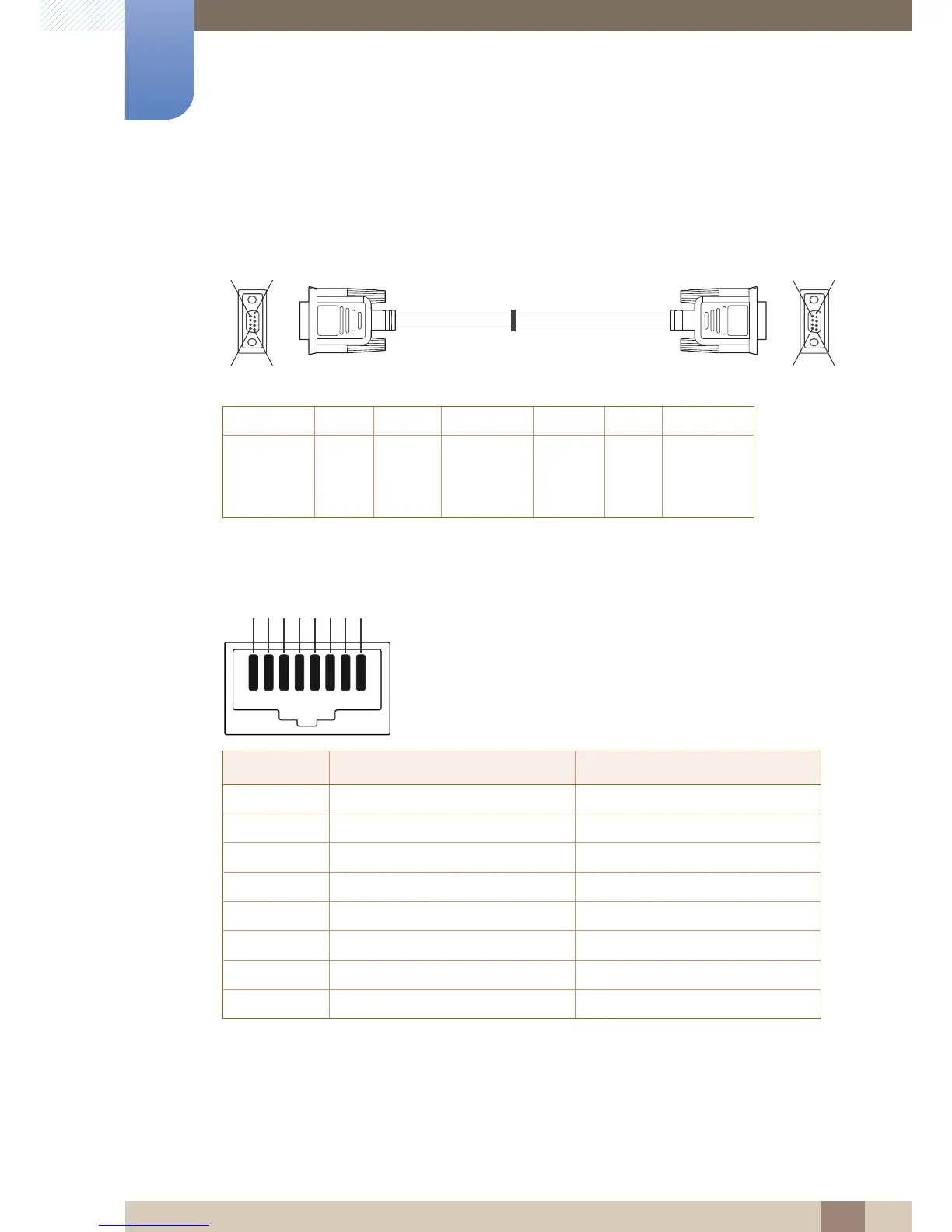

z RS232C cable
Connector: 9-Pin D-Sub
Cable : Cross Cable
LAN Cable
z Pin assignment
-P1- -P1- -P2- -P2-
Female
Rx
Tx
Gnd
2
3
5
-------->
<--------
---------
3
2
5
Tx
Rx
Gnd
Female
Pin No Standard Color Signal
1 White and orange TX+
2 Orange TX-
3 White and green RX+
4 Blue NC
5 White and blue NC
6Green
RX-
7 White and brown NC
8Brown NC




1



1
12345678
