E-21
ENGLISH

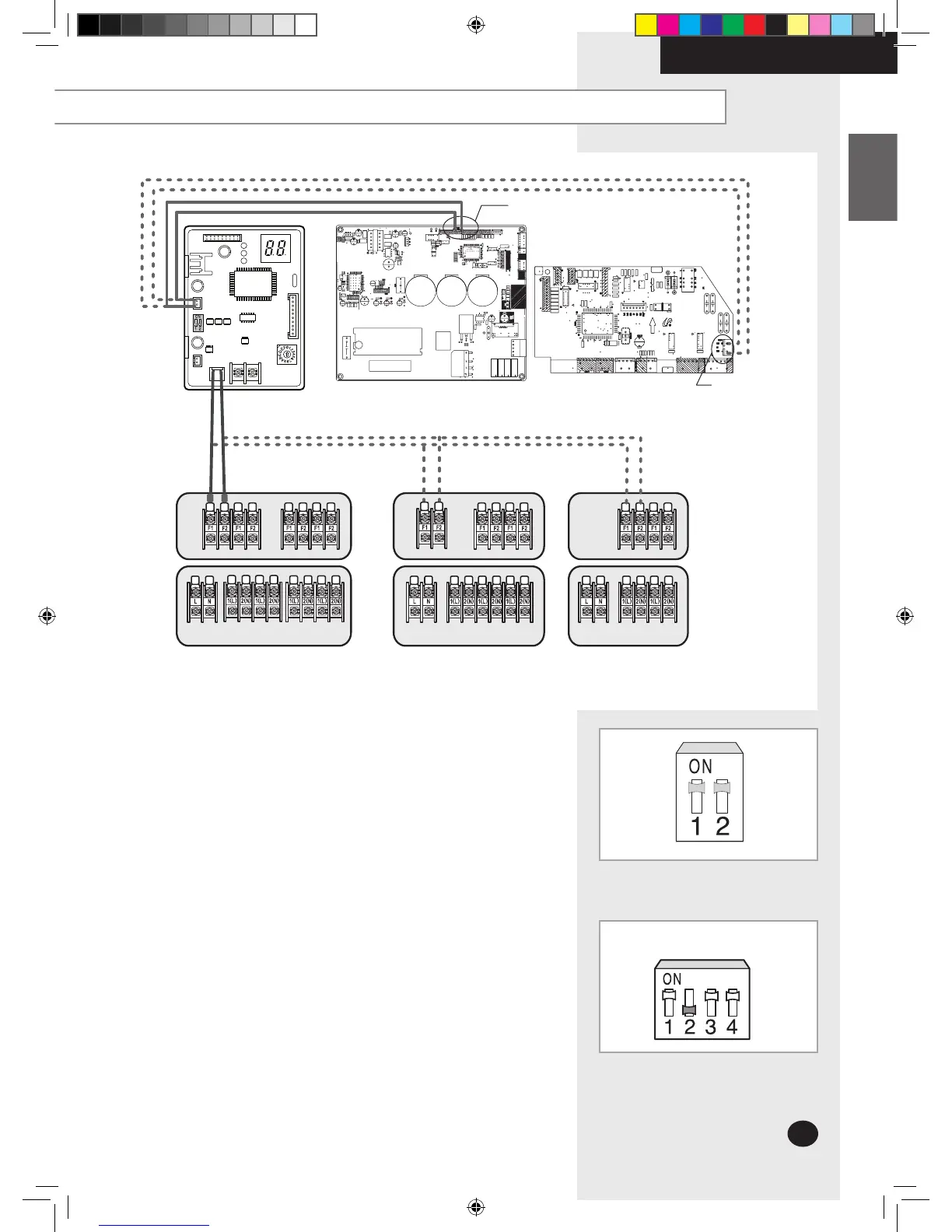

Transmitter Installation (Optional) (Continued)
 
DC 12V (Blue)
Transmitter MAIN PCB
Outdoor unit PCB
Terminal Block in the outdoor unit
Terminal Block in the outdoor unit
Terminal Block in the outdoor unit
MH070FX

A4B/MH080FX

A4B
MH060FX

A3B
MH040FX

A2B/MH040FX

A2C/
MH050FX

A2B/MH050FX

A2C/
MH18VF1X/MH19VF1X
K1 K2 K3 K4
Change DIPswitch-K2 in all
indoor units PCB (K2 : ON
 OFF)
INSTALLING THE OUTDOOR UNIT
(Blue)
CN01(Blue)
MH050FX

A2B/MH050FX

A2C
/MH060FX

A3B/MH070FX

A4B
/MH080FX

A4B
MH040FX

A2B/MH040FX

A2C
/MH18VF1X/MH19VF1X
DC 12V
supply
DC 12V (Blue)
Check the dip switch postion on transmitter
main PCB as the picture above, "turn ON"
