Samsung MH080FXEA4 - Refrigerating Cycle Diagram

Samsung Electronics9-3

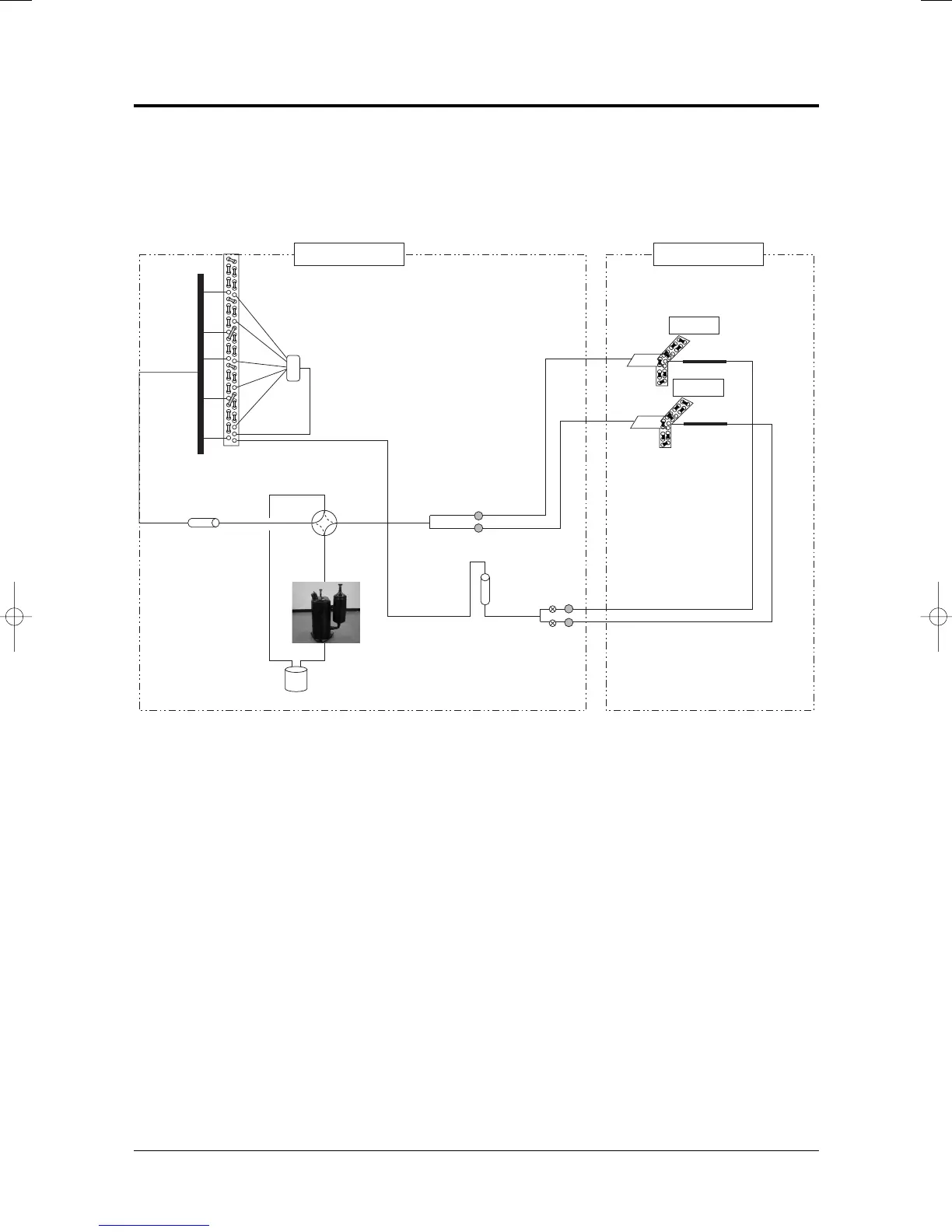

9-2 Refrigerating Cycle Diagram
ex) 2 Rooms
(MH026FPEA+MH026FPEA, MH✳✳✳✳✳-07+MH✳✳VP2-07, MH✳✳✳✳✳-07+MH✳✳✳✳✳-09, MH✳✳VP2-09+MH✳✳✳✳✳-09)
■ MH040FXEA2/MH052FXEA2/MH14VP2X/MH16VP2X/MH18VP2X/MH14VW2X/MH16VW2X/MH18VW2X
1/4"
1/2"
Muffler
4-Way valve
Header
(5/8")
Distributor
3/8"
3/8"
Receiver
1/4"
1/4"
EEV
OUTDOOR UNIT INDOOR UNIT
ROOM A
ROOM B
Inverter
Compressor
Main-
accumulator
1/2"
1/2"
3/8"
2
1
Service
valve
Service
valve
1
2
Sub-
accumulator
