Samsung MH080FXEA4 - Technical Document(Pressure Graph)

15-2Samsung Electronics
15-2 Technical Document (Pressure Graph)
15-2-1 MH052FXEA2 (MH040FXEA2/MH14✳✳2X/MH16✳✳2X/MH18✳✳2X/MH19✳✳2X refer to the 100% combination)

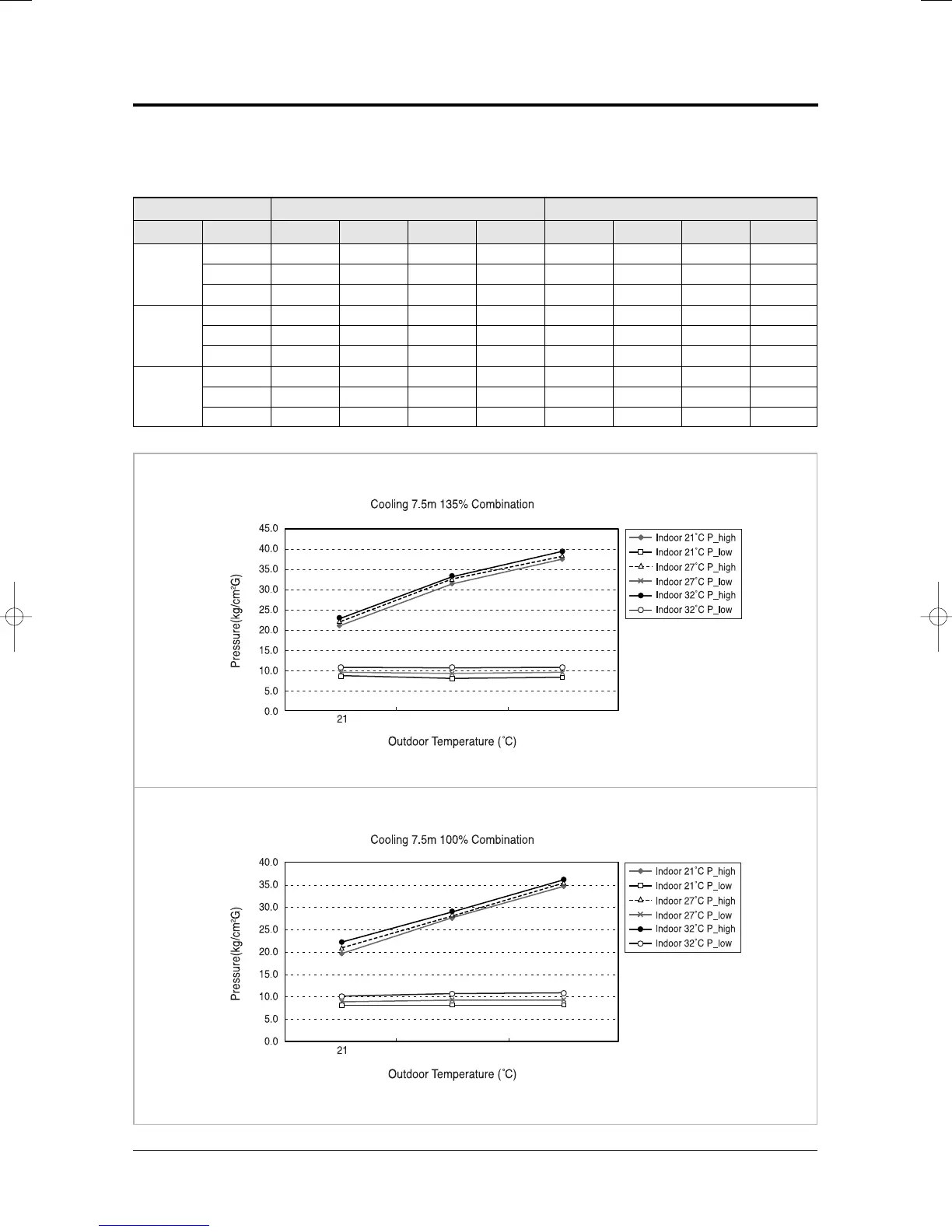

■ Cooling(7.5m–Piping)
Outdoor Indoor P_high P_low T_dis T_suc P_high P_low T_dis T_suc
21 21.10 8.60 61.40 8.70 19.60 8.00 58.30 7.40
21 27 22.00 9.50 59.50 11.30 21.00 8.78 59.30 9.30
32 22.90 10.65 58.50 14.30 22.20 10.11 58.70 12.90
21 31.29 8.00 84.30 6.50 27.70 8.08 79.00 7.30
35 27 32.50 9.10 84.80 8.90 28.10 9.20 77.30 11.30
32 33.06 10.50 82.00 13.80 28.90 10.58 74.30 14.13
21 37.50 8.20 94.20 7.30 34.70 8.10 93.10 7.30
43 27 38.20 9.40 94.30 10.70 35.50 9.20 91.10 10.33
32 39.40 10.70 92.40 14.40 36.10 10.80 88.10 14.60
135% (ex. 035+035) 100% (ex. 026+026)
