Disassembly and Reassembly
4-19Samsung Electronics

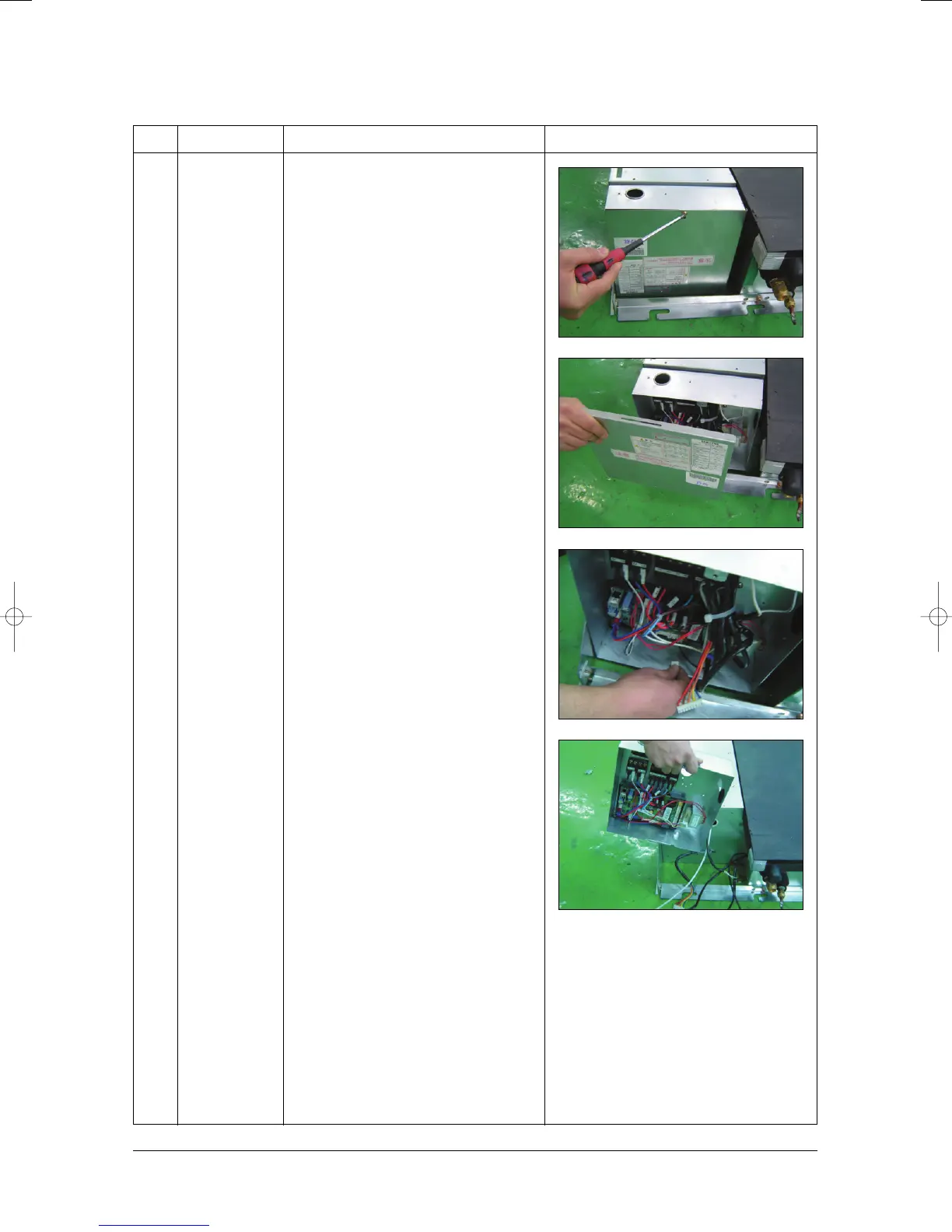

No Parts Procedure Remark
3 Control In 1) After disassembling indicating screw,
detach the Cover-Control.
2) Detach the Motor-Fan in and Sensor
Connector connected to PCB.
3) Hold the Ass'y Control In by hand to lift up
a little and then release the status of
hanging on the hanging slot.
24296A(1)_1 11/11/05 5:03 PM Page 4-19
