Disassembly and Reassembly
Samsung Electronics4-22

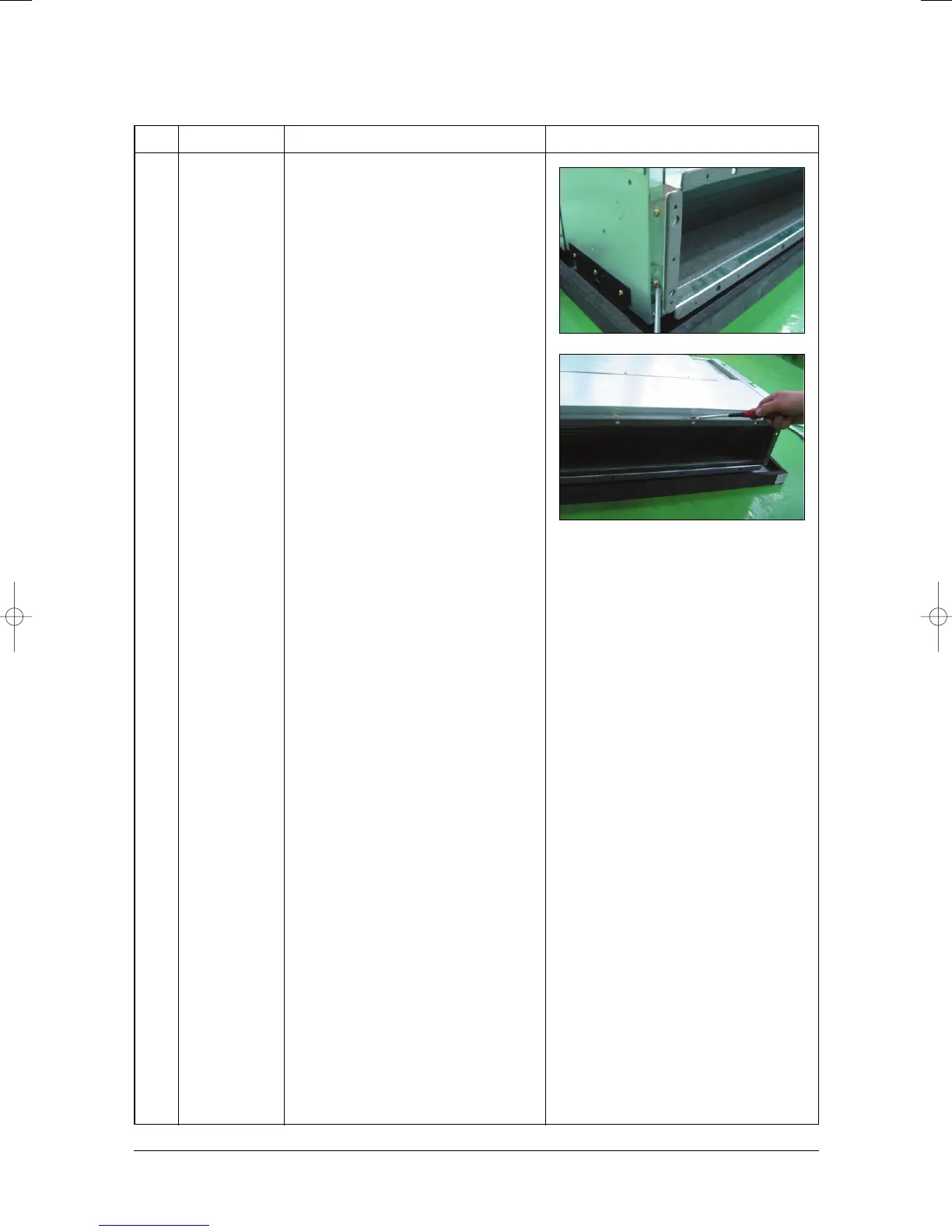

No Parts Procedure Remark
6 Holder Outlet
✳ When connecting canvas to the discharge
side.
1) Disassemble indicating screws.
(each at left and right side)
2) Disassemble indicating screws.
(each at upper and lower side)
✳ After connecting canvas to the
disassembled Ass'y Holder Outlet 2),
attach the Ass'y Holder Outlet to the
set in the reverse order.
