4-2Samsung Electronics
4-1 Outdoor Unit

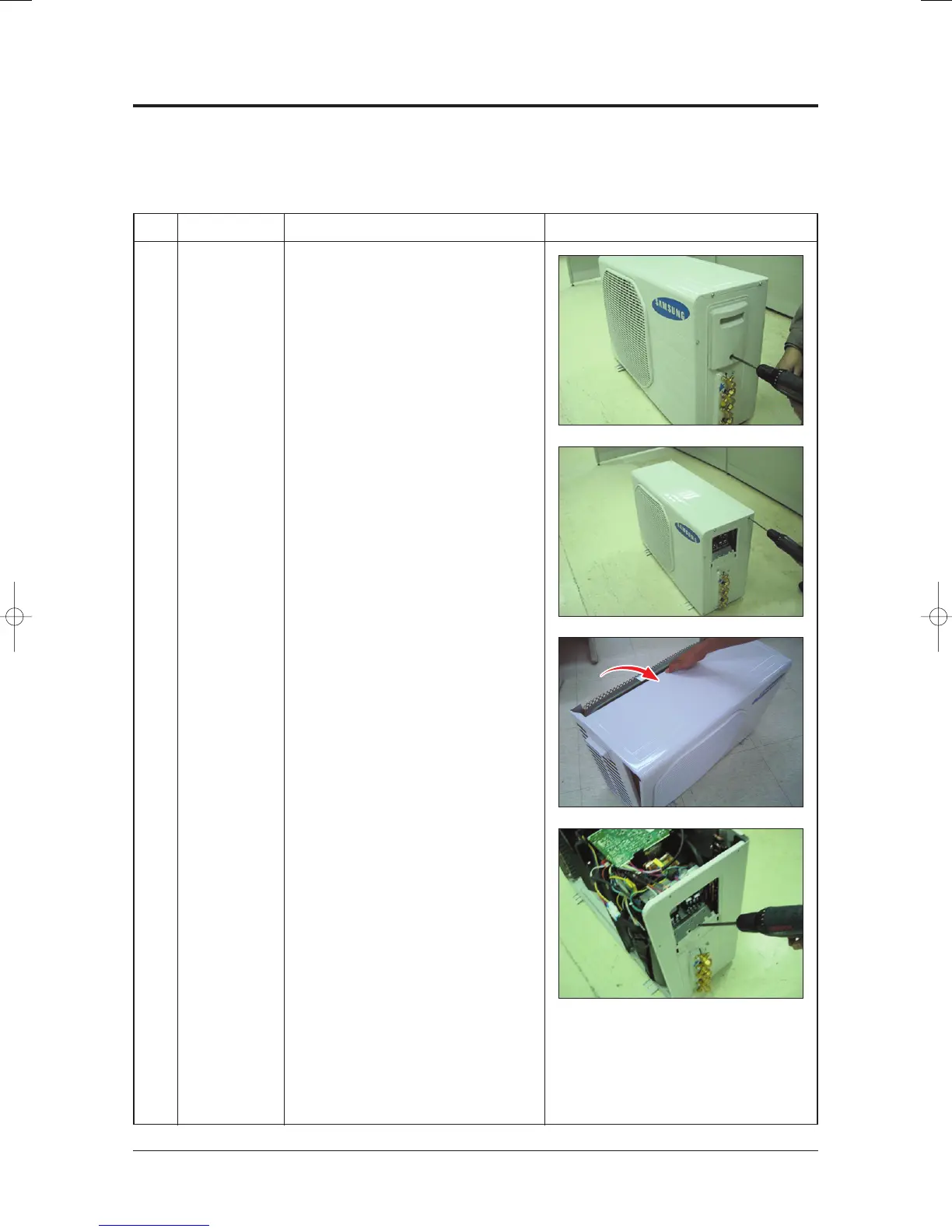

No Parts Procedure Remark
1 Common Work
&
Control Out
1) Loosen 1 fixing screw(CCW)of the
Cover-Side.(Use +Screw Driver.)
2) Loosen each 4 screws(CCW)on both
right and left Cabinet Side edges and a
fixing screw on the Cabinet Front lower
to detach the Cabinet Front.
(Use +Screw Driver.)
3) Detach the Cabinet Front like the picture
on the right side.
4) Loosen 1 screw(CCW)fixed to assemble
Plate Control Out with Cabinet-Side RH.
(Use +Screw Driver.)
Take care of the electrical shock by contact on the charging parts before the discharge after power off. (If takes approximately
2 minutes to discharge.)
4-1-1 MH040FXEA2A
To Next Page
