Disassembly and Reassembly
No Parts Procedure Remark
1 Common Work
&
Control Out

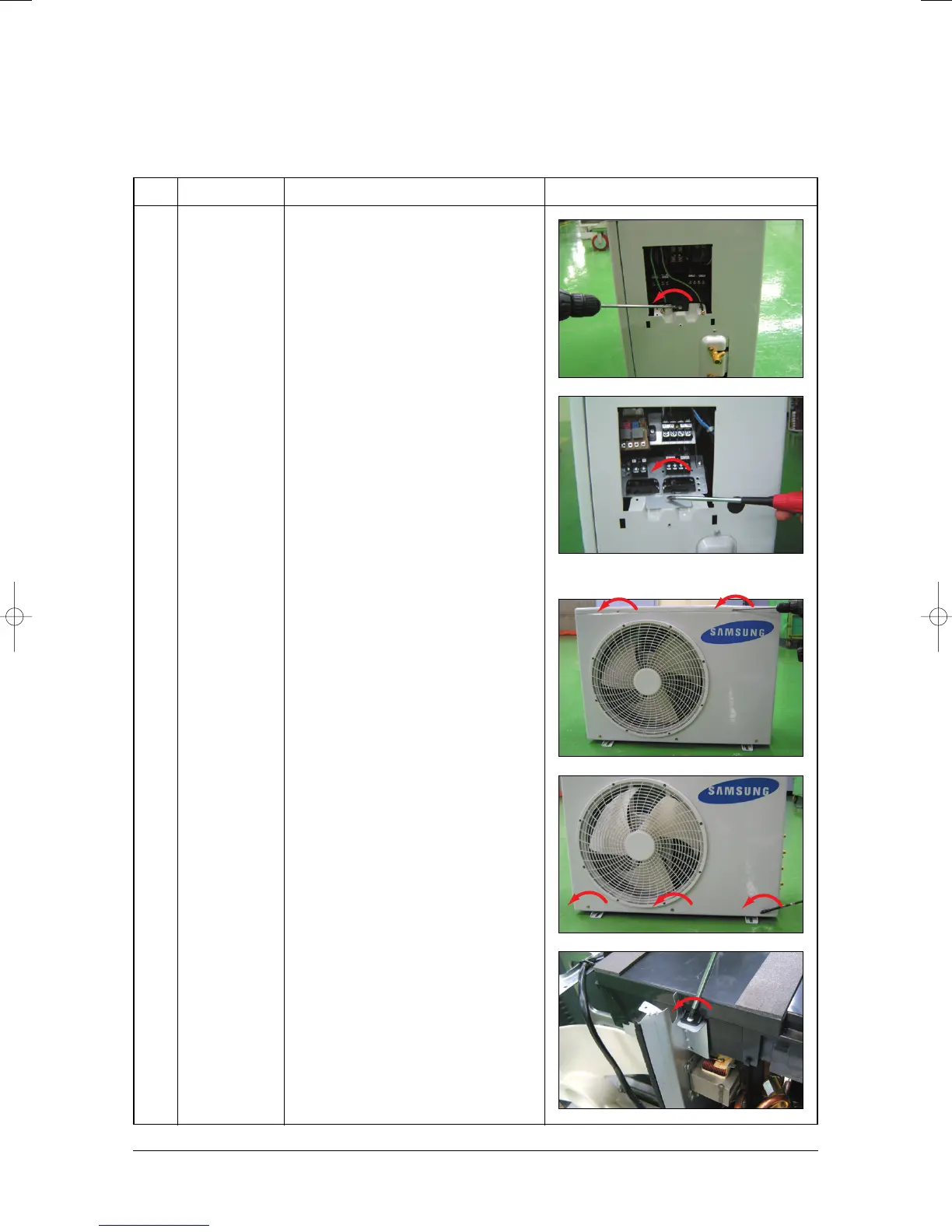

1) Loosen the fixing screw and detach the
Cover-Control.
2) Detach the Cable-Connector Wire from
the Terminal-Block.
3) Loosen the fixing screw of the Ass'y
Control Out.
4) Loosen 8 fixing screws and detach the
Cabinet Upper.
5) Loosen 2 fixing screws, 5 bolts and
detach the Front Cabinet.
6) Loosen 2 fixing screws and pull up the
Control Box.
4-1-2
MH040FXEA2/MH052FXEA2/MH14VP2X/MH16VP2X/MH18VP2X/MH19VP2X/MH14VW2X/MH16VW2X/
MH18VW2X/MH19VW2X/MH052FXEA2A/MH060FXEA3A/MH18VV1X/MH19VV1X
[MH052FXEA2A/MH060FXEA3A/MH18VV1X/
MH19VV1X model only]
