8. PCB Diagram

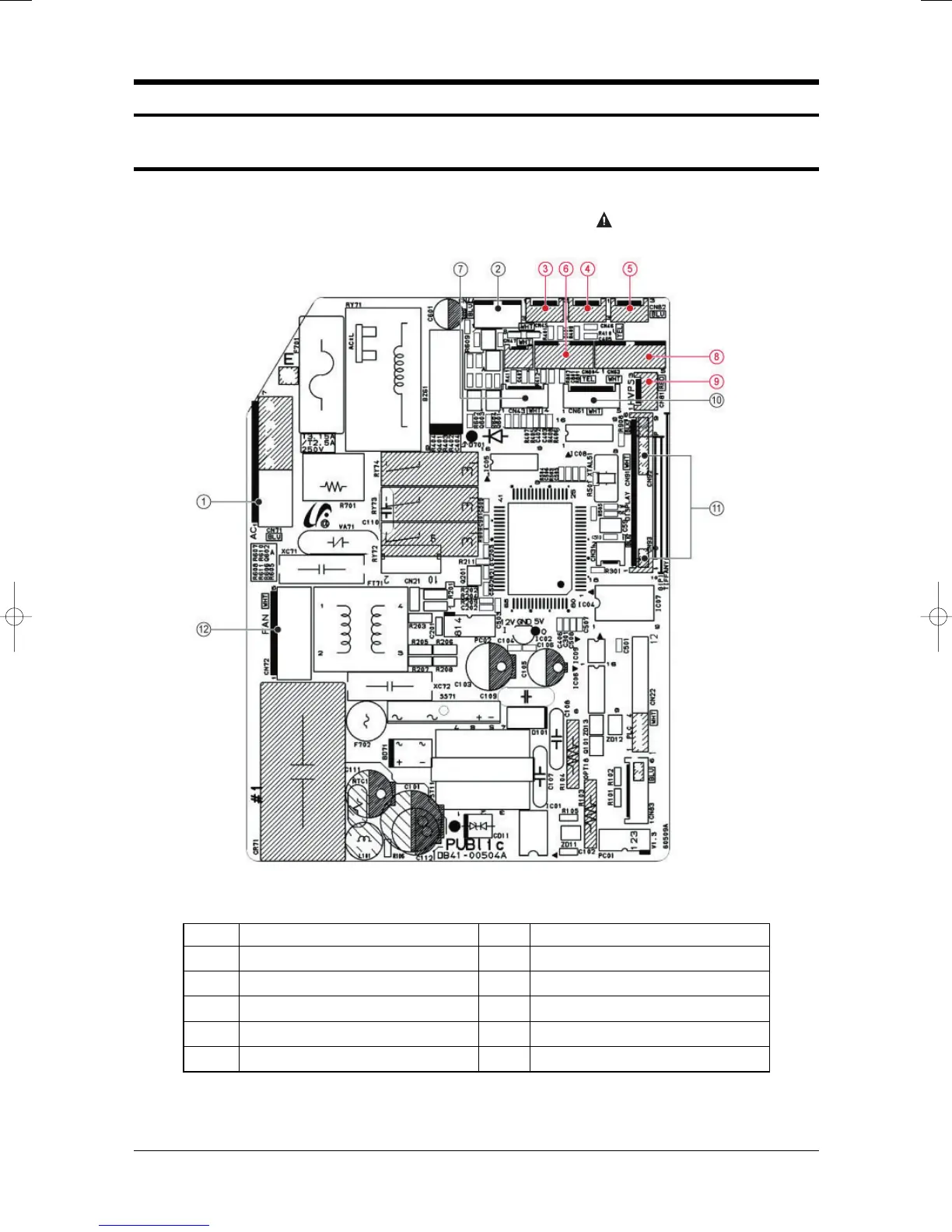

8-1 MAIN PCB(Indoor Unit)
■ MH✳✳✳FNEA/MH✳✳VF1-✳✳(MAIN PCB)
The red number connecter is not used.
! Power
@ Motor RPM Feedback
# Remocon Module
$ Humidity Sensor
% Anions
^ MPI
& Temperature Sensor
* Auto Grill
( HVPS(High voltage Generator)
) BLADE-H Step Motor
1 Display
2 Indoor Fan Motor
