8-10Samsung Electronics

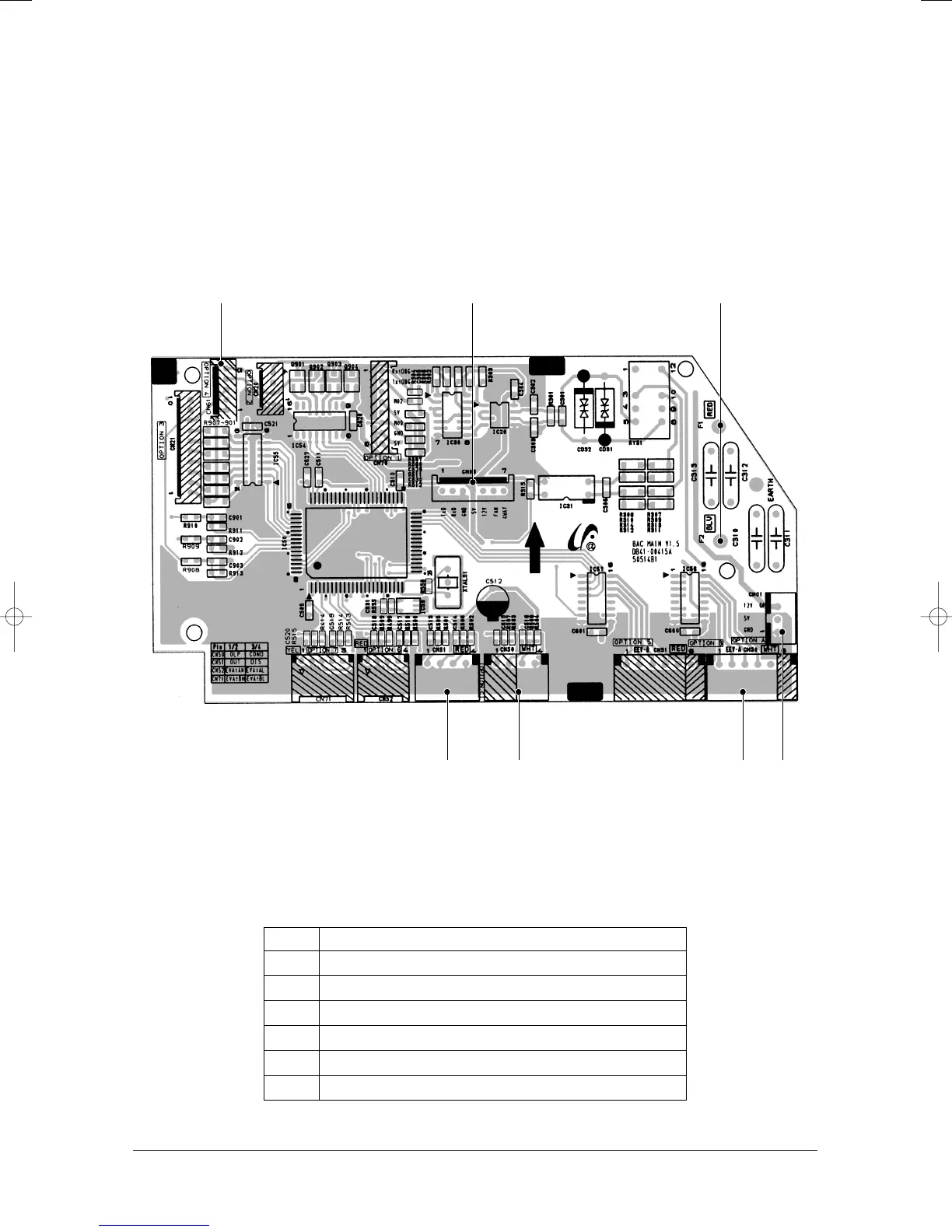

PCB Diagram
!
Inverter PCB Connector : SMW200-07(WHT)
@
Display PCB Connector : SMW200-07(WHT)
#
OLP/Cond.Te temperature Sensor : SMAW250A-04(WHT)
$
Outdoor/Discharge Temperature Sensor L SMAW250A-04(RED)
%
EEV Connector : SMAW250A-06(WHT)
^
DC5V Connector : SMW250-03(WHT)
&
Communication
■ MH040FXEA2B/MH18VF1X/MH19VF1X(MAIN)
$ # % ^
@ ! &
