Disassembly and Reassembly
4-11Samsung Electronics
No Parts Procedure Remark
2
3
Fan
&
Motor
Heat Exchanger
&
Compressor

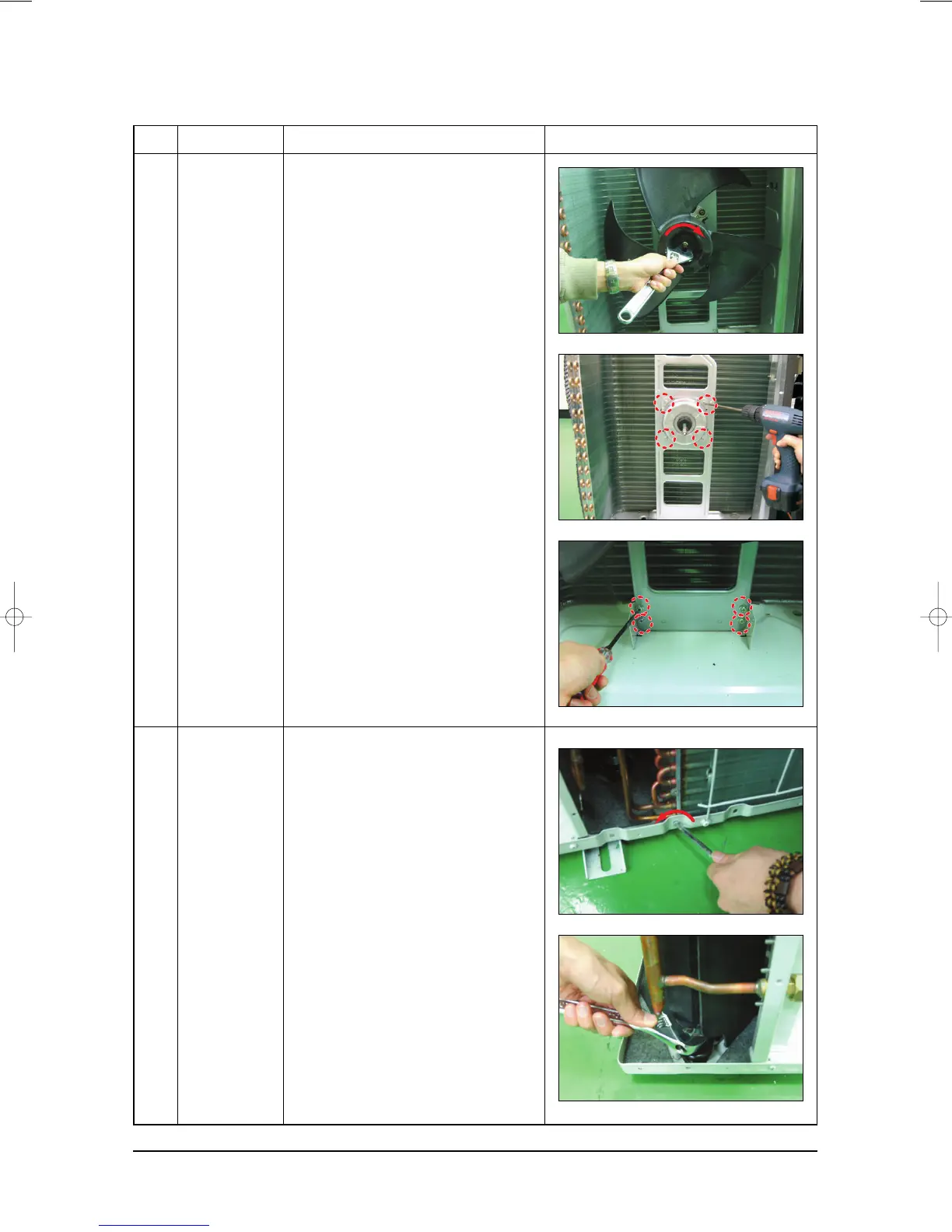

1) Loosen the fixing nut and detach the Fan.
(Use Monkey Spanner.)
2) Loosen 4 fixing bolts and detach the
Motor. (Use +Screw Driver.)
3) Loosen 4 fixing bolts and detach the
Bracket Motor. (Use +Screw Driver.)
1) Release the refrigerant at first.
2) Disassemble the Inlet and Outlet Pipe by
welding.
3) Loosen the fixing screw of the
Heat Exchanger. (Use +Screw Driver.)
4) Detach the Heat Exchanger.
5) Loosen 3 nuts of the Compressor.
(Use Monkey Spanner.)
6) Detach the Compressor.
