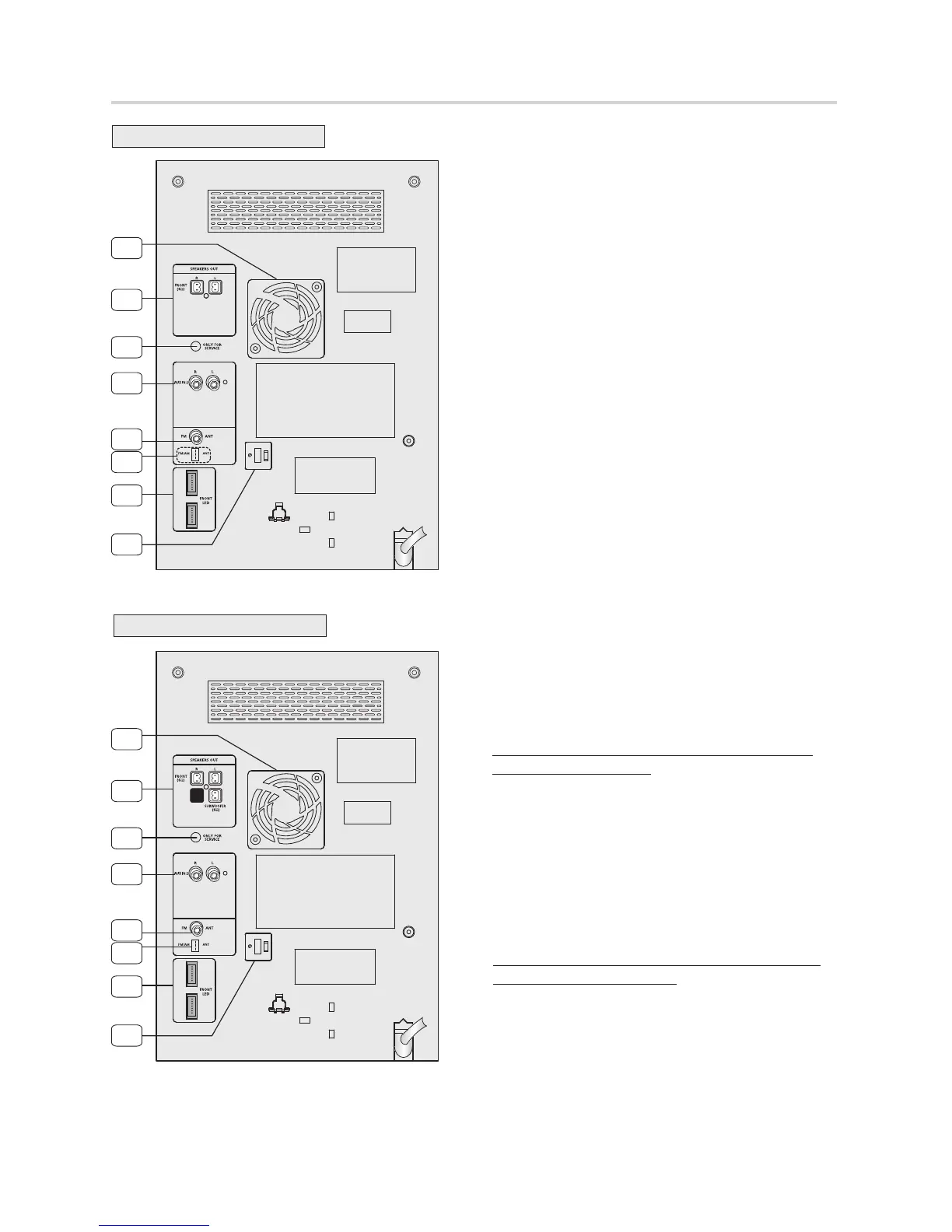

Rear Panel
1. Cooling fan
• Thefanalwaysturnswhenthepowerison.Securea
minimum10cmofclearspacefromallsidesofthefan
wheninstallingtheproduct.
2. 2.0 CH Speaker Connector Terminals (MX-F830)
2.1 CH Speaker Connector Terminals (MX-F850)
The speaker connector terminals are located on the rear of
the system.
1.
To achieve the correct sound quality, insert the speaker
connector cables identified below into the correct speak-
er terminals on the back of the system.
• Leftspeaker(markedL).
• Rightspeaker(markedR).
• TheSubwooferspeakerisonlyforMX-F850
3. ONLY FOR SERVICE
• Thisjackisforserviceonly.Pleasedonotuse.

4. AUX IN 2 Terminals
1.
Use the Audio Cable (not supplied) to connect AUX IN 2 on
the product to Audio Out on an external analog component.
• Besuretomatchconnectorcolors.
• IftheexternalanalogcomponenthasonlyoneAudio
Outjack,connecttoeithertheleftorrightterminal.
• PresstheTUNER/AUXbuttontoselecttheAUX2input.
• WhentheunitisinAUXmode,ifnoneofthebuttonson
thefrontpanelarepushedformorethan8hours,the
powerwillautomaticallyturnoff.
5. FM/AM(optional) Antenna Connector Terminal
The position of FM antenna connector terminal may differ
depending on your region.
This product may not support the AM function depending
on your region.
☛
If this product does not receive AM broadcasts.
Connect the FM antenna:
1.
Connect the FM antenna (optional) to the FM Antenna
jack.
2.
Slowly move the antenna wire until you find a location
where reception is good, then fasten it to a wall or
other rigid surface.
3.
If reception is poor, you may need to install an outdoor
antenna. To do so, connect an outdoor FM antenna to
the FM socket on the rear of the system using a 75Ω
coaxial cable (not supplied).
☛
If this product can receive AM broadcasts. (Optional)
Connect the FM/AM antenna:
1.
Plug the connector on the FM/AM antenna (optional)
into the FM/AM terminal on the rear of the system.
6. LED Terminals of the Front Speakers
Connect the LED cables of the Front Speakers to each LED
Terminals of the system. You can enjoy the special light effect
on your speakers.
7. Voltage Selector (Optional)
Check the position of the voltage selector on the rear of
the system(optional).
This product may not support the Voltage Selector function
depending on your region.
MX-F830
MX-F850
1
1
2
2
3
3
4
4
5
5
5
5
6
6
7
7
