Samsung PC1MWFMAN - Installation Templates; Grill Connection

4
English
1 Way Cassette WindFree Panel

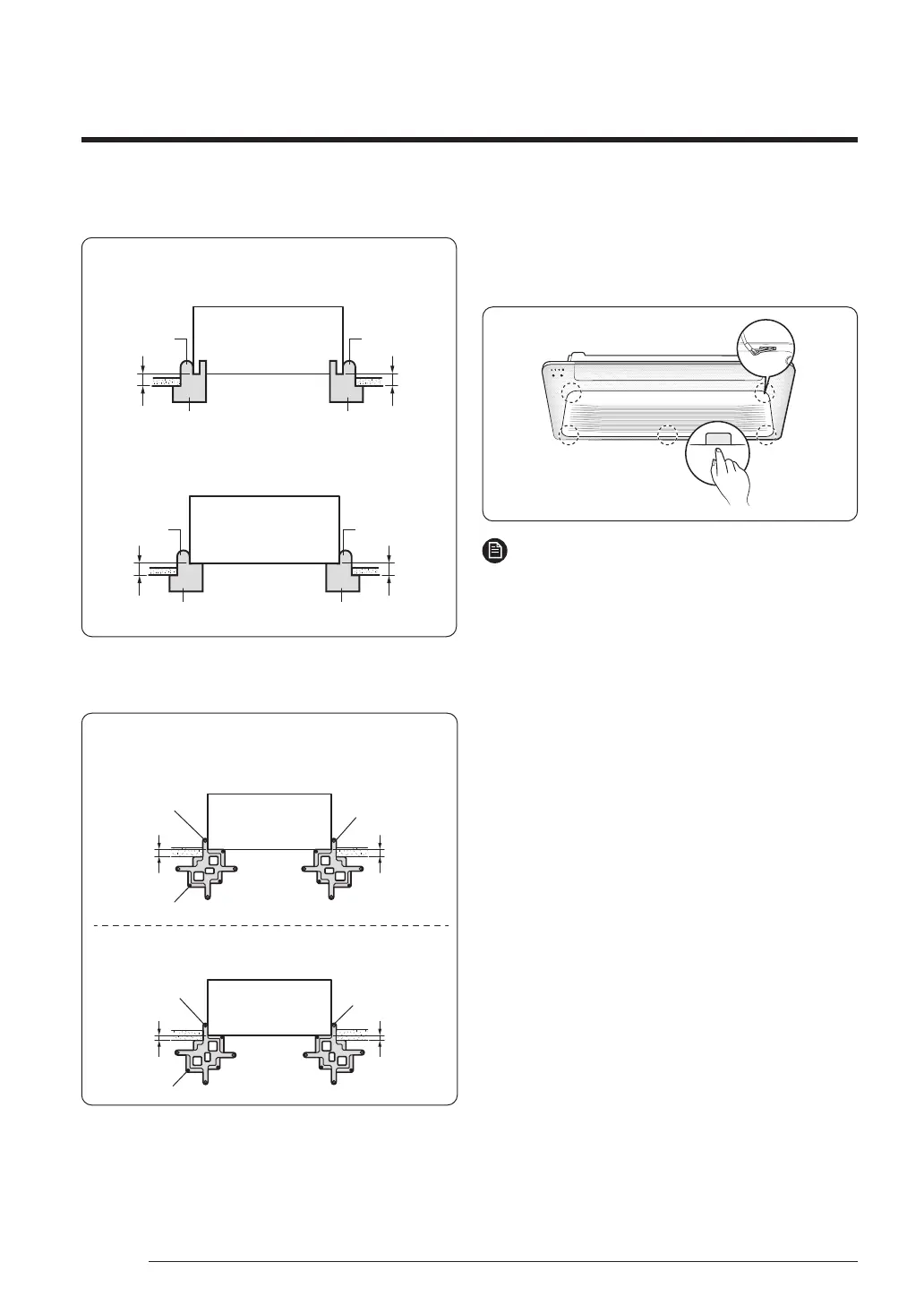

When the installation template is made of paper
ceiling
Jig
8.0
6.0
Air inlet
(Unit: mm)
Slim 1 way cassette (Small, WindFree panel)
Slim 1 way cassette (Medium/Large, WindFree panel)
Air outlet
Indoor unit
ceiling
Jig
10
10
Air inlet
Indoor unit
Air outlet
When the installation template is made of plastic
Slim 1way cassette (MID / LRG, Normal Type)
Slim 1way cassette (MID / LRG, WindFree Type)
(Unit: mm)
②
Normal MID / LRG
(Inlet / Outlet)
① WindFree MID / LRG
(Inlet / Outlet)
1510 1510
② Normal MID / LRG
(Inlet / Outlet)
① WindFree MID / LRG
(Inlet / Outlet)
Indoor unit
Indoor unit
Jig
Jig
6 Connect the grill.
• Hook the 2 panel safety hooks onto both sides of the
grill.
• Push the [PUSH] sign to fix the grill.
PUSH
NOTE
• Before working on the grill, be sure to hook the panel
safety hooks onto both sides of the grill to prevent it
from falling during work.
