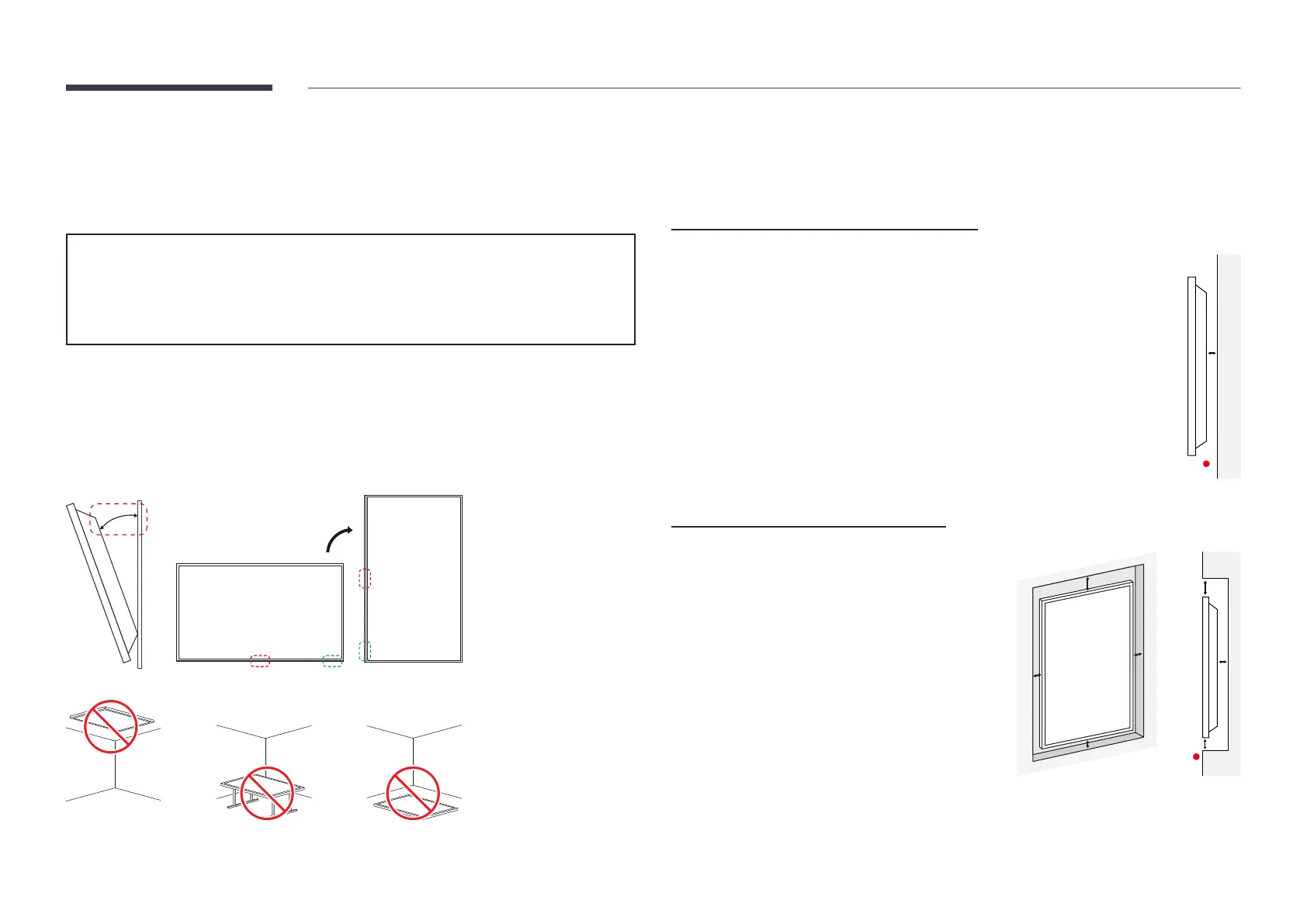

Before Installing the Product (Installation
Guide)
To prevent injury, this apparatus must be securely attached to the floor/wall in accordance
with the installation instructions.
• Ensure that an authorised installation company installs the wall mount.
• Otherwise, it may fall and cause personal injury.
• Make sure to install the specified wall mount.
Tilting Angle and Rotation
"
Contact Samsung Customer Service Centre for further details.
• The product can be tilted at a maximum angle of 15° from a perpendicular wall surface.
• To use the product in Portrait mode, rotate clockwise until the power indicator (A or B) is
positioned as shown in the images below.
15°
A
B
A
B
"
Do not use this model installed on a ceiling, floor, or table.
Ventilation
"
Contact Samsung Customer Service Centre for further details.
Installation on a Perpendicular Wall
A Minimum 40 mm
B Ambient temperature: Under 35 °C
"
When installing the product on a perpendicular wall, allow at least
40 mm of space between the product and wall surface for ventilation
and ensure that the ambient temperature is kept below 35 °C.
A
B
Installation on an Indented Wall
A Minimum 40 mm
B Minimum 70 mm
C Minimum 50 mm
D Minimum 50 mm
E Ambient temperature: Under 35 °C
"
When installing the product on an indented
wall, allow at least the space specified above
between the product and wall for ventilation
and ensure that the ambient temperature is
kept below 35 °C.
B
D
C
D
B
C
E
A

Samsung QB49R Specifications

General

Color gamut	92 %
Pixel pitch	0.093 x 0.279 mm
Response time	8 ms
Display diagonal	49 \
Display brightness	350 cd/m²
Display technology	LED
Vertical scan range	48 - 75 Hz
Horizontal scan range	30 - 81 kHz
LED backlighting type	Edge-LED BLU
Display number of colors	16.78 million colors
Active display area (W x H)	1073.78 x 604 mm
Dynamic contrast ratio marketing name	Mega Contrast
Package depth	152 mm
Package width	1247 mm
Package height	772 mm
Package weight	18000 g
Ethernet LAN	Yes
VGA (D-Sub) input ports	0
Ethernet LAN (RJ-45) ports	1
AC input voltage	100 - 240 V
Heat dissipation	470.5 BTU/h
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G
Power consumption (sleep)	0.5 W
Power consumption (standby)	- W
Power consumption (typical)	103 W
Cables included	AC
L2 cache	2048 KB
User memory	4.12 GB
Memory clock speed	1500 MHz
Purpose	Universal
Operating hours (hours/days)	-
Internal memory	2.5 GB
Processor cores	4
Processor model	A72
Processor family	ARM Cortex
Processor frequency	1.7 GHz
Audio formats supported	AC3
Image formats supported	JPEG, PNG
Video formats supported	AVC, AVS, H.263, H.264, HEVC, MPEG1, MPEG2, MPEG4, VC-1, VP8, VP9
Internal storage capacity	8 GB
Operating system installed	Tizen 4.0
Certification	60950-1, EMC B
Product color	Black
Product design	Digital signage flat panel
Bezel width (side)	9.2 mm
Placement supported	Indoor
Bezel width (bottom)	11.2 mm
Panel mounting interface	200 x 200 mm
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80 %
Sustainability certificates	ENERGY STAR
RMS rated power	20 W
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth	46.3 mm
Width	1099.2 mm
Height	631.5 mm
Weight	13500 g
