Samsung QB55R Manual

3
Preparations
Chapter 01
"
Contact the vendor where you
purchased the product if any
components are missing.
"
The appearance of the components
may differ from the images shown.
"
A stand is not provided with the
product. To install a stand, you can
purchase one separately.
"
The RS232C adapter can be used to
connect to another monitor using the
D-SUB (9-pin) type RS232C cable.

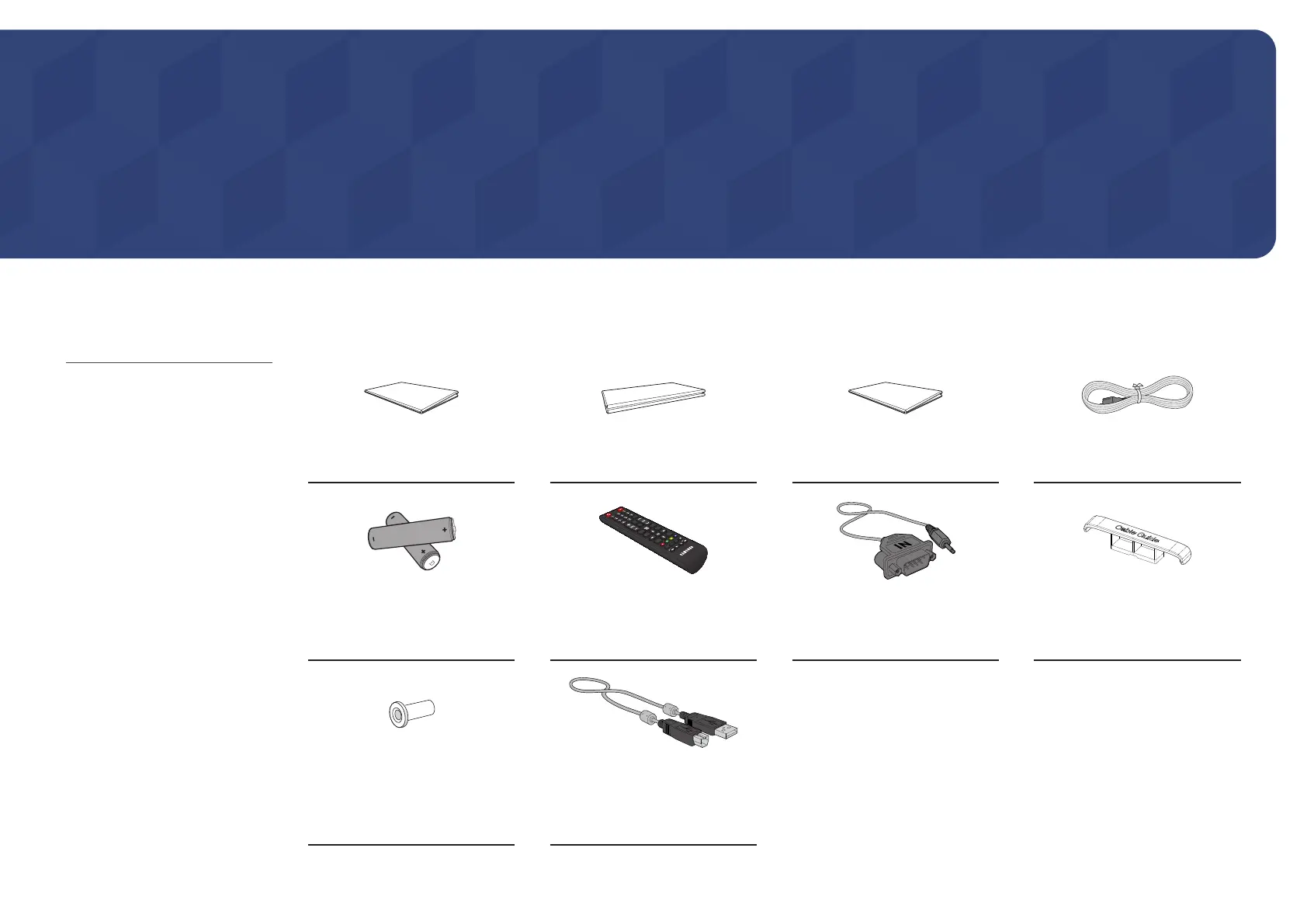

Checking the Components
Quick Setup Guide
Warranty card
(Not available in some locations)
Regulatory guide Power cord
Batteries (AAA x 2)
(Not available in some locations)
Remote Control RS232C adapter
HOLDER-CABLE
(Supported models: Q*65R,
Q*75R, Q*85R, QB98R, QE82R)
Holder-Ring x 4
(Supported models: Q*43R,
Q*49R, Q*50R, Q*55R, Q*65R,
Q*75R, QM43R-T, QM55R-T)
TOUCH OUT cable x 2
(Supported models: QMR-T)

Samsung QB55R Specifications

General

Color gamut	92 %
Pixel pitch	0.105 x 0.315 mm
Response time	8 ms
Display diagonal	55 \
Display brightness	350 cd/m²
Display technology	LED
Vertical scan range	48 - 75 Hz
Horizontal scan range	30 - 81 kHz
LED backlighting type	Edge-LED BLU
Contrast ratio (typical)	4700:1
Display number of colors	16.78 million colors
Active display area (W x H)	1209.6 x 680.4 mm
Dynamic contrast ratio marketing name	Mega Contrast
AC input voltage	100 - 240 V
Heat dissipation	487.6 BTU/h
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G
Power consumption (sleep)	0.5 W
Power consumption (standby)	- W
Power consumption (typical)	108 W
Package depth	163 mm
Package width	1402 mm
Package height	858 mm
Package weight	23600 g
L2 cache	2048 KB
User memory	4.12 GB
Plug and Play	Yes
Memory clock speed	1500 MHz
VGA (D-Sub) input ports	0
Ethernet LAN (RJ-45) ports	1
Purpose	Universal
Operating hours (hours/days)	16/7
Internal memory	2.5 GB
Processor cores	4
Processor family	ARM Cortex
Processor frequency	1.7 GHz
Audio formats supported	AC3
Image formats supported	JPEG, PNG
Video formats supported	AVC, AVS, H.263, H.264, HEVC, MPEG1, MPEG2, MPEG4, VC-1, VP8, VP9
Internal storage capacity	8 GB
Operating system installed	Tizen 4.0
Certification	60950-1, EMC B
Product color	Black
Product design	Digital signage flat panel
Bezel width (side)	9.2 mm
Placement supported	Indoor
Bezel width (bottom)	11.2 mm
Panel mounting interface	200 x 200 mm
Operating temperature (T-T)	0 - 40 °C
Sustainability certificates	ENERGY STAR
RMS rated power	20 W
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth	46.3 mm
Width	1235.1 mm
Height	707.9 mm
Weight	18100 g
