Before Installing the Product (Installation
Guide)
To prevent injury, this apparatus must be securely attached to the floor/wall in accordance
with the installation instructions.
• Ensure that an authorised installation company installs the wall mount.
• Otherwise, it may fall and cause personal injury.
• Make sure to install the specified wall mount.

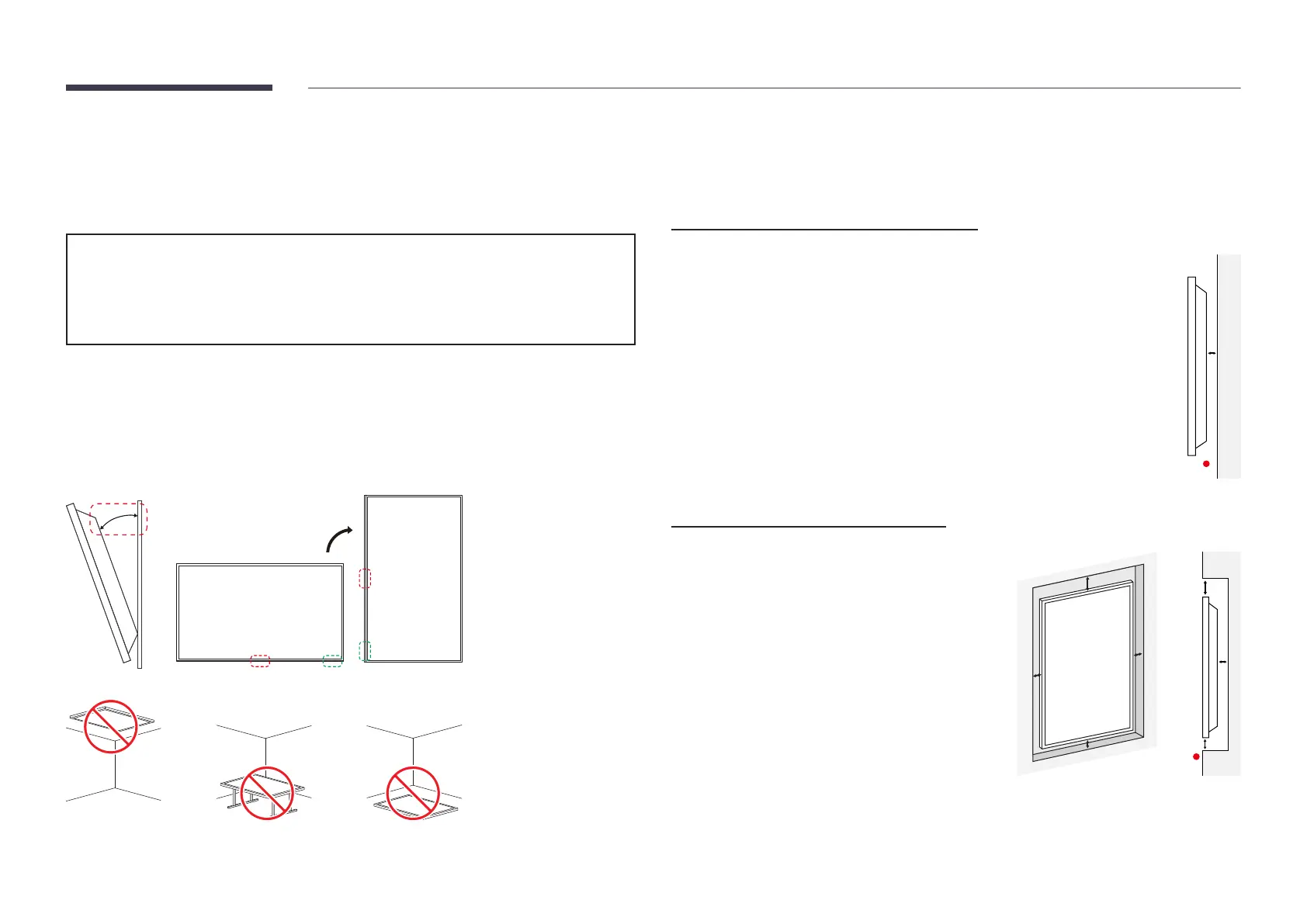

Tilting Angle and Rotation
"
Contact Samsung Customer Service Centre for further details.
• The product can be tilted at a maximum angle of 15° from a perpendicular wall surface.
• To use the product in Portrait mode, rotate clockwise until the power indicator (A or B) is
positioned as shown in the images below.
15°
A
B
A
B
"
Do not use this model installed on a ceiling, floor, or table.
Ventilation
"
Contact Samsung Customer Service Centre for further details.
Installation on a Perpendicular Wall
A Minimum 40 mm
B Ambient temperature: Under 35 °C
"
When installing the product on a perpendicular wall, allow at least
40 mm of space between the product and wall surface for ventilation
and ensure that the ambient temperature is kept below 35 °C.
A
B
Installation on an Indented Wall
A Minimum 40 mm
B Minimum 70 mm
C Minimum 50 mm
D Minimum 50 mm
E Ambient temperature: Under 35 °C
"
When installing the product on an indented
wall, allow at least the space specified above
between the product and wall for ventilation
and ensure that the ambient temperature is
kept below 35 °C.
B
D
C
D
B
C
E
A

Samsung QM32R Specifications

General

Pixel pitch	0.36 x 0.36 mm
Response time	8 ms
Display diagonal	32 \
Display brightness	400 cd/m²
Display technology	-
Vertical scan range	48 - 75 Hz
Horizontal scan range	30 - 81 kHz
LED backlighting type	Edge-LED
Contrast ratio (typical)	5000:1
Display number of colors	16.78 million colors
Display diagonal (metric)	80 cm
Dynamic contrast ratio marketing name	Mega Contrast
DVI port	No
USB port	Yes
USB ports quantity	2
HDMI ports quantity	3
VGA (D-Sub) input ports	0
Package depth	120 mm
Package width	812 mm
Package height	512 mm
Package weight	8000 g
Product color	Black
Product design	Digital signage flat panel
Placement supported	Indoor
Bezel width (bottom)	8.8 mm
Panel mounting interface	200 x 200 mm
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80 %
Purpose	Universal
Operating system installed	Tizen 4.0
AC input voltage	100 - 240 V
AC input frequency	50 / 60 Hz
Power consumption (sleep)	0.5 W
Power consumption (standby)	- W
Power consumption (typical)	44 W
Annual energy consumption	64 kWh

Weight and Dimensions

Depth	34.6 mm
Width	725.1 mm
Height	419.6 mm
Weight	5700 g
