Connecting the touchscreen monitor
"
Connecting parts may differ in different products.
Connecting to a PC
1

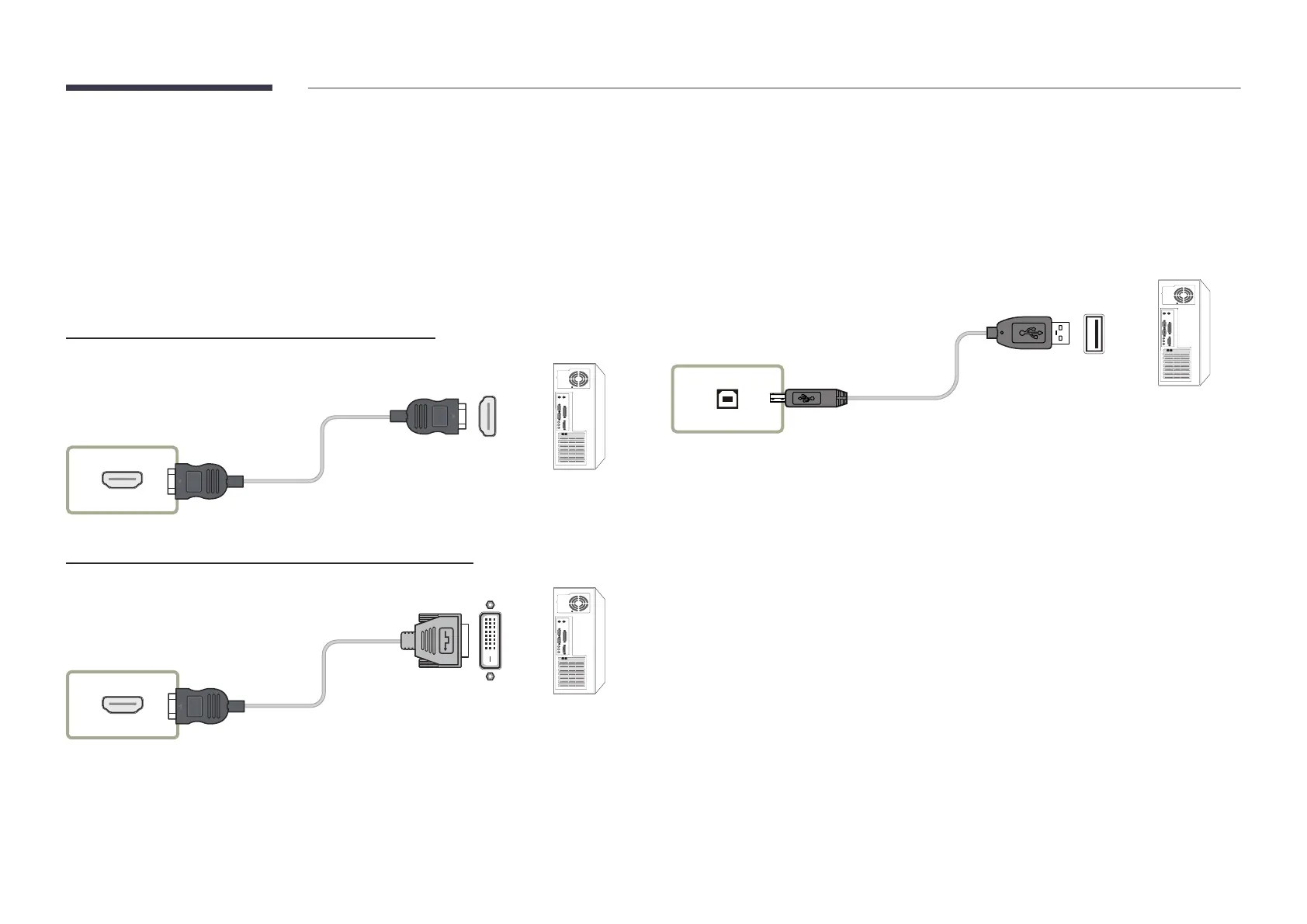

Connect your PC to the product using a HDMI or HDMI-DVI cable.
Connecting the devices using a HDMI cable
HDMI IN
Connecting the devices using a HDMI-DVI cable
HDMI IN
2
Connect the power cable from the product to the power outlet.
3
After the power supply is connected, the product automatically detects and switches to the
connected input source.
"
If the screen appears blank, turn the product off and then on again.
4
Connect the TOUCH OUT PC port on the product to a USB port on the PC using the TOUCH
OUT cable.
TOUCH OUT PC
Connecting to a laptop or tablet PC
A laptop or tablet PC can be connected to the product using the same method when connecting
a desktop PC.
"
If touchscreen control is not available after the devices are connected
– Make sure to connect the HDMI or HDMI-DVI cable before connecting the TOUCH OUT
cable.
– If touchscreen control is still unavailable after the cables are connected properly,
disconnect the TOUCH OUT cable and then connect it again.

Samsung QM32R Specifications

General

Pixel pitch	0.36 x 0.36 mm
Response time	8 ms
Display diagonal	32 \
Display brightness	400 cd/m²
Display technology	-
Vertical scan range	48 - 75 Hz
Horizontal scan range	30 - 81 kHz
LED backlighting type	Edge-LED
Contrast ratio (typical)	5000:1
Display number of colors	16.78 million colors
Display diagonal (metric)	80 cm
Dynamic contrast ratio marketing name	Mega Contrast
DVI port	No
USB port	Yes
USB ports quantity	2
HDMI ports quantity	3
VGA (D-Sub) input ports	0
Package depth	120 mm
Package width	812 mm
Package height	512 mm
Package weight	8000 g
Product color	Black
Product design	Digital signage flat panel
Placement supported	Indoor
Bezel width (bottom)	8.8 mm
Panel mounting interface	200 x 200 mm
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80 %
Purpose	Universal
Operating system installed	Tizen 4.0
AC input voltage	100 - 240 V
AC input frequency	50 / 60 Hz
Power consumption (sleep)	0.5 W
Power consumption (standby)	- W
Power consumption (typical)	44 W
Annual energy consumption	64 kWh

Weight and Dimensions

Depth	34.6 mm
Width	725.1 mm
Height	419.6 mm
Weight	5700 g
