operating _27

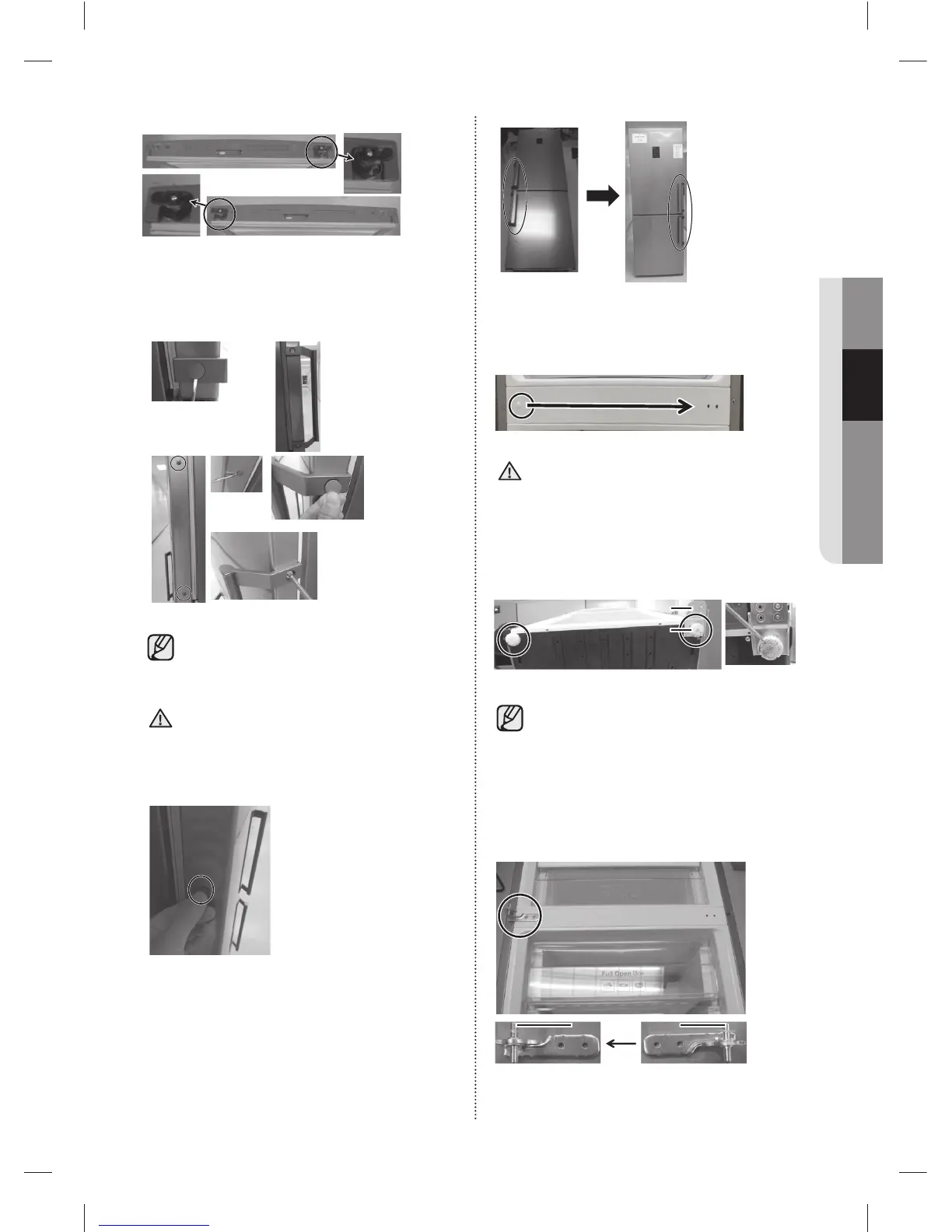

02 OPERATING
Basic position
Basic position
Position reversed
Position reversed
10. Remove the Cap Handle and the Screws by
Flat-Head (-) screwdriver.
(1)
(1)
(2)
(2)
(1)
(1)
(2)
(2)
(3)
(3)
Remove the Cap by Flat-Head (-)
screwdriver and assemble the Handle and
Cap-Handle.
Be careful the Scratch, when
disassembling the Cap.
11. Assemble the Cap.
CAUTION
12. Switch the position of cap screw and cap.
Pull out using a thin fl at screwdriver.
Be careful not to injure yourself during
operation.
13. Lay the refrigerator carefully on it’s back.
Remove the leg (unscrew in an anti-clockwise
direction) and the Hinge Low.
Hinge Leg
Hinge Leg
Hinge Low
Hinge Low
To protect the refrigerator damage, cut a
large section of the cardboard carton and
place it under the refrigerator.
14. Assemble the Middle hinge using the Phillips
Head (+) screwdriver. (Assemble Washer
upwardly before assembling Middle hinge.)
Washer (optional)
Washer (optional)
CAUTION
