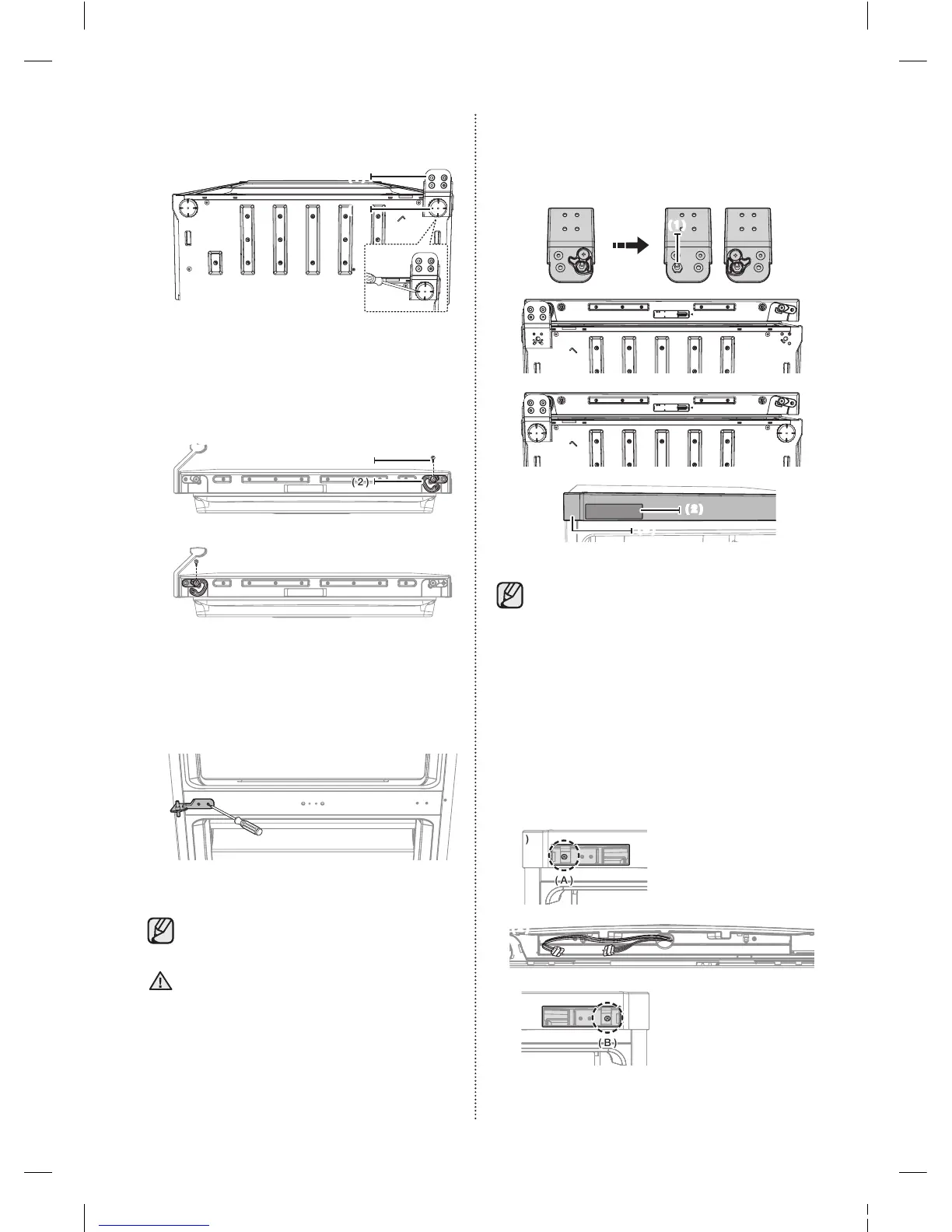

Lay the refrigerator carefully. 7.
Remove the Leg ( 1 ) and the Hinge Low ( 2 ).
Remove the screw ( 8. 1 ) on the bottom right
side of fridge and freezer door. Switch Lever
Auto Closer ( 2 ) from right to the left.
Assemble the Middle hinge by the Phillips Head 9.
(+) screwdriver. First of all, assemble the Freezer
door and Hinge Mid. And then assemble Hinge
Low and Fridge Door with Assy Hinge Up.
Assembling procedure of the Door
• Hinge Mid
→
Freezer Door
→
Hinge
Low
→
Fridge Door with Assy Hinge Up
Be careful not to injure yourself during
operation.
CAUTION
Switch the position of Bottom hinge and Leg 10.
(Right
→
Left).
Assemble the Hinge Low after putting the
Freezer Door in the middle hinge.
• Disassemble the Guide auto close and
the Shaft-hinge ( 1 ).
Assemble the Shaft-hinge and the the •
Guide auto close like this Picture.
Put the Cap Cover Control Panel ( • 2 )
out from the Cover Control Panel ( 3 )
like the Picture.
After removing a Cap Cover Control Panel ( 11. 1 ),
switch the Wire Door ( 2 ) direction to opposite
side on Fridge Door (Display model only).
Remove two screwes ( A ) and ( B ).
before
after
( 2 )
( 1 )
( 2 )
( 1 )
( 3 )
( 2 )
( 1 )
( 2 )
( A )
( 1 )
( 3 )
( B )
