Installing the Refrigerant Pipe Work
(Continued)

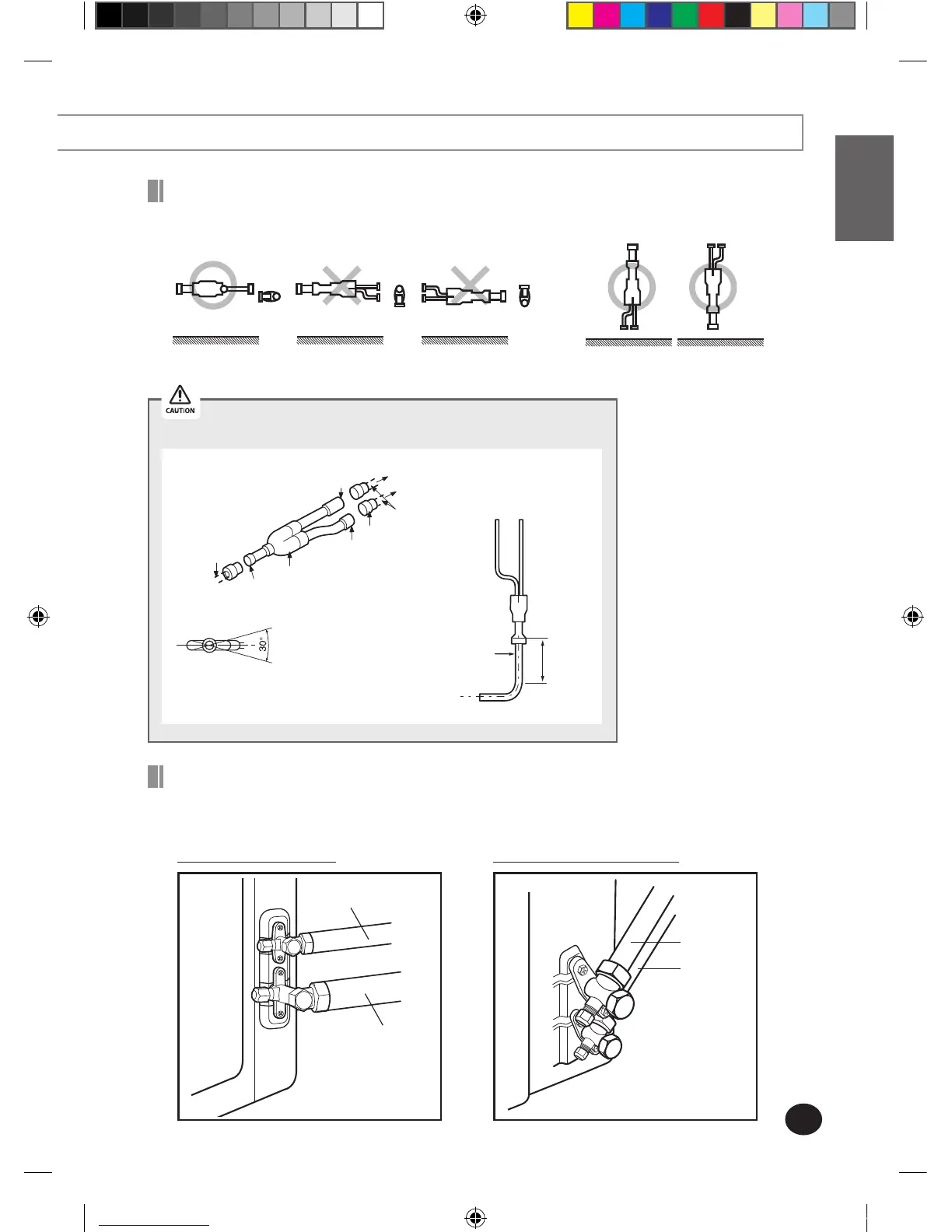

Installing the Y-Joint
Install the Y-joint ‘horizontally’ or ‘vertically’.
< Install horizontally>
< Install vertically>
Make certain of a minimum distance in straight line.
Maintain ±15° start
from the horizontal line
Install the Y-joint within ±15° from the
horizontal or vertical line.
500mm
or more
Main pipe
To outdoor unit
Pipe in use
on the site
Front
Rear
Rear
Gas/Liquid side Y-joint
Pipe in use
on the site
Socket
To other branching
pipe or indoor unit
Connecting the Outdoor Unit Pipe
Install pipe work within maximum allowable length, height and length after branching.
Make sure there are no cracks on pipe bends.
6/7/8kW Outdoor unit
Liquid side
Gas side
11/14/16kW Outdoor unit
Liquid side
Gas side
To Next Page
