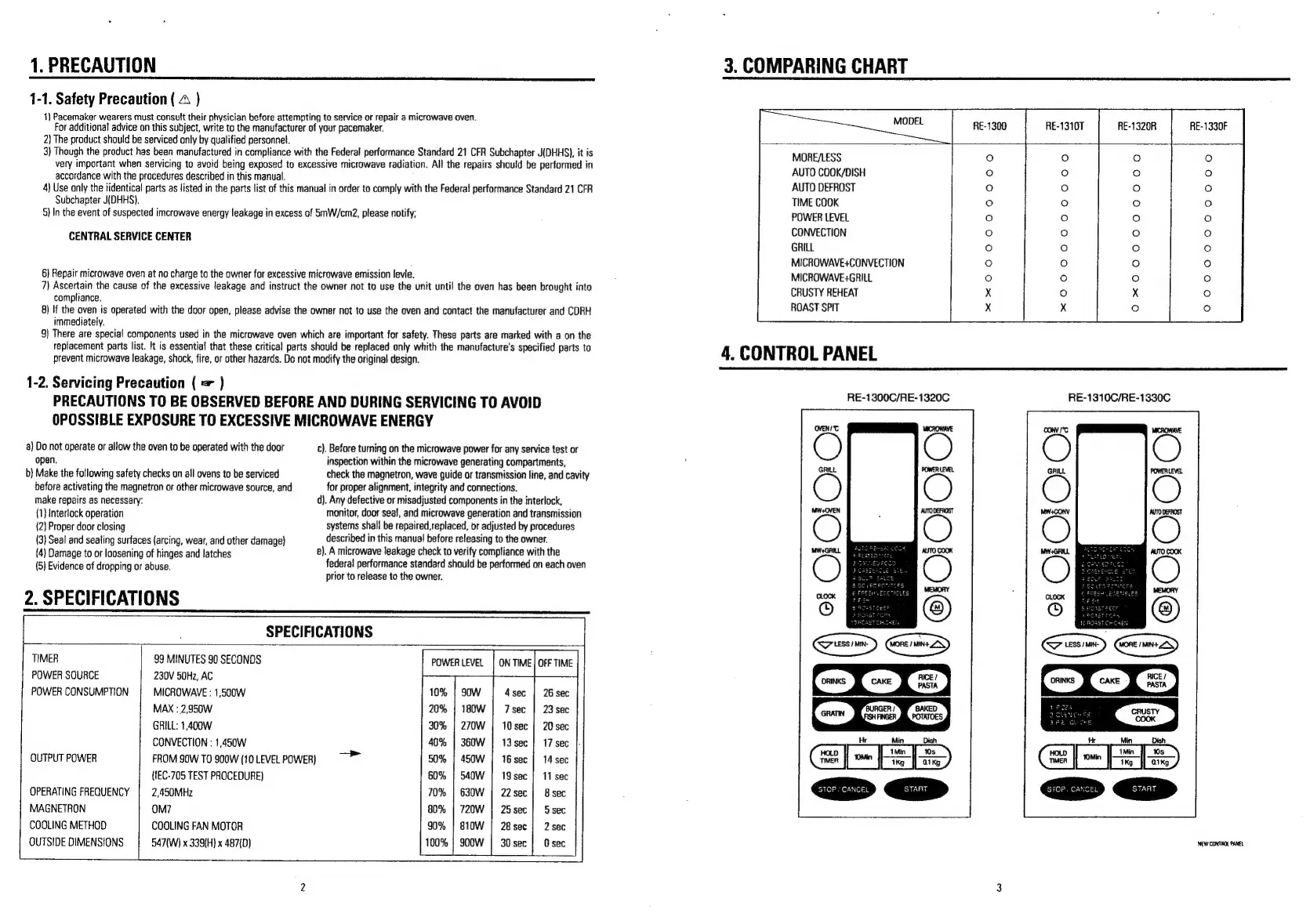

1. PRECAUTION
1-1. Safety Precaution (4 )
1) Pacemaker wearers must consult their physician before attempting to service or repair a microwave oven.
For additional advice on this subject, write to the manufacturer of your pacemaker.
2) The product should be serviced only by qualified personnel.
3) Though the product has been manufactured in compliance with the Federal performance Standard 21 CFR Subchapter J(DHHS), it is
very important when servicing to avoid being exposed to excessive microwave radiation. All the repairs should be performed in
accordance with the procedures described in this manual.
4) Use only the identical parts as listed in the parts list of this manual in order to comply with the Federal performance Standard 21 CFR
Subchapter J(DHHS).
5) In the event of suspected imcrowave energy leakage in excess of 5mW/cm2, please notify;
CENTRAL SERVICE CENTER
6) Repair microwave oven at no charge to the owner for excessive microwave emission levie.
7) Ascertain the cause of the excessive leakage and instruct the owner not to use the unit until the oven has been brought into
compliance.
8} If the oven is operated with the door open, please advise the owner not to use the oven and contact the manufacturer and CDRH
immediately.
9) There are special components used in the microwave oven which are important for safety. These parts are marked with a on the
replacement parts list. It is essential that these critical parts should be replaced only whith the manufacture's specified parts to
prevent microwave leakage, shock, fire, or other hazards. Do not modify the original design.
1-2. Servicing Precaution ( = )
PRECAUTIONS TO BE OBSERVED BEFORE AND DURING SERVICING TO AVOID
OPOSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY
a) Do not operate or allow the oven to be operated with the door c). Before turning on the microwave power for any service test or
open. inspection within the microwave generating compartments,
b} Make the following safety checks on all ovens to be serviced check the magnetron, wave guide or transmission line, and cavity
before activating the magnetron or other microwave source, and for proper alignment, integrity and connections.
make repairs as necessary: d}. Any defective or misadjusted components in the interlock,
(1) Interlock operation monitor, door sea!, and microwave generation and transmission
{2} Proper door closing systems shall be repaired,replaced, or adjusted by procedures
(3} Seal and sealing surfaces (arcing, wear, and other damage} described in this manual before releasing to the owner.
{4} Damage to or loosening of hinges and latches e}. A microwave teakage check to verify compliance with the
(5) Evidence of dropping or abuse. federal performance standard should be performed on each oven
prior to release to the owner.
2. SPECIFICATIONS
——
SPECIFICATIONS
TIMER
99
MINUTES
90
SECONDS
POWER
LEVEL
|
ON
TIME
|
oF
TIME
POWER SOURCE 230V 50Hz, AC a ae i
POWER CONSUMPTION MICROWAVE : 1,500W 10% | SOW 4sec | 26sec
MAX : 2,950W 20% | 180W | 7sec | 23sec
GRILL: 1,400W 30% | 270W | 10sec | 20sec
CONVECTION : 1,450W 40% | 360W | 13sec} 17sec |-
OUTPUT POWER FROM SOW TO S00W (10 LEVEL POWER) a 50% | 450W | 16sec | 14sec
{IEC-705 TEST PROCEDURE) 60% |} 540W | 19sec] 11sec
OPERATING FREQUENCY 2,450MHz 70% | 630W | 22sec | B8sec
MAGNETRON OM? 80% | 720W | 25sec} 5sec
COOLING METHOD COOLING FAN MOTOR 90% | B10W | 28sec | 2sec
OUTSIDE DIMENSIONS 547(W) x 339(H) x 487{D) 100% | SO0CW | 30sec! Osec
3. COMPARING CHART
RE-1310T RE-1320R
RE-1330F
MORE/LESS
AUTO COOK/DISH
AUTO DEFROST
TIME COOK
POWER LEVEL
CONVECTION
GRILL
MICROWAVE+CONVECTION
MICROWAVE+GRILL
CRUSTY REHEAT
ROAST SPIT
4. CONTROL PANEL
RE-1300C/RE-1320C
~xKOOO0 00000 —~O00000 0000 ox~OO0O 000 000
RE-1310C/RE-1330C
900 0O0o 0000 00
NEW CONTROL PANEL
