Samsung RF217AB - Reassembling the Freezer Door (Drawer Type); Drawer Type Freezer Door Reassembly Steps; Reassembling the Freezer Door (Swing Type); Swing Type Freezer Door Reassembly Steps

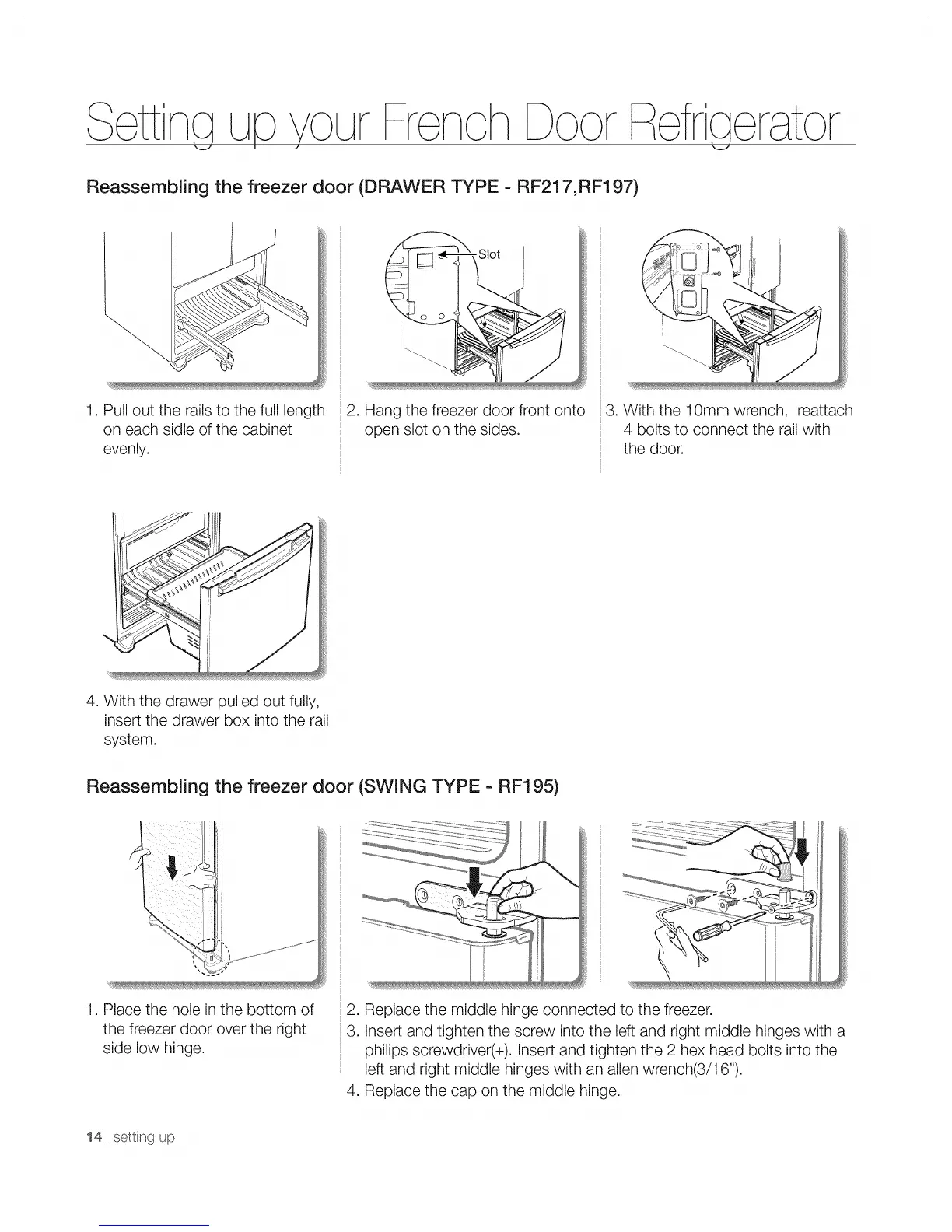

Reassembling the freezer door (DRAWER TYPE - RF217,RF197)
1. Pull out the rails to the full length
on each sidle of the cabinet
evenly.
2. Hang the freezer door front onto
open slot on the sides.
3. With the 10mm wrench, reattach
4 bolts to connect the rail with
the door.
4. With the drawer pulled out fully,
insert the drawer box into the rail
system.
Reassembling the freezer door (SWING TYPE - RF195)
1. Place the hole in the bottom of
the freezer door over the right
side low hinge.
2. Replace the middle hinge connected to the freezer.
3. Insert and tighten the screw into the left and right middle hinges with a
philips screwdriver(+). Insert and tighten the 2 hex head bolts into the
left and right middle hinges with an allen wrench(3!16").
4. Replace the cap on the middle hinge.
14 settiqg up
