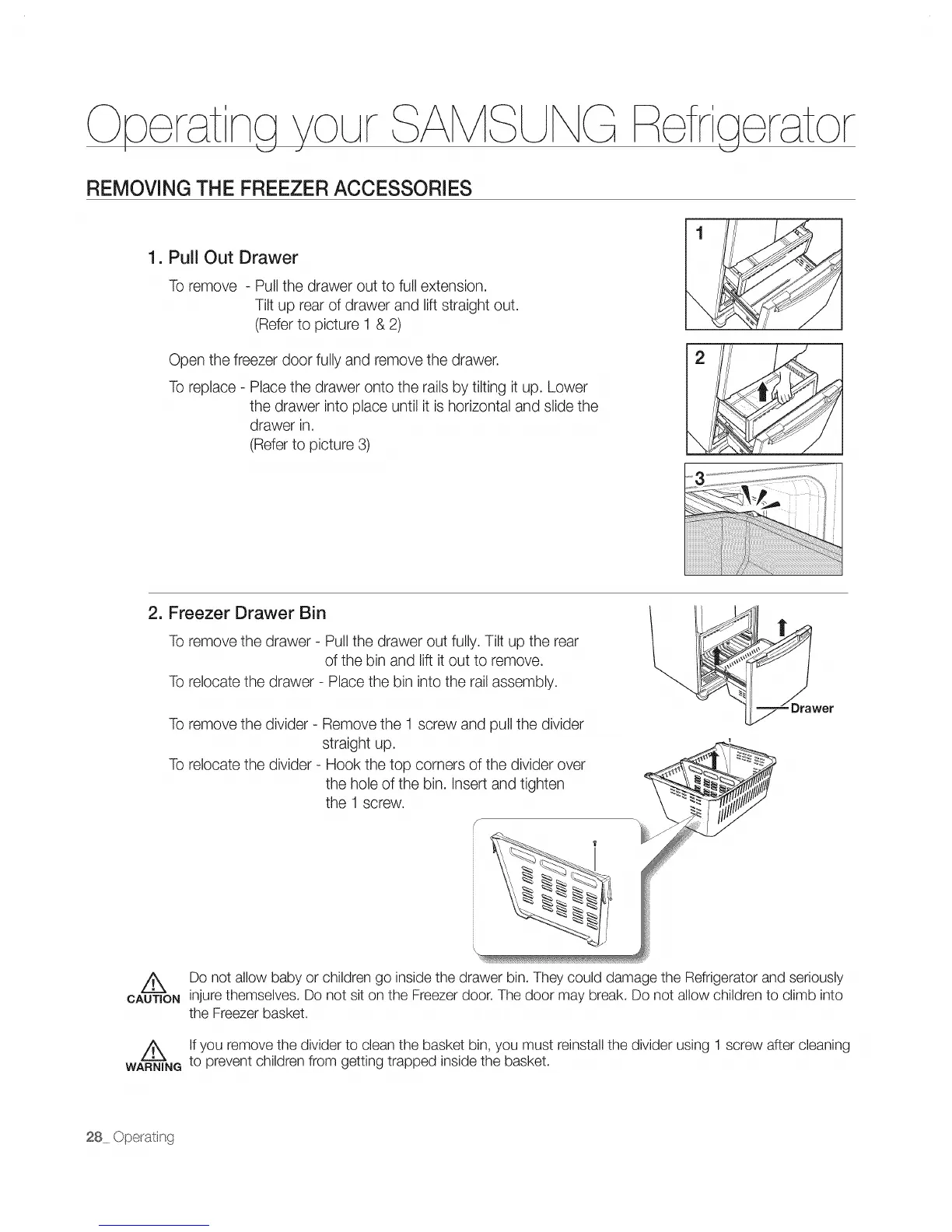

REMOVING THE FREEZER ACCESSORIES
1. Pull Out Drawer
To remove - Pull the drawer out to full extension.
Tilt up rear of drawer and lift straight out.
(Refer to picture 1 & 2)
Open the freezer door fully and remove the drawer.
To replace - Place the drawer onto the rails by tilting it up. Lower
the drawer into place until it is horizontal and slide the
drawer in.
(Refer to picture 3)
2. Freezer Drawer Bin
To remove the drawer - Pull the drawer out fully. Tilt up the rear
of the bin and lift it out to remove.
To relocate the drawer - Place the bin into the rail assembly.
I "1
i_-"_'_ Drawer
To remove the divider - Remove the 1 screw and pull the divider
straight up.
To relocate the divider - Hook the top corners of the divider over
the hole of the bin. Insert and tighten
the 1 screw.
//_k. Do not allow baby or children go inside the drawer bin. They could damage the Refrigerator and seriously
CAUTION injure themselves. Do not sit on the Freezer door. The door may break. Do not allow children to climb into
the Freezer basket.
Z_ Ifyou remove the divider to clean the basket bin, you must reinstall the divider using 1 screw after cleaning
WARNINGto prevent children from getting trapped inside the basket.
