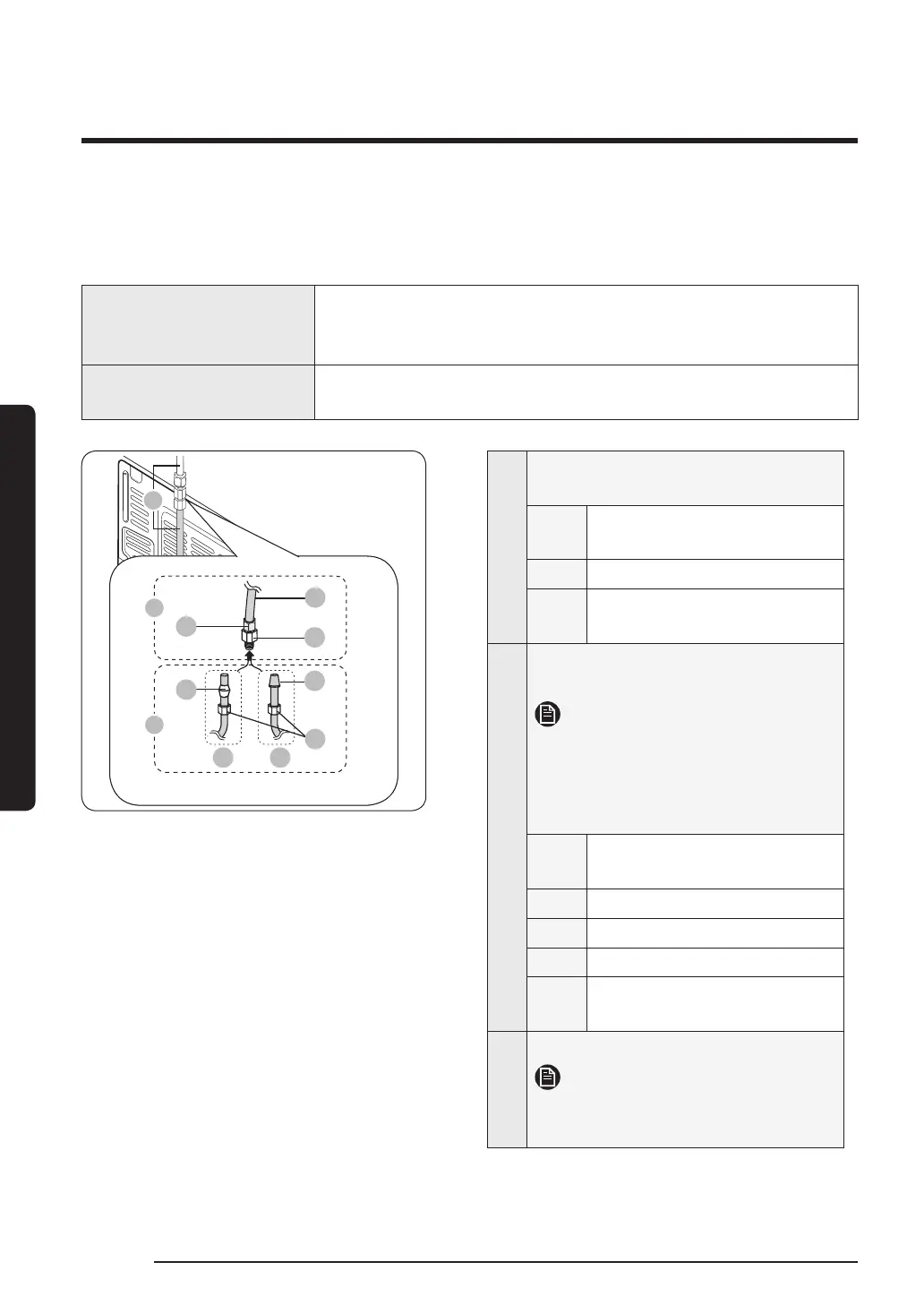

Connect the water supply line to the refrigerator
There are several items you must purchase to complete this connection. You may nd
these items sold as a kit at your local hardware store.
Copper Tubing
•
1
/4" copper tubing
•
1
/4" compression nut (1 pc)
• Ferrule (2 pcs)
Plastic Tubing
•
1
/4" plastic tubing with molded end (Bulb)
•
1
/4" compression nut (1 pc)
01
04
B-1 B-2
02
03
05
06
C
A
B
A The water line from the
refrigerator
01
Compression nut (
1
/4”)
(Assembled)
02 Plastic tubing (Assembled)
03
Compression tting
(Assembled)
B The water line from the main
water supply
NOTE
You can choose the water line
from the main water supply to
be copper tubing (B-1) or plastic
tubing (B-2).
B-1
Copper tubing (Not
supplied)
B-2 Plastic tubing (Not supplied)
04 Ferrule (Not supplied)
05 Molded end (Bulb)
06
Compression nut (
1
/4”) (Not
supplied)
C Water line
NOTE
Assemble water lines must be kept
straight.
