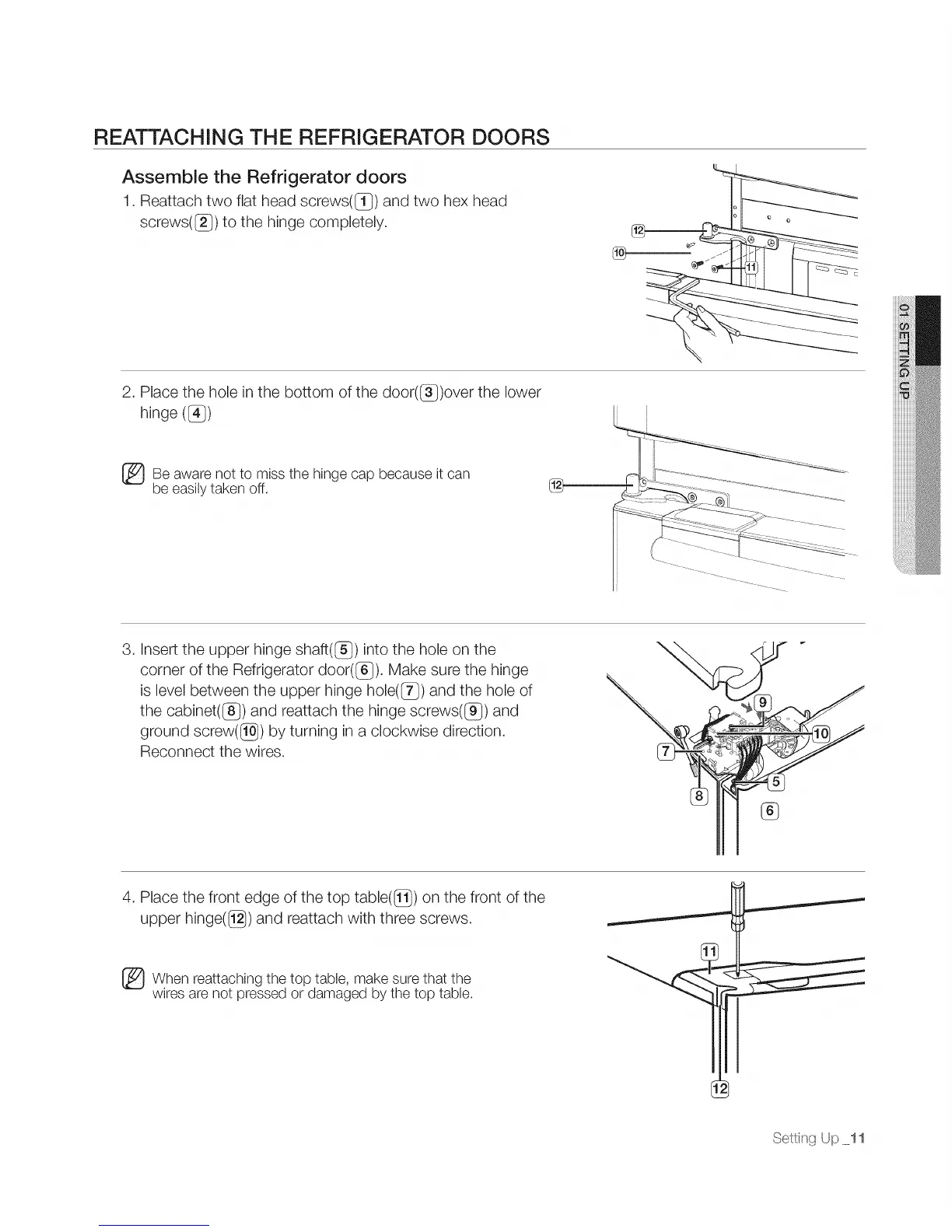

REATTACHING THE REFRIGERATOR DOORS
Assemble the Refrigerator doors
1. Reattach two flat head screws((_) and two hex head
screws((_) to the hinge completely.
2. Place the hole in the bottom of the door((_)over the lower
hinge ((_)
_Be aware not to miss the hinge cap because can
it
be easily taken off.
@
3. Insert the upper hinge shaft((_) into the hole on the
corner of the Refrigerator door(G ). Make sure the hinge
is level between the upper hinge hole(G ) and the hole of
the cabinet((_) and reattach the hinge screws(G ) and
ground screw((_) by turning in a clockwise direction.
Reconnect the wires.
\
®
4. Place the front edge of the top table(j_}) on the front of the
upper hinge(G ) and reattach with three screws.
_When reattaching the top table, make sure that the
wires are not pressed or damaged by the top table.
Sett]g Up 11
