Samsung RF266 - Freezer Drawer Leveling

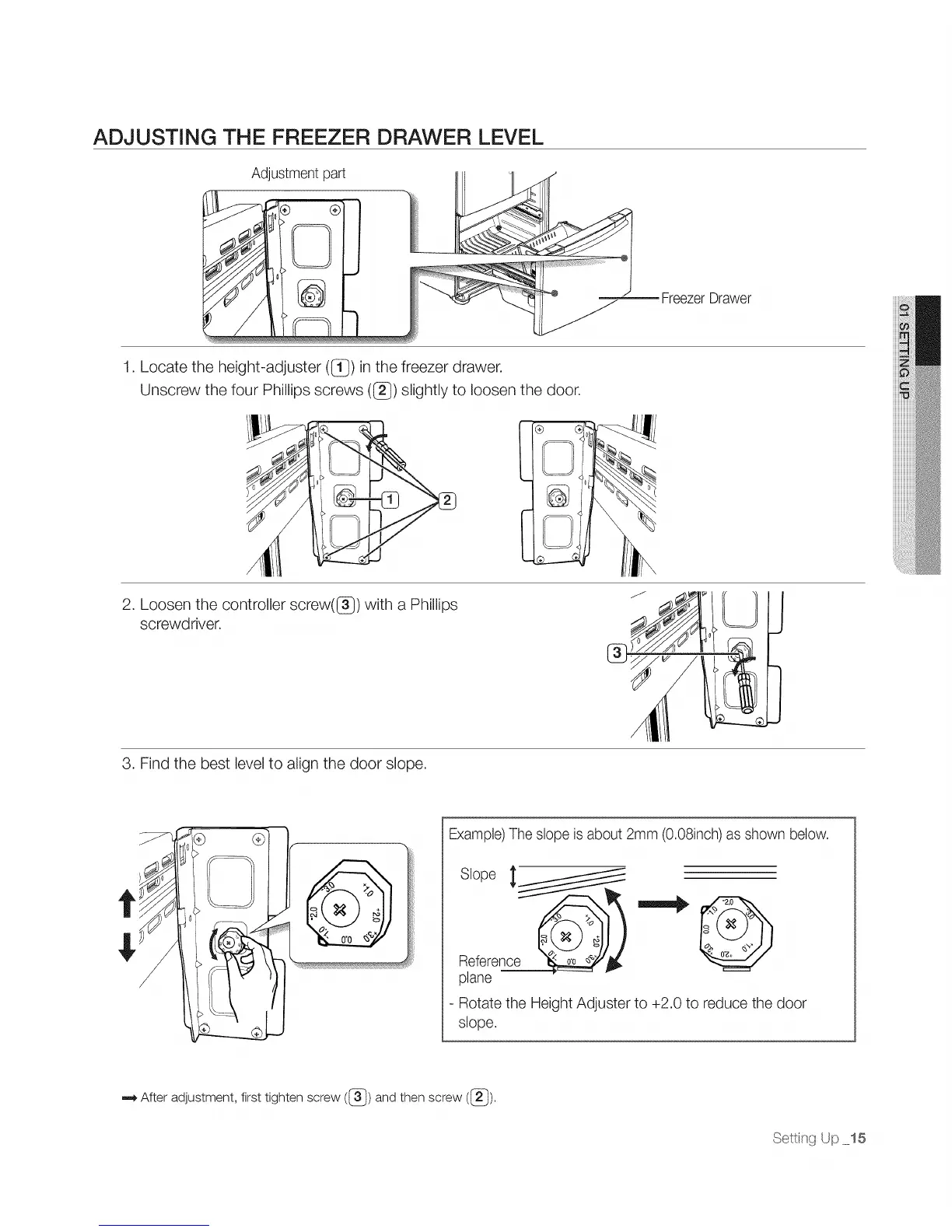

ADJUSTING THE FREEZER DRAWER LEVEL
Adjustment part
1. Locate the height-adjuster (@) in the freezer drawer.
Unscrew the four Phillips screws (l_) slightly to loosen the door.
FreezerDrawer
2. Loosen the controller screw((_) with a Phillips
screwd river.
3. Find the best level to align the door slope.
Example) The slope is about 2mm (0.08inch) as shown below.
Slope __
Reference ,__
plane
- Rotate the Height Adjuster to +2.0 to reduce the door
slope.
-,_ After adjustment, first tighten screw (_}) and then screw (_[]).
Setti%_ Up 15
